Mindray M6 User Manual

12-36 Probes and Biopsy

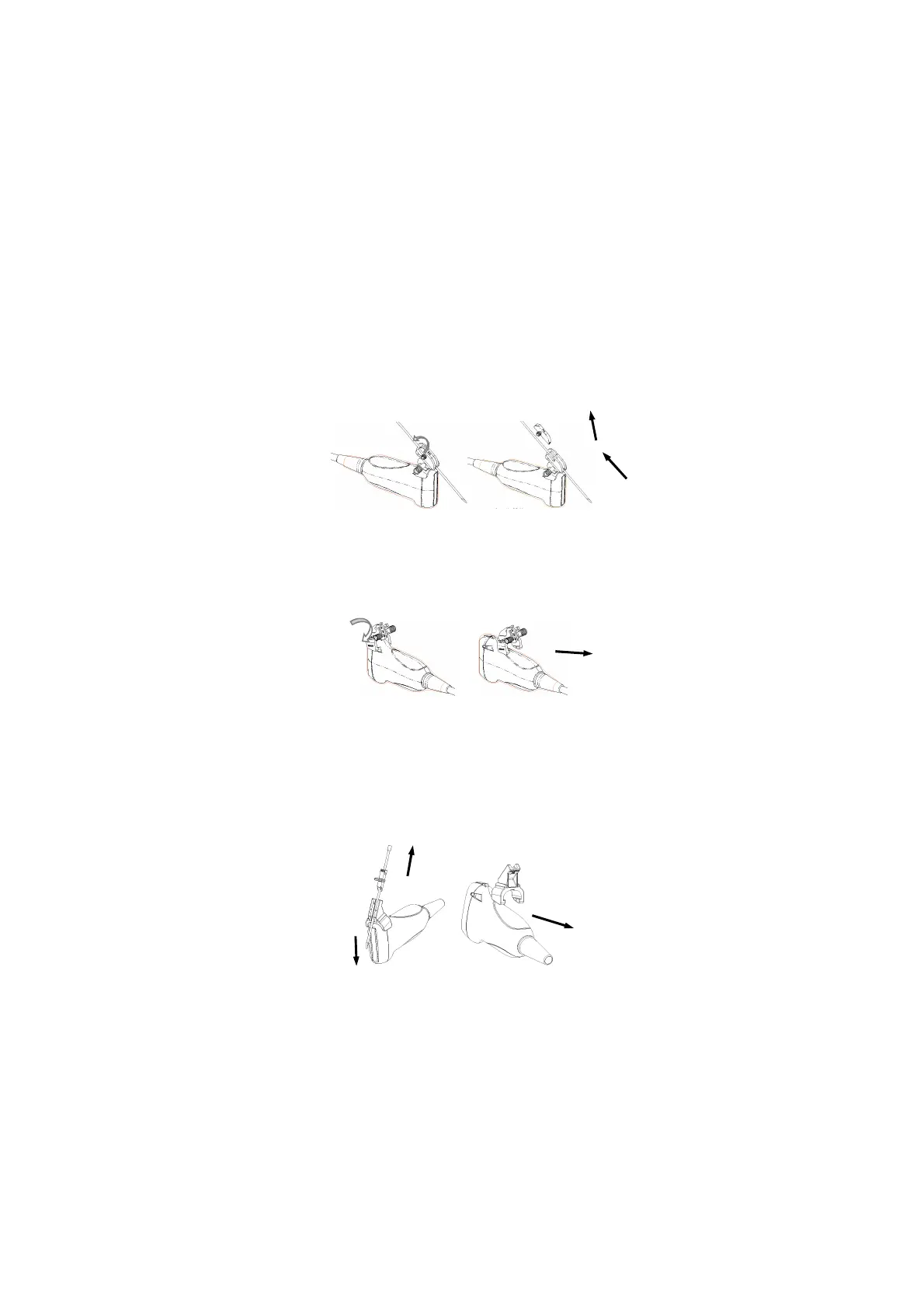

12.2.8 Removing the Needle-guided Bracket
 NGB-004
Hold the probe in the left hand, unscrew the locking nut with the right hand to open the
retaining clamp, and then raise the needle-guided bracket to separate the locating
bulge from the locating grooves.
 NGB-005
Hold the probe and the needle-guided bracket, open the grip knob of the
needle-guided bracket.
 NGB-006/ NGB-007
 Metal needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guided bracket and the probe from the
needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the probe.
 Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the
needle.
(3) Remove the support of needle-guided bracket from the probe.
 NGB-009
(1) Turn on the knob of fixing the needle and separate the needle from the
needle-guided bracket.
(2) Turn on the knob of fixing guiding block and remove the guiding block from the
hole of installing guiding block.
(3) Turn on the knob of fixing needle-guided bracket and remove the needle-guided
bracket.

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
