Wireless LAN A-3
A.2 To Install Drive for Wireless Adapter
You can install drive for wireless adapters through the following path (take DWA-125
D-LINK as an example):
a) Acquire the License file from the service engineer.
b) Press <Setup> to enter the Setup menu.

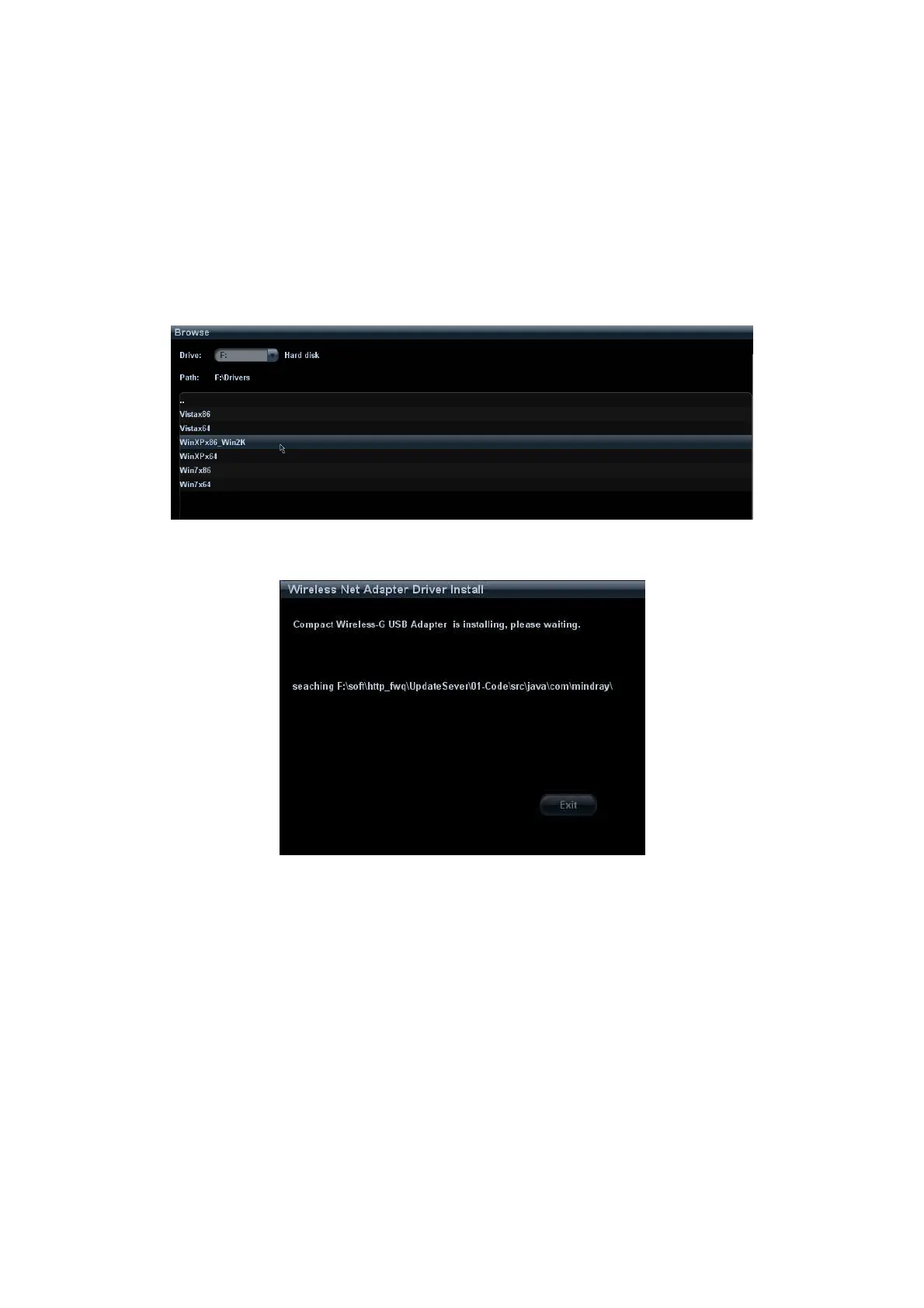

c) Move the cursor onto [Network Preset], select [Setup Wireless Driver] to
open the screen, as shown in the figure below:
d) Select the path for installing the drive and click [OK] to pop up the driver
install dialogue box.
e) The wireless LAN manager icon will display in the lower right corner of the
toolbar region after the installation succeeds.

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
