Exam Preparation 4-9
Select the exam mode (when more than one probe are connected):

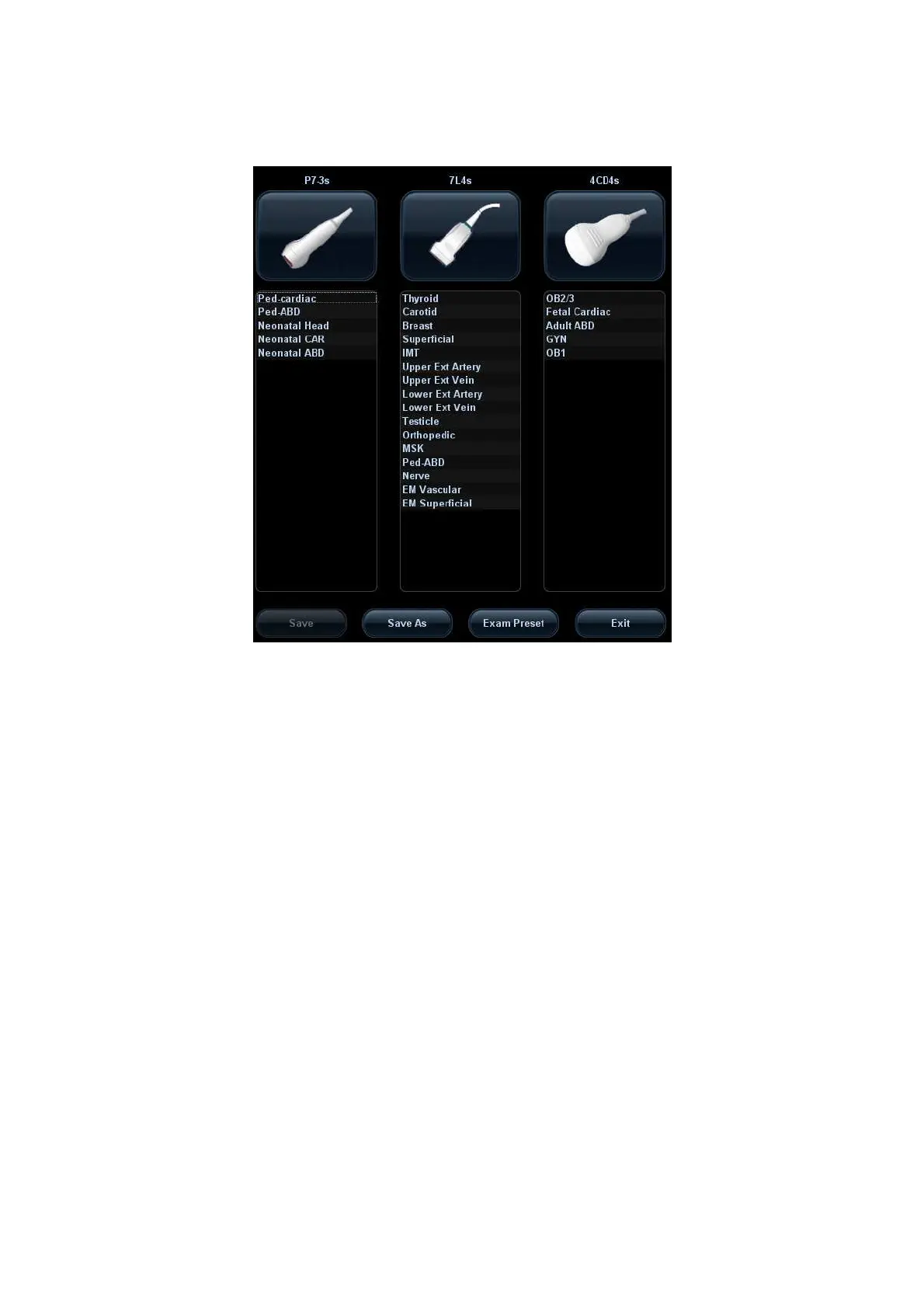

(1) Press <Exam> to open the following dialog box.
(2) Roll the trackball and press <Set> to select the exam mode, and use the left/right
keys of the soft menu controls to switch the probe.
To save the current settings for the current exam mode quickly:
(1) Press <Exam> to open the dialog box.
(2) Click [Save], to save the image parameters of the current image mode as setup
data. A dialogue box pops up to prompt you that the operation will cover the
current image preset data.
(3) Click [Save as] to save the current image parameter, measurement, comments
and body mark settings to the designated exam mode.
Click [Exam Preset] to enter the exam preset screen. For exam preset, please refer to
“14.2 Exam Preset”.
Exit:
Click [Exit] or press <Exam> to exit, press <B>, <Freeze> or <ESC> can also exit the
screen.
