To assign a wall motion score (WMS):
1. Select a colored number in the bottom-right area of the screen.
The meanings and colors used in segments are listed in the table below.
Score Meaning Color
1 Normal Green
2 Hypokinesis Yellow
2.5 Severe Hypokinesis Khaki
4 Dyskinesis Red
5 Aneurysm Purple
2. Roll the trackball to select the value and then click the target segments, then the segment is assigned
with a value.
3. Repeat step 2 to perform value assign for all segments.
To assign a normal wall motion score (WMS) to all currently displayed views:
Select [Set All Normal] on the touch screen.
To assign a normal wall motion score (WMS) to the currently selected view:
Select [Set Current Normal] on the touch screen.
5.15.5 Maintenance and Protocol
5.15.5.1 Maintenance

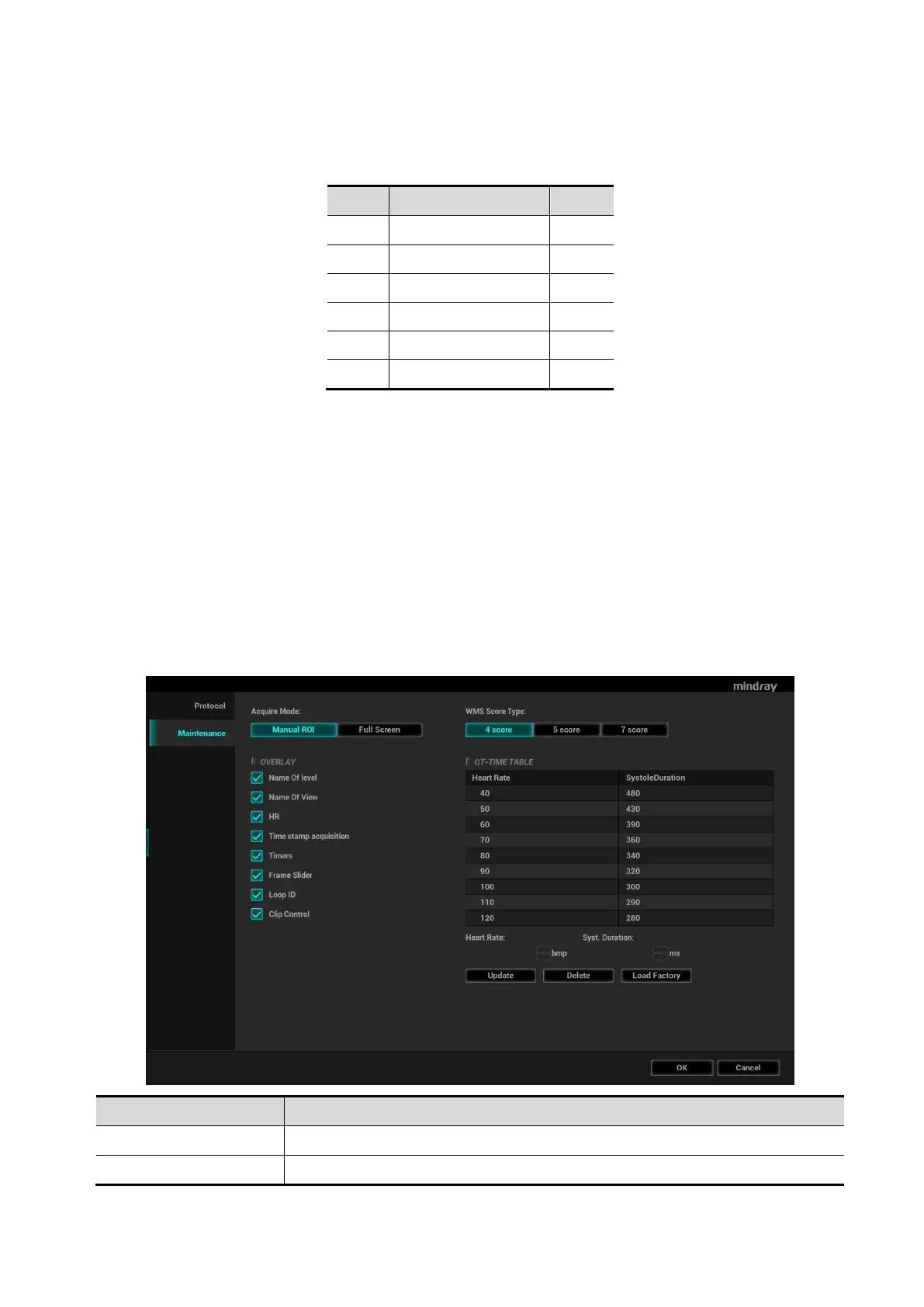

Select “<F10 Setup>[Stress Echo][Maintenance]” to enter the screen.
Acquire mode Set the type of ROI: manual ROI or full-screen.
Overlay Select the items to be labeled on each loop.
