5-134 Image Optimization
5.17.7 Respiratory Compensation
Note Fusion RESP Component (Fusion Respiration Component) is an option.
Configure Fusion RESP Component (optional software), one fusion imaging sensor,
one motion sensor support (optional hardware) before enabling Fusion RESP
Component. See also Chapter 2.4.3 Options. Stick respiration sensor to the patient’s
abdomen before entering Fusion Imaging mode.
Respiration Compensation sets a motion model for the movement regularities of the liver, and compensates
the CT/MR/PET/freehand image in real time. The fusion dynamic accuracy is enhanced apparently.

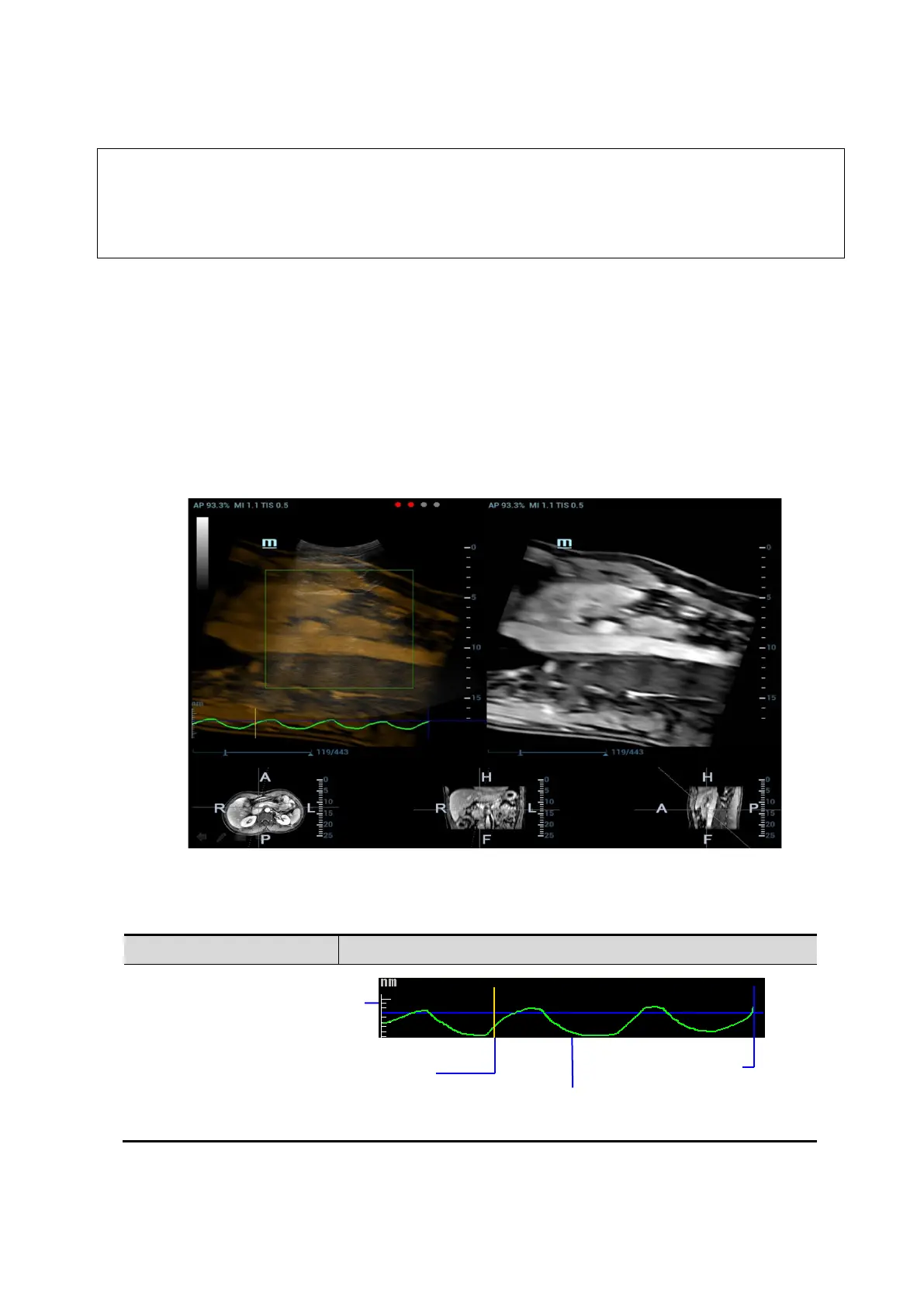

1. Enter Fusion Imaging mode. Tap [Display Resp Curve] to activate it (it is highlighted by default). The
respiratory curve appears on the image.
2. Keep the patient breathing regularly. Tap [Motion Modeling] to capture the cine until the respiration
curve becomes stable. Keep the probe still when capturing the cine. The progress bar appears on
the screen. The ultrasound cine plays automatically after the capturing is finished.
Note: the Ultrasound System selects one premium phase of respiration curve automatically after
the capturing is finished. It is prepared for the motion modeling. You can set the start frame and
end frame to select one phase of the respiration curve.
Respiration Curve Description:
Curve Description
he respiration depth in
-time respiration
To Next Page
