11-14 DICOM/HL7
Name Description
Exit
Click to exit the setup screen.
11.1.3.7 HL7 Query Service Preset
HL7 refers to the medical information exchange protocol on the seventh layer (application layer) of the
Model of the Open System Interconnection published by ISO. It is established by Health Level Seven
International in 1987. HL7 is mainly used for standardizing the communication between HIS/RIS system
and the other devices, reducing the information interconnection costs among hospitals, and improving
the data usability for hospital information system.
The protocol version that the ultrasound system supports: V2.3, V2.4, V2.5, V2.6.

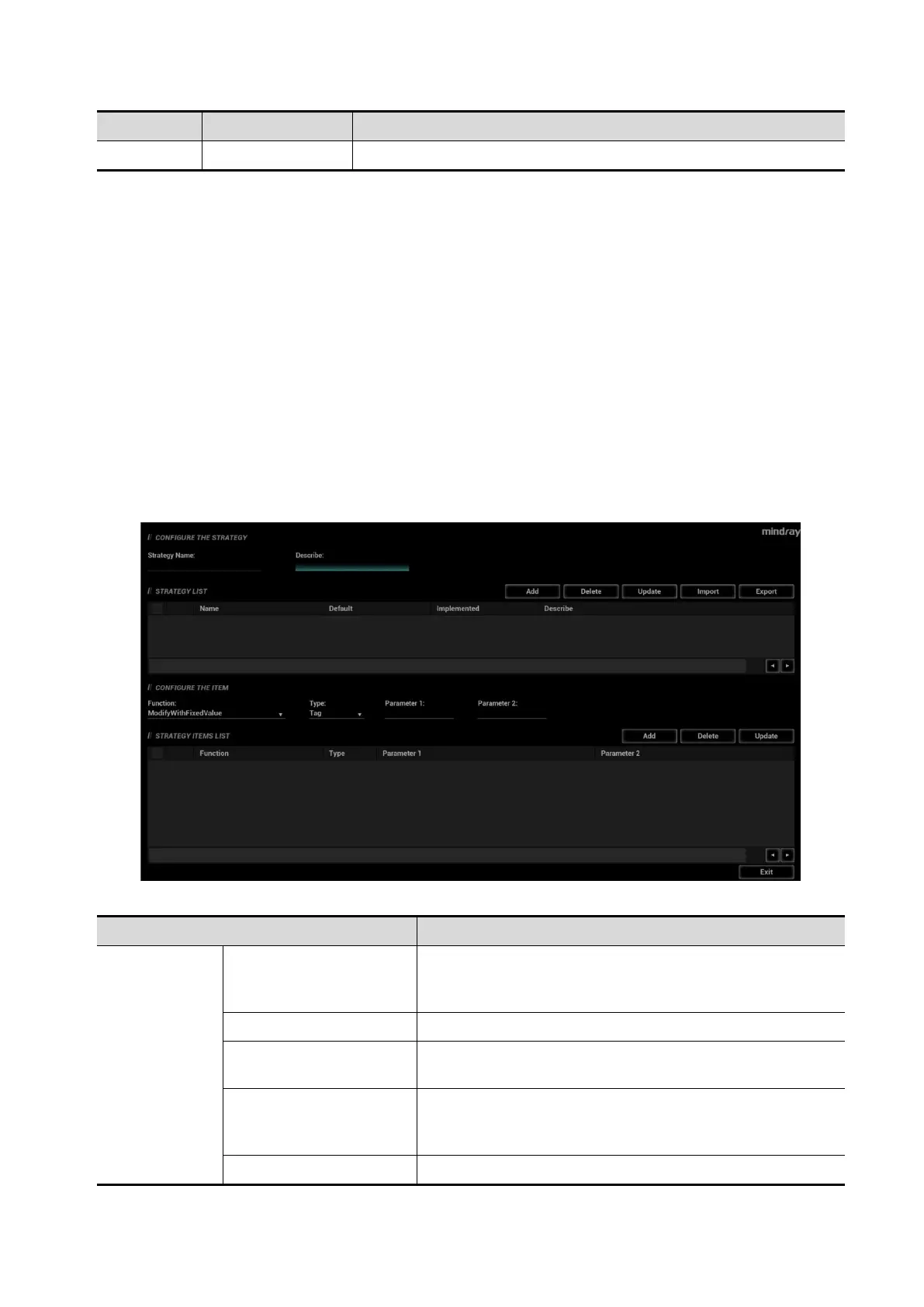

1. Select [Setup][DICOM/HL7][DICOM Service Setting][HL7Query] to enter the page.
2. Select device in the drop-down list, the available devices are services already set in the system,
enter the information.
 Click [Add] to add the service to the Service list;
 Select an item in the service list, change the parameters in the above area, and click [Update]
to update the item in the service list; click [Cancel] to cancel changing.
 Select an item in the service list, and click [Delete] to delete the service.
 Select an item in the service list, and click [Default] to set the server to be the default service.
HL7 service setting for Worklist is described as follows:
Name NOTE
Configure New
service
Device Name
After you set the server (s) in DICOM Server Setting
screen, the name (s) will appear in the drop-down list,
select the name of the Worklist server.
Service Name Default is server-HL7Query, and it can be modified.
AE Title
Application Entity title. Here, it should be consistent with
that of the HL7 server.
Port
DICOM communication port, 104 by default. Here, the
port should be consistent with that of the HL7 server
port.
Maximum Retries Reserved feature.
