52 Operating Instructions Combics Complete Scales
Operating Design

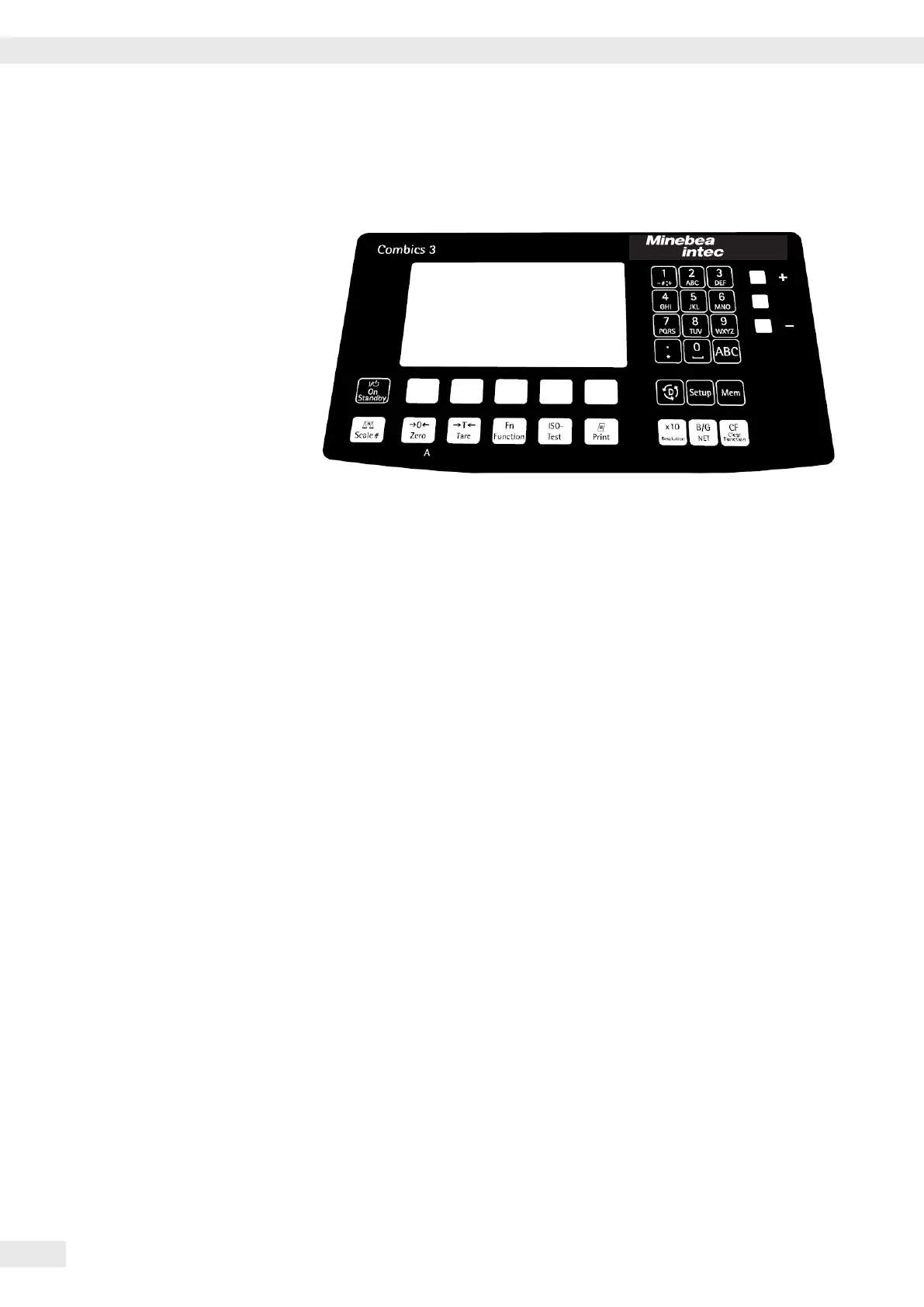

Weighing Mode Operating Design
Labeled Keys
Some keys have a second function, activated by pressing and holding the key for
over 2 seconds. Whether a function is available depends on the indicator operating
state and operating menu settings.
e On/O key
y standby is displayed in Standby mode.
n If a second weighing platforms is connected, this key toggles the display between
the two readouts.
( – Press briey: Zero
– Press briey: cancels calibration/adjustment
– Press longer than 2 seconds: displays the adjustment/conguration counter
) Tare the scale: press briey.
k Displays the second weight unit or SQmin (depending on the settings, see
“Operation,“ “SQmin Function“).
J Starts calibration or adjustment.
p – For printing:
Press briey.
– Prints GMP footer:
Press longer than 2 seconds.
K Toggles unit between normal and 10-fold higher resolution.
L Toggles the display between
gross value (net value plus tare) and
net value (gross value minus tare).
c – Quits an application or deletes an input character:
Press the key less than 2 seconds.
– Deletes the entire input string:
Press the key longer than 2 seconds.
Operating
Design
You can use the Combics 3 to
record weight values from 1 to
3 weighing platforms, calculate
and display weight values through
application programs, and assign
IDs to the samples weighed.
Congure the indicator rst, using
the Setup menu for the desired
application program (printer
settings, etc.). Then you can begin
weighing.
When a key is pressed that does
not have an active operating mode
function, an acoustical signal
(double beep) sounds and the
message “——-—“ is displayed for
2 seconds. The display then
returns to the previous screen
content.
