3
1
4
2
6
5

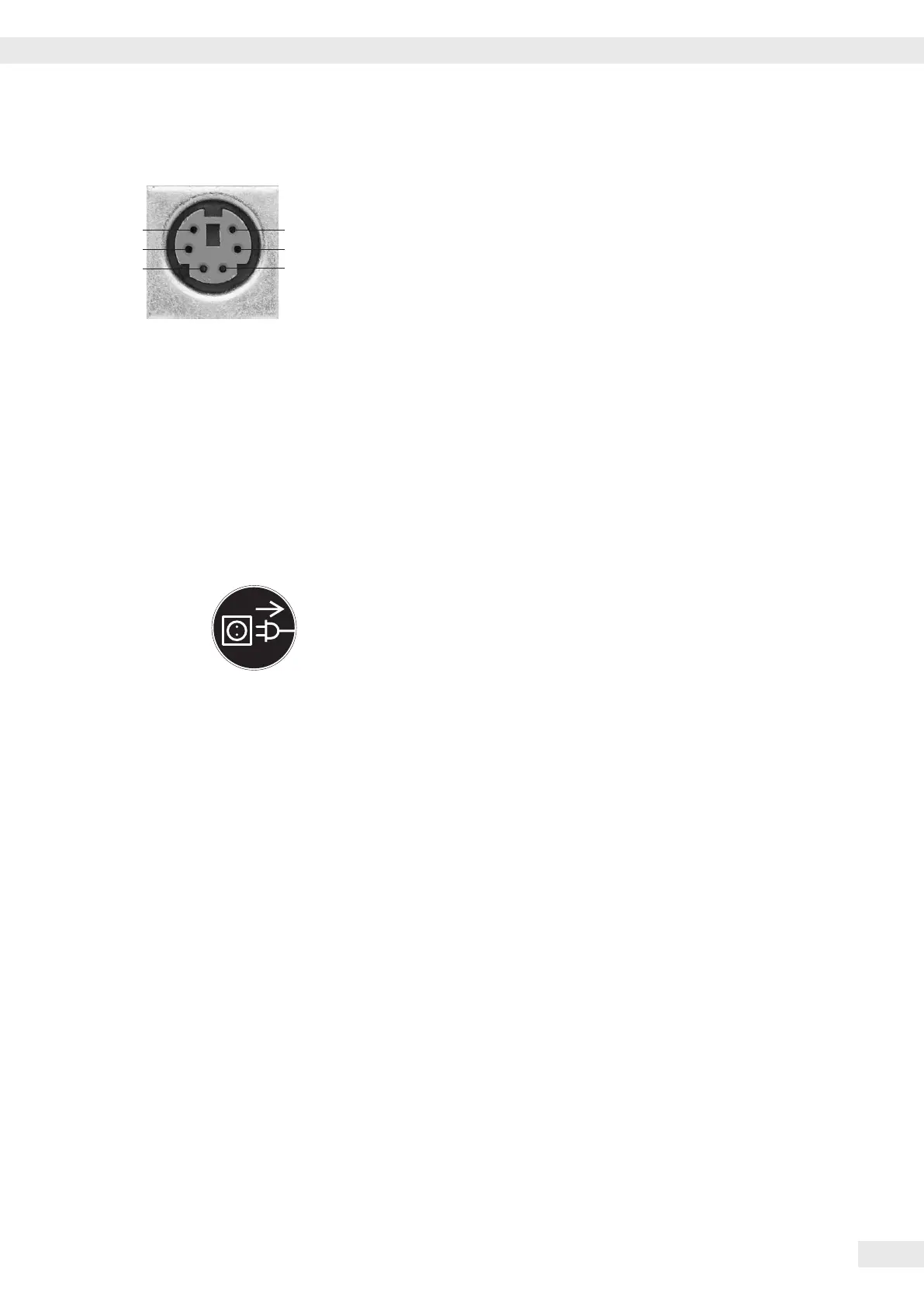

Interface Pin Assignment Chart PS2
Model type CAW3P | CASLE-SPC (IP44 protection)
PS2 female connector:
6-pin miniature socket PS2 (Mini-DIN)
Recommended interface connector:
6-pin miniature socket PS2 with integrated shielded cable clamp assembly
Pin assignment:
Pin 1: Keyboard data (data interface cable)
Pin 2: Not assigned
Pin 3: Internal ground (GND)
Pin 4: +5V switched
Pin 5: Keyboard clock
Pin 6: Not used
Connecting a Bar Code Scanner
Accessory YRB05FC
t Disconnect the indicator from AC power (unplug the AC adapter)
For CAW3P | CASLE-SPC models:
t Connect the barcode scanner via PS/2.
For CAW3S | CAS3 models:
t Pin assignment, see “Connecting Peripheral Devices“ (implemented via the
YCC02-BR02 connecting cable or as option M8) on page 14.
NOTE: This equipment has been tested and found to comply with the limits pur-
suant to part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
these instructions, may cause harmful interference to radio communications. For
information on the specific limits and class of this equipment, please refer to the
Declaration of Conformity. Depending on the particular class, you are either required
or requested to correct the interference. If you have a Class A digital device, you
need to comply with the FCC statement as follows: “Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.“
Getting Started
Operating Instructions Combics Complete Scales 19
