Minebea Intec CAS-SPC Series - J Key Function Allocation; Function Allocation for Calibration;Adjustment

Function Allocation of the allocation
for the J Key for Calibration/Adjustment
Purpose The J key is used for the calibration/adjustment function. Key settings can be
changed when the Service mode is activated:

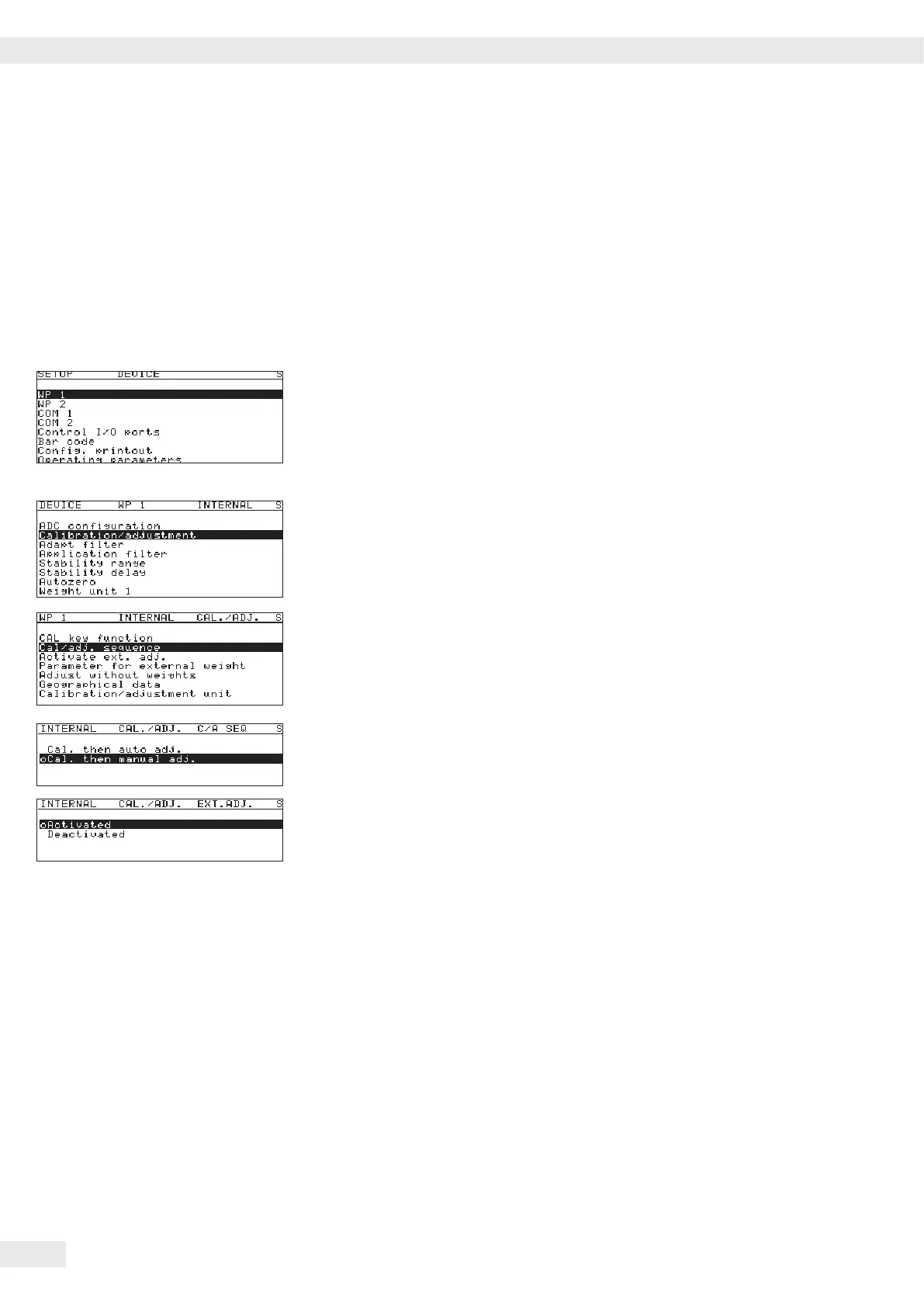

Procedure t Remove the cap.
t Slide the menu access switch to the left (= “open“ position).
t Activate the Service mode, see “Service Mode.“
t Select weighing platform “WP 1“ in the “Device Parameters“
menu item.
t If the “Internal“ setting is not already activated (marked by “o“), select
the setting using the “Q“ or “q“ soft key and conrm with “O.“
y The menu for the “WP-1 INTERNAL“ device parameters is displayed.
t Use the “Q“ or “q“ soft key to select and open the “Calibration/
adjustment
“ menu using “O.“
t Use the “O“ soft key to open the “Cal/adj. sequence“ menu.
t Use the “Q“ or “q“ soft key to select the “Cal. then manual
adj.
“ menu (factory setting) and conrm with the “l“ soft key.
t Use the “o“ soft key to go to the next menu level.
t Use the “O“ soft key to open the “Activate ext. adj.“ menu.
t Use the “Q“ or “q“ soft key to select the “Activated“ menu item
(factory setting). Not for a veriable conguration.
t Geographical data is not displayed during calibration/adjustment (factory
setting).
To display geographical data in the Device parameters menu, open the
“Operating parameters“ submenu.
Menu item “Display geogr. data > On“.
38 Operating Instructions Combics Complete Scales
Configuring Weighing Platforms
