Entering Adjustment and Linearization Weights
Purpose Entering adjustment and linearization weights.
Procedure See also “Calibration and Adjustment“ in the chapter called “Operation“.
t Remove the cap.
t Slide the menu access switch to the left (= “open“ position).
t Activate the Service mode, see “Service Mode.“
t Select weighing platform “WP 1“ in the “Device Parameters“
menu item.
t If the “Internal“ setting is not already activated (marked by “o“), select
the setting using the “Q“ or “q“ soft key and conrm with “O.“

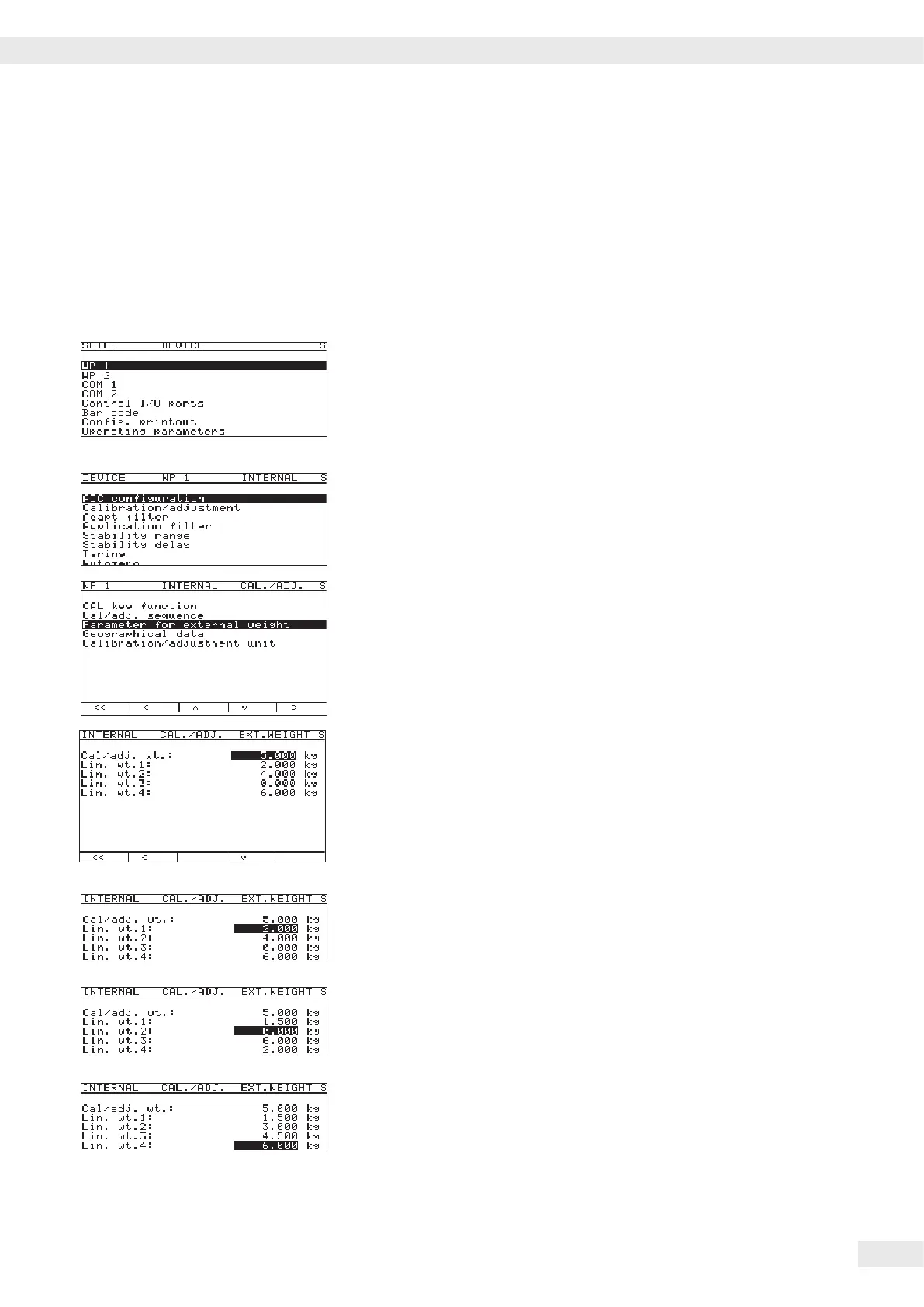

y The menu for the “WP-1 INTERNAL“ device parameters is displayed.
t Use the “Q“ or “q“ soft key to select and open the “Calibration/
adjustment
“ menu using “O.“
t Use the “Q“ or “q“ soft key to select and use “O“ to open the “Parame-
ter for external weight
“ menu.
t The rst menu item “Cal/adj. wt.:“ (for selecting the user-dened
calibration weight), is also accessible without activating the Service mode.
The values for the linearization weights “Lin.-wt. 1“ to “Lin.-wt.
4
“ can, however, only be changed in the Service mode.
y The current values for the user-dened calibration weight and the
4 linearization weights are displayed.
In this example, the value for the external, user-dened adjustment weight is
changed to 6.000 kg.
t Press 6.000 and conrm with the “l“ soft key.
y The “Lin.-wt. 1“ input eld is selected.
In this example, the value for linearization weight 1 is changed to 1.500 kg.
t Press 1.500 and conrm with the “l“ soft key.
y The “Lin.-wt. 2“ input eld is selected.
t Enter or change all linearization weights in sequence as needed.
If you do not require all linearization positions, enter “0.000“ in the unused
elds to hide these lines in the display. Conrm with the “l“ soft key after each
entry to move to the next input eld.
In the example shown here, four linearization weights have been entered
(1.5 kg, 3.0 kg, 4.5 kg and 6.0 kg).
When you close the input menu by pressing the “o“ soft key, the input values
are directly applied.
t Slide the menu access switch to the right (= “closed“ position) and reattach the
cap.
