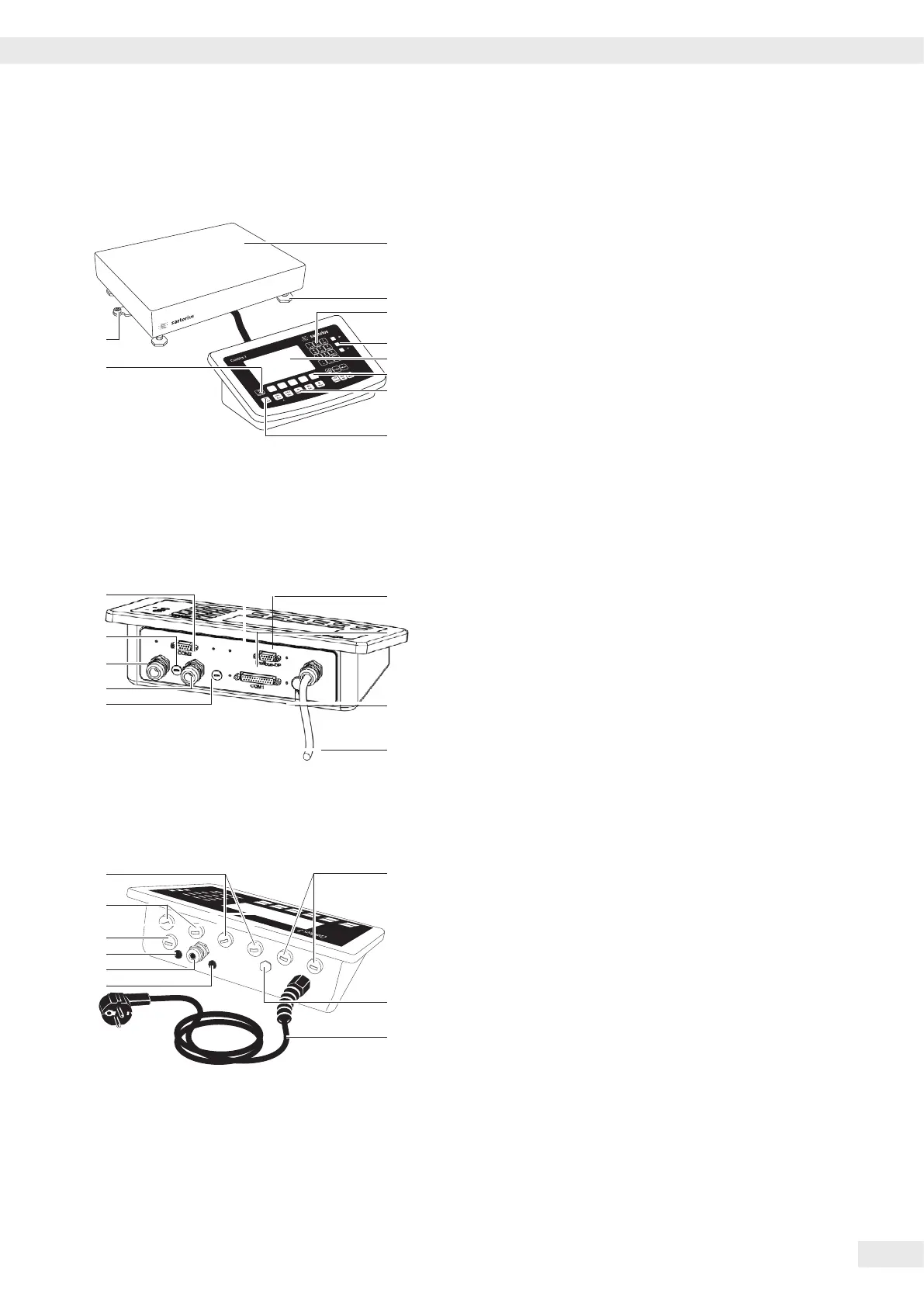

General View of the Equipment
Platform
1 Level indicator
2 Load plate
3 Leveling feet
Indicator
4 10 digit keypad for entering alphanumeric values
5 LEDs (for checkweighing and classication)
6 Display (for details, see “Operating Design“ chapter)
7 Additional function keys (see “Operating Design“)
8 General function keys: Zero, Tare, Switch function, Adjustment/
Calibration, Print/Data output
(see “Operating Design“)
9 Toggle between weighing platforms (WP)
10 On/O
Rear view of indicator:
11 “UNICOM“
Optional:
– RS-232|RS-485 or 422 interface, e.g. for:
– PC connection
– Printer connection
– Digital I/O
– 4 to 20 mA
– Probus DP
- DeviceNet
– Ethernet TCP/IP|ModBus TCP
12 RS-232 interface “COM1“
e.g. for:
– PC connection
– Printer connection
– Digital input
– Stop light output
13 “PS2“ e.g. for:
– Keyboard connection
– Barcode scanner connection
14 Power cord with country-specic plug
15 Input for menu access switch (standard or legal-for-trade mode)
for WP 1
16 Weighing platform WP 1 connection
for analog scales,
optional for “xBPI“|“SBI“ scales
17 Weighing platform WP 2 connection,
optional for analog scales or “xBPI“|“SBI“ scales
18 Input for menu access switch (standard or legal-for-trade mode)
for WP 2
19 RS-232 interface “COM2“
e.g. for:
– PC connection
– Printer connection
20 Vent valve: 1.5 Nm
