Chapter 6 Programming 6-21
Related Position Setting
-Enter PWB Origin and Mark information.

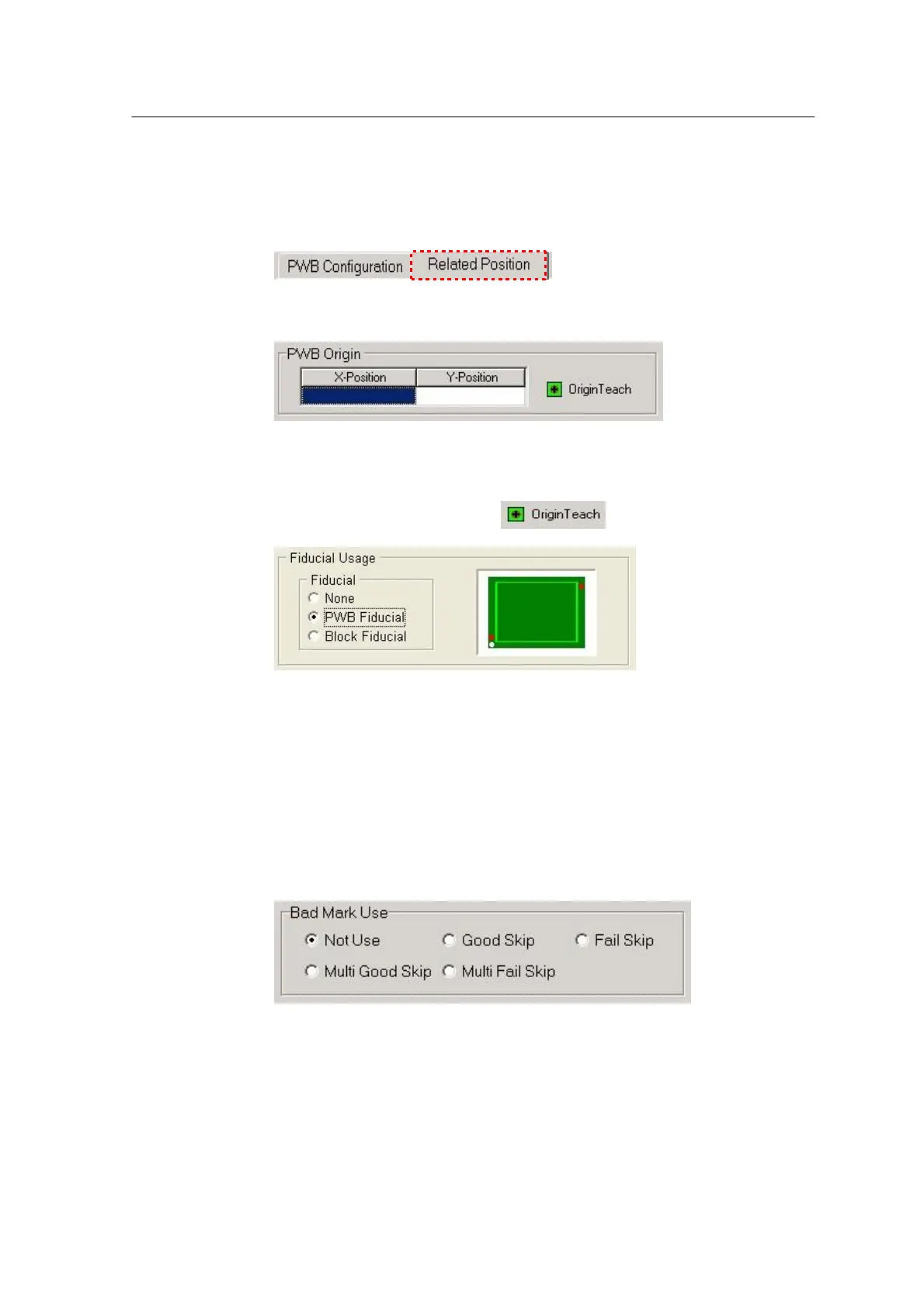

Choose the Related Position tab.
PWB Origin is the reference of placing position on PWB. The Mirae system sets the bottom left
corner to origin. Teach the origin using on
the right.
Set the information related to use of fiducial mark on PWB.
• None: Fiducial mark is not used.
• PWB Fiducial: The fiducial mark at the edge of Single or Matrix type PWB is used.
• Block Fiducial: This option is not applicable to Single PWB but used for Matrix and Non-Matrix
types only. When this option is selected, the fiducial mark in each block is recognized.
Each item of Bad Mark Use is described below:
• Not Use: Bad mark is not used.
• Good Skip: Work is skipped when the result of vision inspection on Bad mark of a block is Good.
