3-6 Mx-Series Operation Manual
to the Mirae Mx-series SMD placement systems only if the SMEMA
specification is fulfilled).
※ For a system with incompatible interface specification, present the
circuit drawings in advance.
The connector at the rear of the system is used to connect the I/O cable
of SMEMA specification (called SMEMA cable) provided by Mirae.
Turn off system power prior to connecting the SMEMA connector.
After connection, tighten the bolts to fix it.

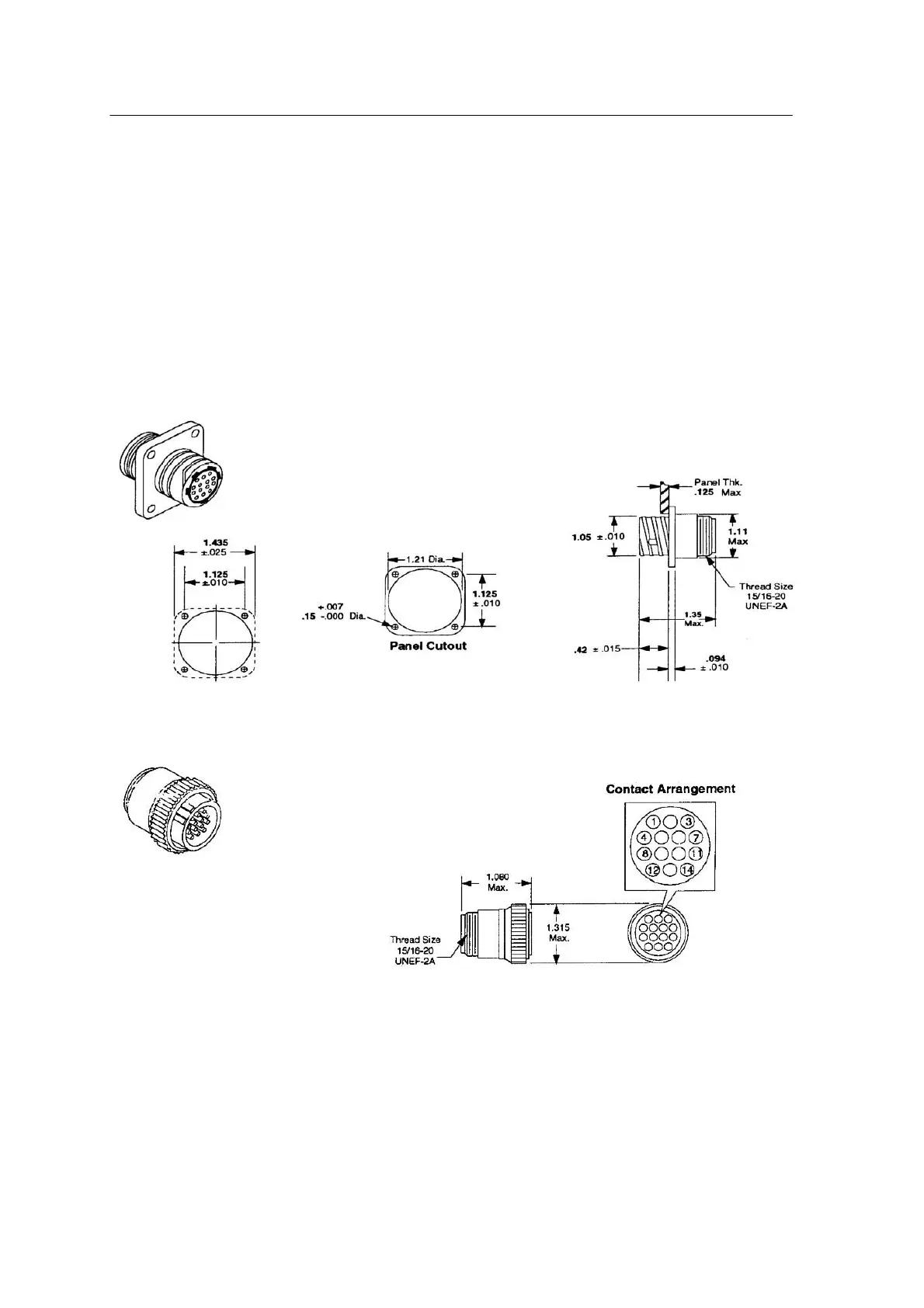

<Figure 3-5A System connector (Receptacle)>
<Figure 3-5B Cable connector (Plug)>
<Figure 3-4 가 SMEMA cable specification >
