Chapter 1 Machine Setup
1-3
Machine Setup
1) Move the MS1 (Multi-Tray Supply Unit) near the Mx series main frame.
Then, two people should lift the MS1-L, R to the height of the main frame
and carefully mount it on the machine. Make sure to remove foreign
materials from the surface of the main frame.
(The figure below shows the MS1 attached to the Mx-Series main
frame.)

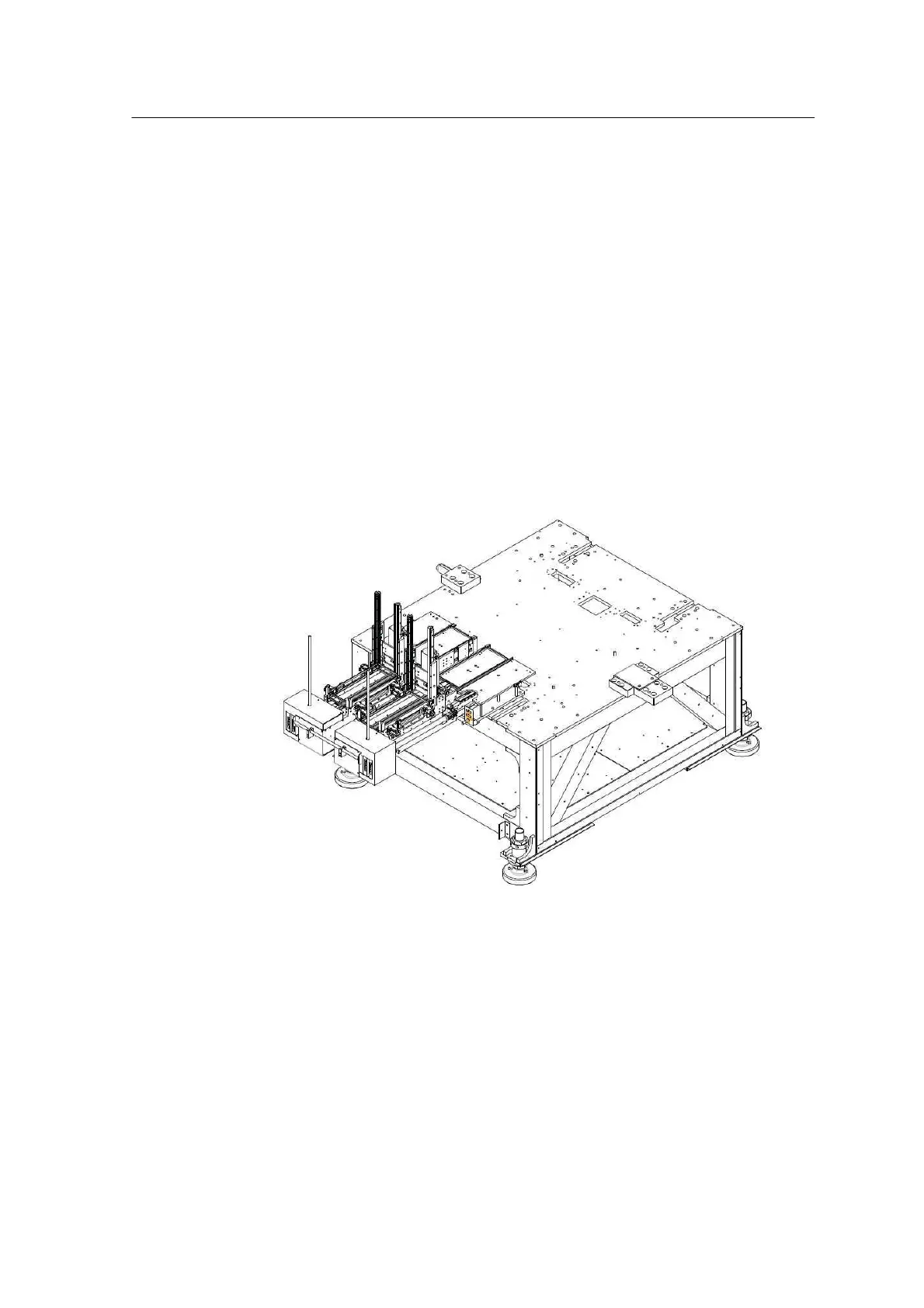

< Figure 1-2 가 MS1 ( Multi-Tray Supply Unit attached
to the Mx-Series Main
Frame )>
