Mirae Mx200 - PWB TRANSFER SYSTEM; PCB conveyer

Chapter 4 Mx-Series Unit Description 4-
7
PWB transfer PCB conveyer
system
• Structure
The PCB transfer system is configured in a conveyer divided into the three
stages: Inlet, Work and Outlet.
<Figure 4-3> and <Figure 4-4> show the 3-stage structure of single and
dual conveyers respectively.

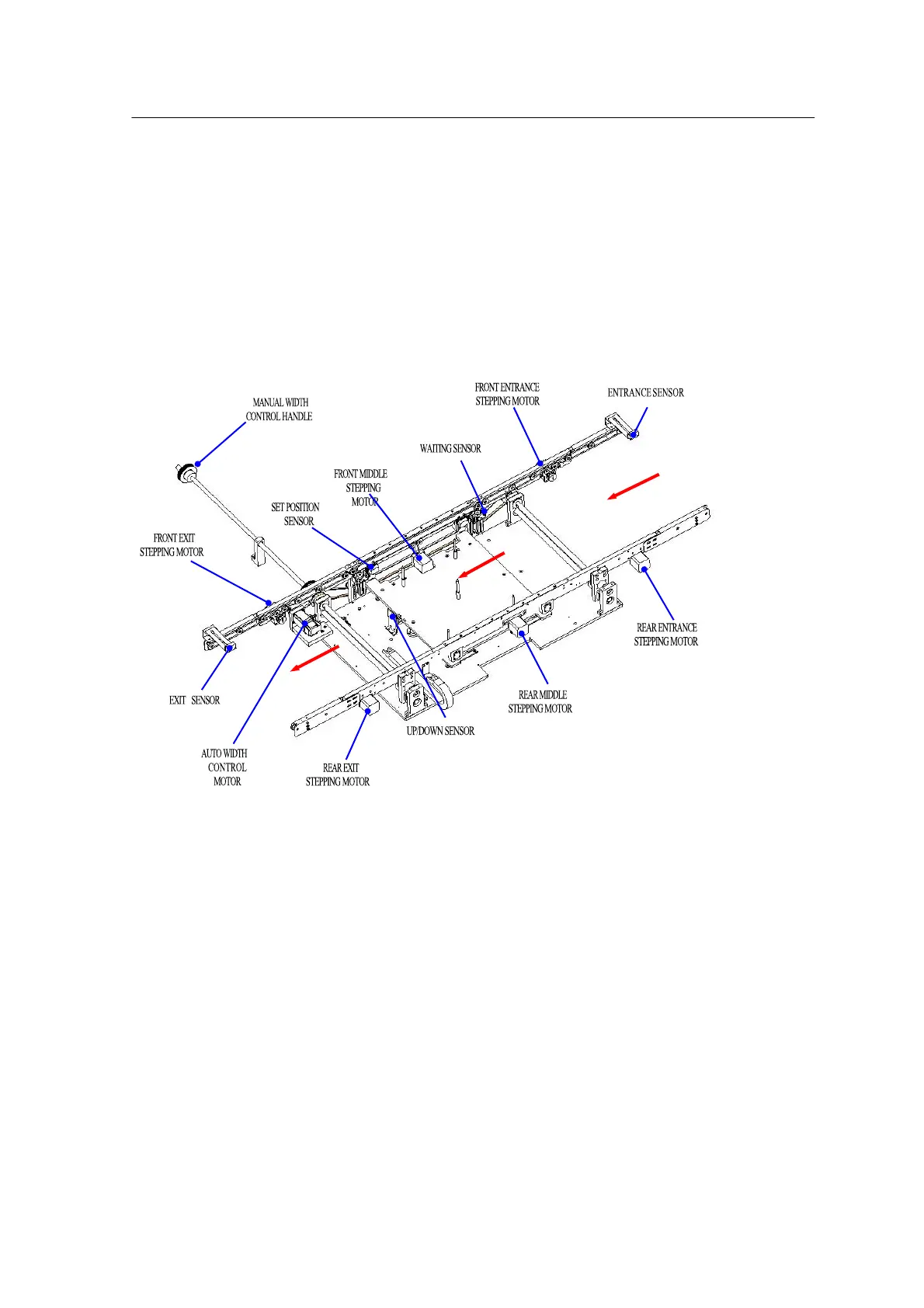

<Figure 4-3 3-stage structure of single conveyer>
INLET & DISTRIBUTOR ASSY
