Mitel 470 - Page 119

Installation
119
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016
The assignment of the RJ45 connector is identical on the NT-side and on the side of
the communication server.
Tab. 46 Wiring of the BRI basic rate interface network-side
Basic access in the private leased-line network

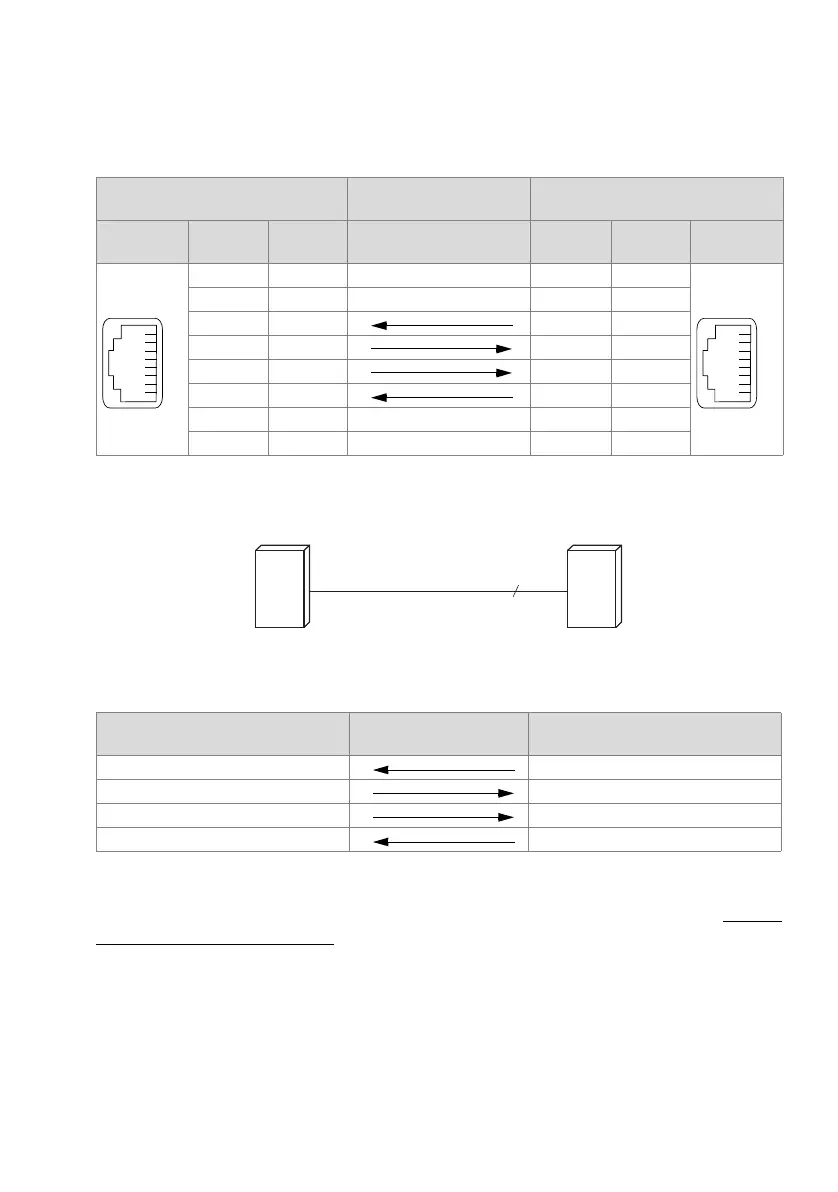

Fig. 37 BRI-S basic rate interface external, networked with copper line
Tab. 47 Connection of BRI-S basic rate interface
external, networked with copper line
Bus configuration
BRI-S
ext. is subject to the conditions that apply to terminal interface BRI-S (see "BRI-S
terminal interfaces", page 136).
NT1
Cable cores
Straight patch cable
Communication server
Socket Pin
BRI-T sig-
nal
BRI-T sig-
nal
Pin Socket
1– –1
2– –2
3c c3
4f f4
5e e5
6d d6
7– –7
8– –8
PINX 1 signal
Basic access BRI-S
ext.
Cable cores
PINX 2 signal
Basic rate interface BRI-T
cc
f f
ee
dd
















4
BRI-T
BRI-S
extern
PINX 1 PINX 2
Copper line
max. 1,000 m
