Mitel 470 - Ethernet Concept

Expansion Stages and System Capacity
47
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016
3. 2. 3 Ethernet concept
Mitel 470 provides three GBit Ethernet interfaces, which are routed to the front panel of
the call manager card. They are used to connect to the customer’s data network (LAN)
and e.g. the IP connection with an SIP provider. The socket marked "WAN" currently
has no function and remains covered.
Likewise the Ethernet interface on the front panel of the applications card is not used
as the applications server is accessed via the WebAdmin configuration tool.
As the following schematic diagram shows, all the cards are internally connected with
one another via Ethernet.

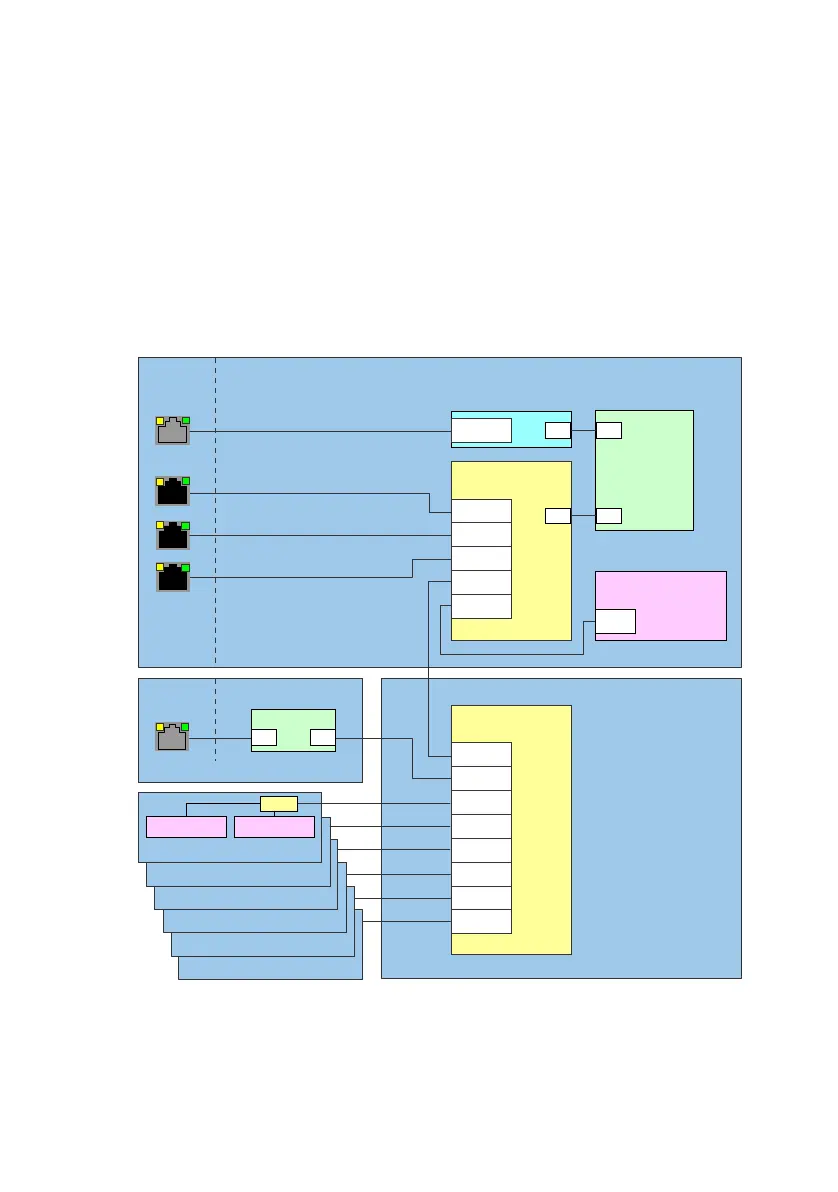

Fig. 11 Overview of the Mitel 470 Ethernet concept
100BT
WAN 1.1
LAN 1.2
LAN 1.3
LAN 1.4
LAN
LAN
1000BT
1000BT
1000BT
1000BT
1000BT
1000BT
100BT
100BT
100BT
100BT
100BT
100BT
100BT
100BT
100BT
MII
MII
GMII
GMII
Backplane
Interface cards
2PRI card (example)
Application card CPU2
Call Manager card CPU1
Processor
IP media moduleIP media module
Switch
Switch 100Mbit/s
IP media module
Processor
Switch 1Gbit/s
Front panel
Front panel
