Warning
If analogue trunk lines (FXO interfaces) are to be routed via the fan-out panel FOP, for safety
reasons the fan-out panel must be connected to the protective earth (see Fig. 65).

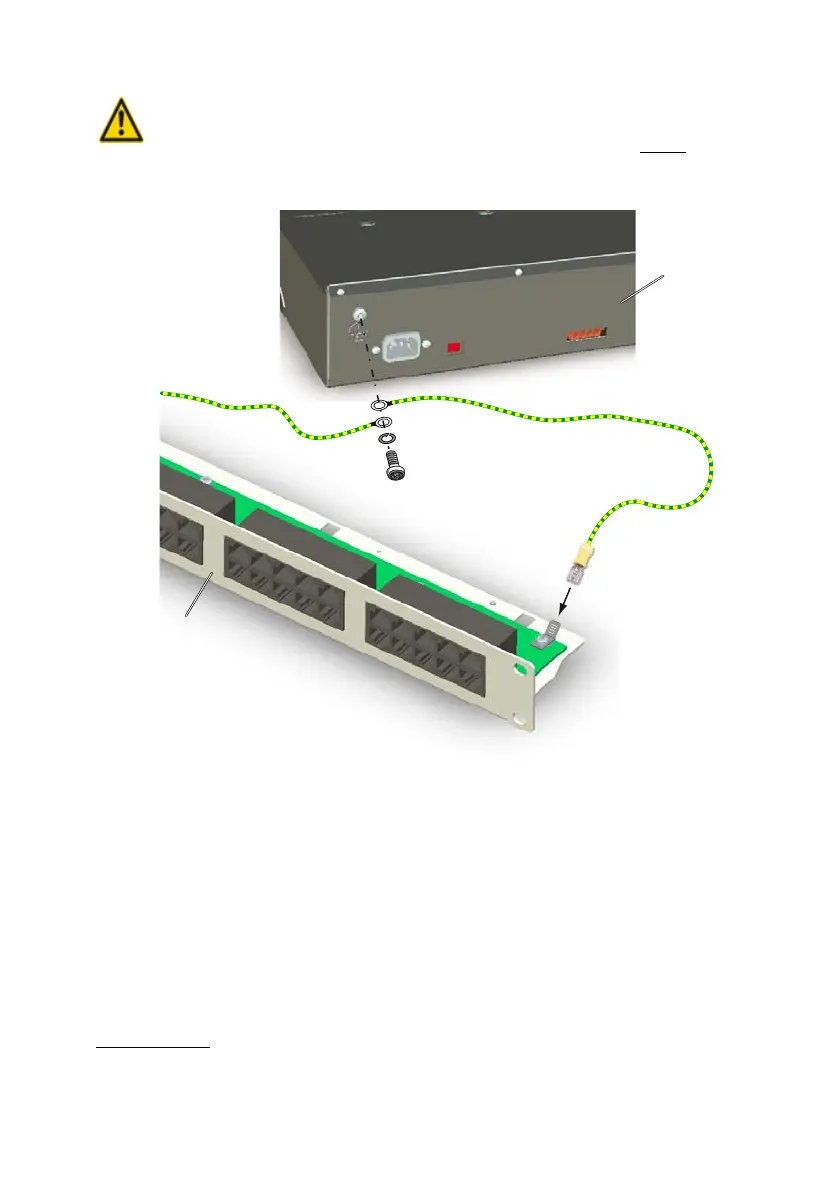

Fig. 65 Connection of the FOP fan-out-panel to the protective earth
4. 7. 5 Emergency fan-out-panel (EFOP)
1)
To be able to make emergency calls even in the event of a mains power failure, you
have the possibility of running up to 8 analogue FXO exchange lines via the EFOP
(emergency fan-out-panel). In the event of power failure, the EFOP automatically and
directly switches over exchange lines to up to 8 analogue phones.
The EFOP fan-out-panel also monitors the voltage of the FXS lines to the communica-
tion server. If for example ports are switched off due to overloading, the corresponding
exchange lines switch over automatically and directly to the analogue phones.
1) Available as of R2.1 SP1
FOP
Mitel 470
Stranded copper
yellow/green
4,0 mm
2
unprotected
Copper wire
yellow/green
2,5 mm
2
protected
4,0 mm
2
unprotected
