Expansion Stages and System Capacity
57
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016
3. 3. 1. 2 IP media module
IP media modules can be used for systems with high call switching requirements in the
IP network. Depending on the module type a different number of VoIP and FoIP chan-
nels is available, provided by the IP media modules as required (see Tab. 24).
Note
The use of the IP media switch does not depend on the mode of operation of the standard
media switch and the configuration of the DSP chips that are used by the standard media
switch.

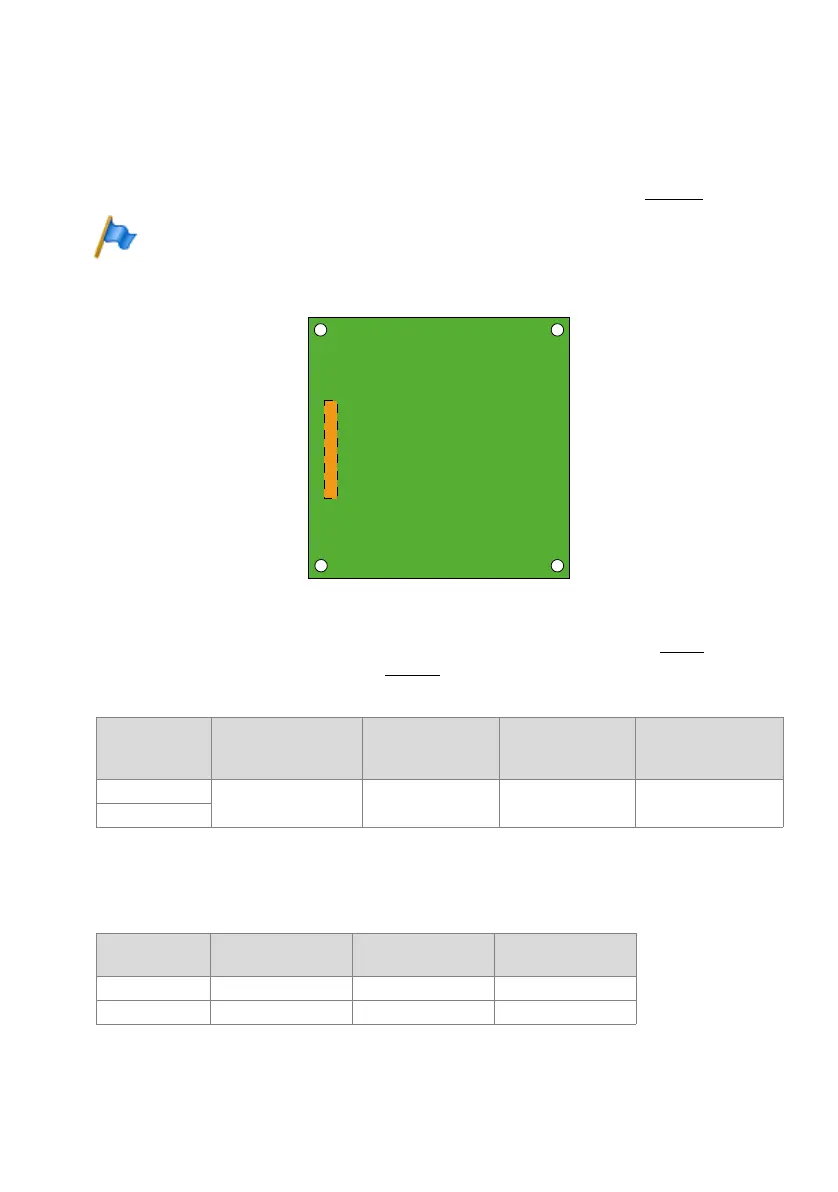

Fig. 13 Design of the IP media modules
IP media modules can be fitted both on the processor card CPU1 (see Fig. 9) and on
the 1PRI and 2PRI trunk cards (see Fig. 15). The modules are not stackable.
Tab. 23 IP media module
The number of VoIP channels per IP media module depends on both the type of mod-
ule and the use of voice channels:
Tab. 24 Max. number of voice channels per IP media module
Type
Number of modules
per CPU1 processor
card
Number of modules
per 1PRI trunk card
Number of modules
per 2PRI trunk card
Max. number of mod-
ules per system
EIP1-8
1125
EIP1-32
Type
G.711 only,
Secure G.711
G.711/G.729,
Secure G.711/G.729
FoIP (T.38)
EIP1-8 32 8 8
EIP1-32 64 28 28
