Mitel 470 - Rating Plate and Designation Stickers; Equipment Overview

Annex
254
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016

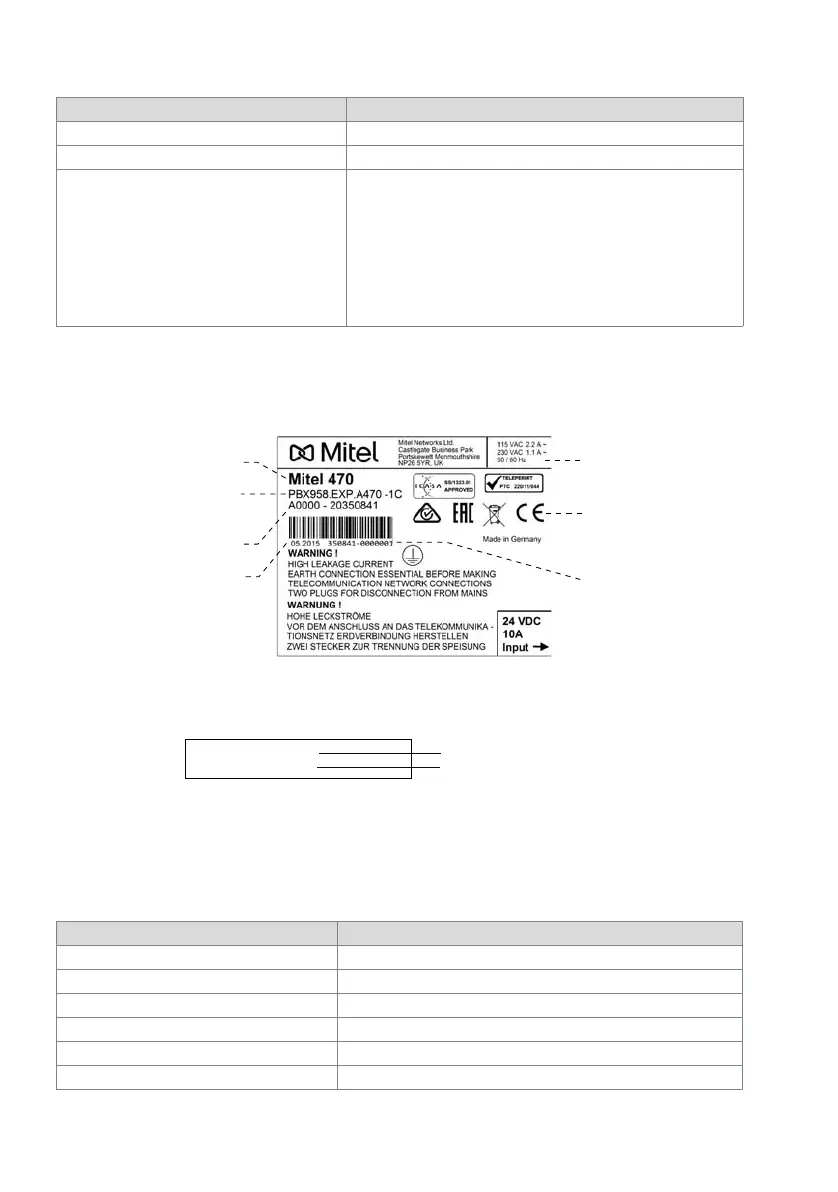

7. 2 Rating Plate and Designation Stickers
Fig. 92 Rating plate (example Mitel 470 communication server)
Fig. 93 Designation stickers (example interface card)
7. 3 Equipment Overview
Tab. 111 Equipment Overview
ID 4FXS = analogue terminal card with 4 FXS interfaces
Colour code on terminals Colour designation in accordance with EU directive
Generation and version Example: –3C = 3. Generation, Version C
(Generation new modules: -1)
Notes:
• A generational change is effected following substantial changes
to the functionality of a PCB.
• A change of version is effected following small changes to func-
tions or once faults have been remedied. Backward compatibility
is guaranteed.
Designation Description
PBX958.EXP.A470-1 Mitel 470 basic system with CPU1 call manager card
CABLE-MAINS 3X0.75MM2 3-pin network connection cable
1)
MOV958.EXP.CPU2-2 Applications card CPU2-S
MOV957.EXP.SM-DSPX1-1 DSP module SM-DSPX1
MOV957.EXP.SM-DSPX2-1 DSP module SM-DSPX2
EIP1-8 IP Media module EIP1-8
Part of the PCB designation Remarks and examples
Serial
number
Power speci-
cation
Type
approval
System
PCB designation
Material no.
Production date
MOV958.EXP.8DSI-1
A . . . . - 20 . . . . . .
Mat. No. PCB Designation
No.
