Expansion Stages and System Capacity
40
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016
3 Expansion Stages and System Capacity
The basic systems can be expanded using interface cards, system modules, an ap-
plications card and licences. The expansion possibilities available and the maximum
system capacities need to be known so the communications system can be ideally
adapted to customer requirements. With the project data the optimum hardware
configuration is easily determined using the project planning application Mitel CPQ.
3. 1 Summary
Expansion possibilities for the Mitel 470 basic systems at a glance. The interface cards
are fitted from the front into one of a total of 7 slots. System modules are fitted either to
the call manager card or to interface cards. System modules are also used on other
platforms: The DSP modules with Mitel 415/430 and the IP media modules with
MiVoice 5000.

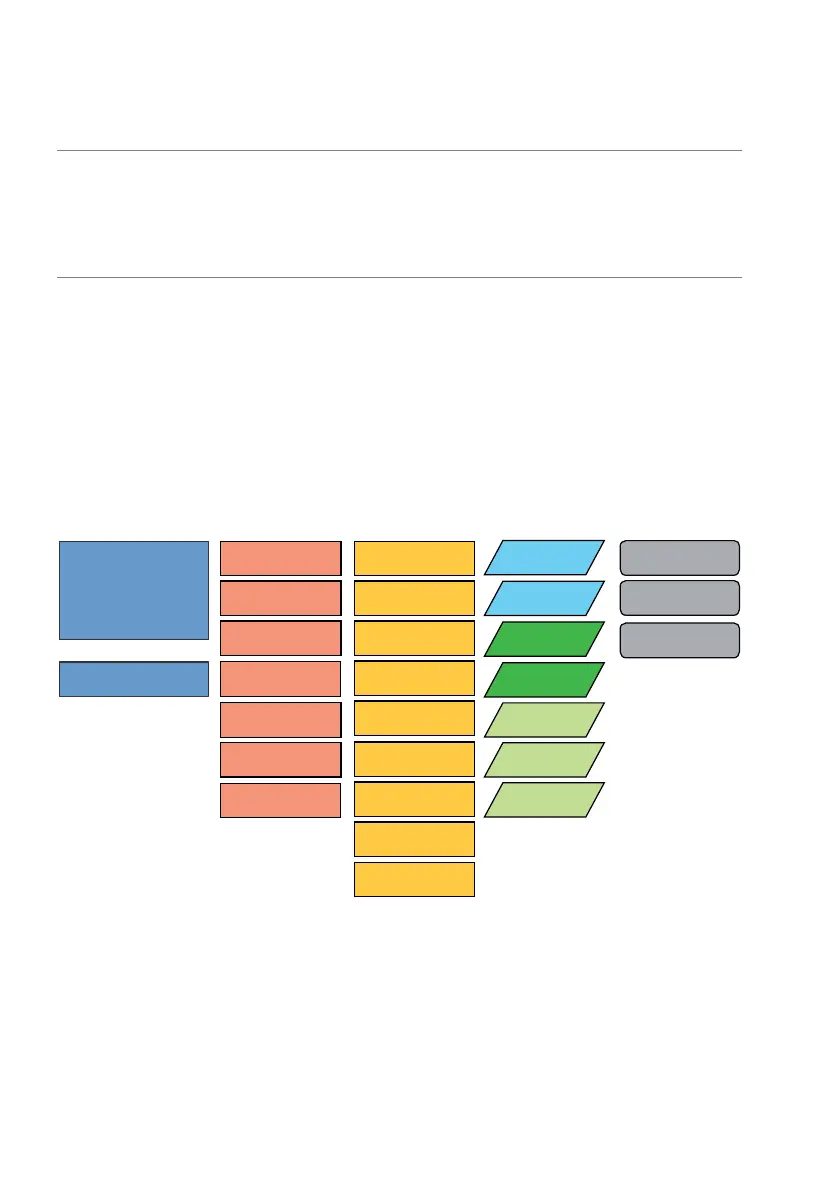

Fig. 5 Overview of the expansion possibilities
The basic system Mitel 470 can be expanded not just with interface cards and system
modules but also with an applications card (CPU2). The applications card is supplied
with preinstalled operating system, unified communications and multi-media applica-
tions.
FXS: Foreign Exchange Station
DSI: Digital Station Interface
FXO: Foreign Exchange Inter face
1 x DSP
SM-DSPX1
2 x DSP
SM-DSPX2
IP media
EIP1-8
IP media
EIP1-32
4 x FXS
4FXS
8 x FXS
8FXS
32 x FXS
32FXS
16 x FXS
16FXS
8 x DSI
32DSI
16 x DSI
16DSI
32 x DSI
32DSI
1 x PRI
1PRI
2 x PRI
2PRI
4 x BRI-T
4BRI
8 x BRI-T
8BRI
4 x BR-S
4BRI
4 x BRI-S
8BRI **
4 x FXO
4FXO *
8 x FXO
8FXO *
16 x FXO
16FXO *
Call charges
8 TAX *
Call charges
16 TAX *
Call charges
4 TAX *
Terminal cardsTrunk cards
Interface cards
Application card (CPU2)
Basic system Mitel 470 with
call manager card (CPU1),
backplane (BP2U), power
suply unit (PSU2U) and fan
** 4 interfaces permanently
congured to BRI-T
Auxiliary power
suply unit (APS2)
Redundant fan
unit (RFU)
Fan-out-panel
(FOP)
Communication
server
Expansions
System modules
* The availability/release depends
on the sales channel.
