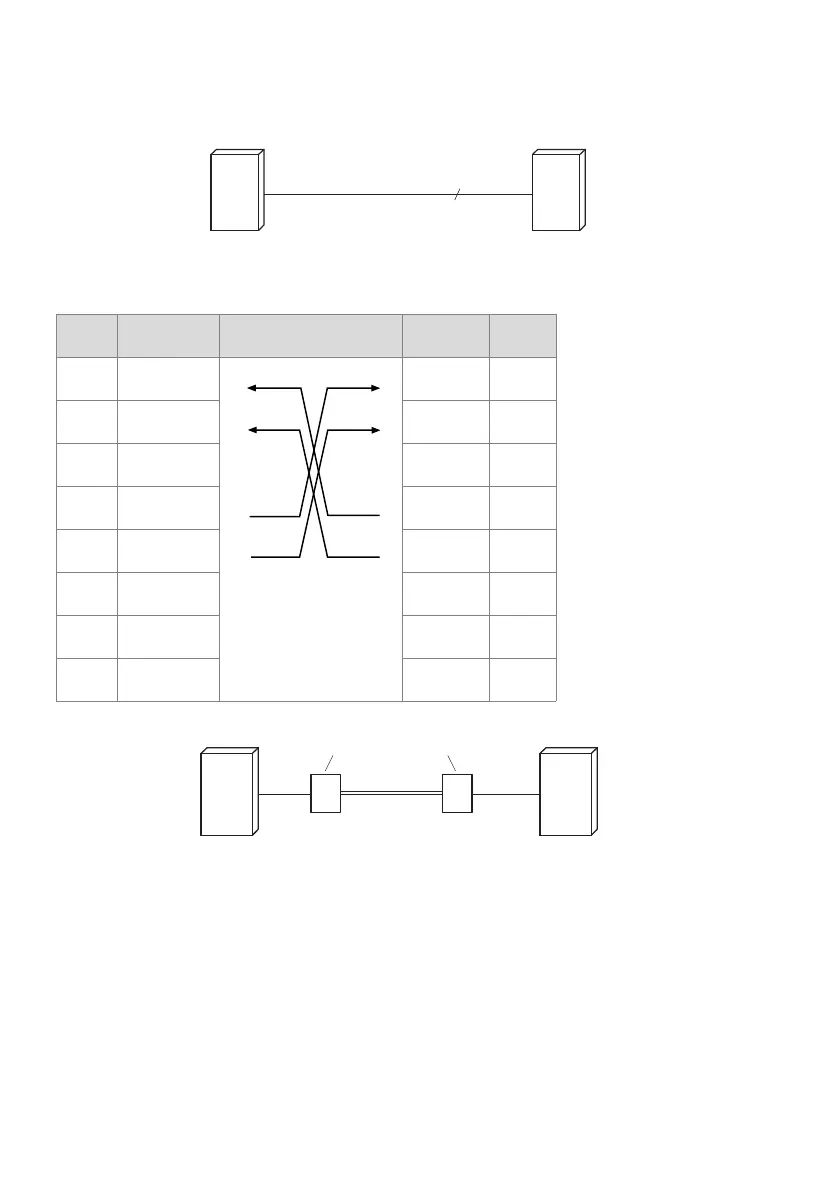

Primary rate access in the private leased-line network
Fig. 41 Primary rate access, networked with copper line
Tab. 51 Cabling for primary rate access PRI, networked with copper line
Fig. 42 Primary rate interface, networked with transmission equipment
RJ45
Pin
PRI PINX 1
signal
Cable cores
Crossed patch cable
PRI PINX 2
signal
RJ45
Pin
1RxA RxA 1
2RxB RxB 2
3— — 3
4TxA TxA 4
5TxB TxB 5
6— — 6
7— — 7
8— — 8
PINX 1
PRI
PRI
PINX 2
Copper line
max. 200 m
4-wire
PINX 1
PRI
PRI
PINX 2
Copper line
max. 200 m
4-wire
PINX 1
PINX 2
PRI
PRI
max.
200 m
max.
200 m
Transmission facilities
