Installation
141
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016
bles and the fan-out panel FOP (see "Fan-out panel FOP", page 148) or with 8-fold as-
signed connecting cables (see e.g. "Prefabricated system cable 4 x RJ45", page 113).
Tips
– Multiply assigned RJ45 sockets are colour-coded in blue.
– To be able to make emergency calls even in the event of a mains power failure, you have
the possibility of running up to 8 analogue FXS lines via the EFOP emergency fan-out panel.
In the event of a power failure the EFOP switches the connected analogue phones automat-
ically and directly over to the analogue FXO exchange lines (see "Emergency fan-out-panel
(EFOP)", page 151).
Connection

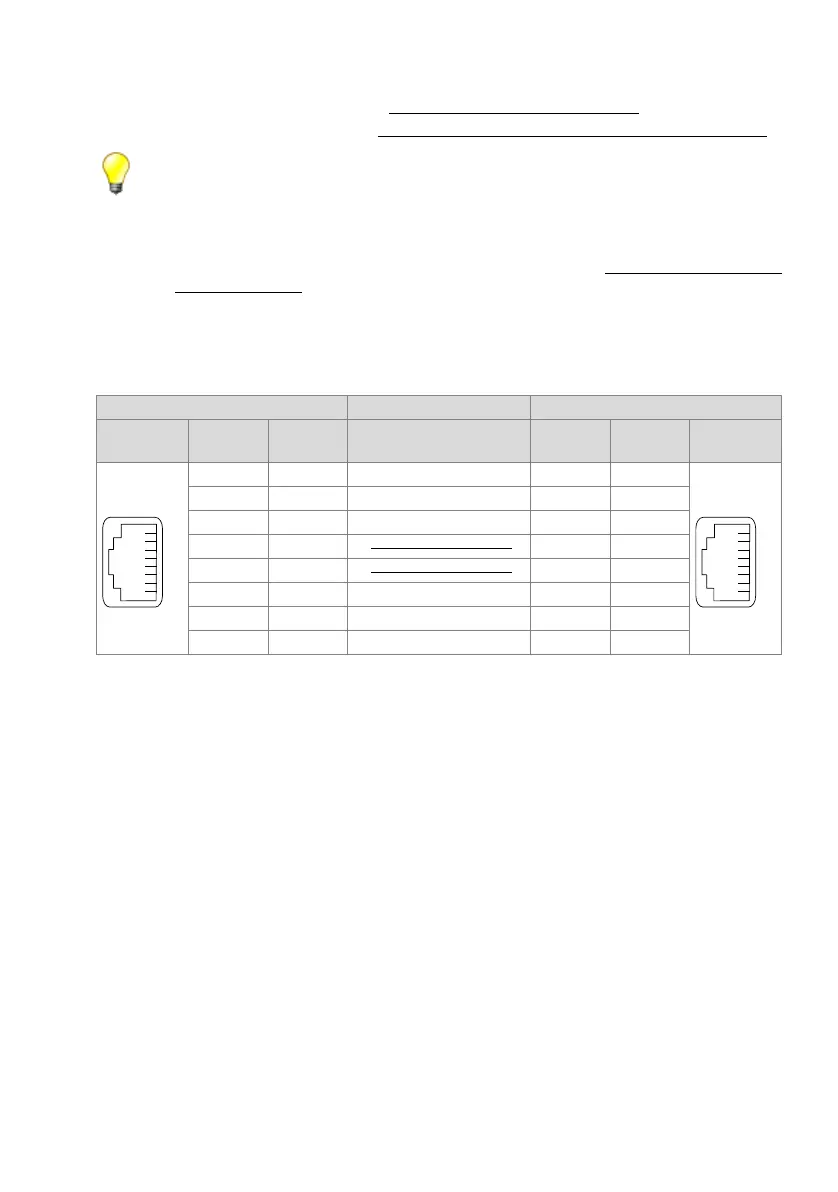

Tab. 66 Connection of individually assigned FXS terminal interface
Communication server Cable cores Connection socket
Socket Pin
Analogue
signal
Analogue
signal
Pin Socket
1– –1
2– –2
3– –3
4a a4
5b b5
6– –6
7– –7
8– –8
