APPENDICES APPENDIX
Appendix 7 Setting Examples
485
A
Setting examples of access route
The following shows the setting example of each access route for each frame. For the details of each setting item, refer to the
following section.
Page 50 Details of Setting Data

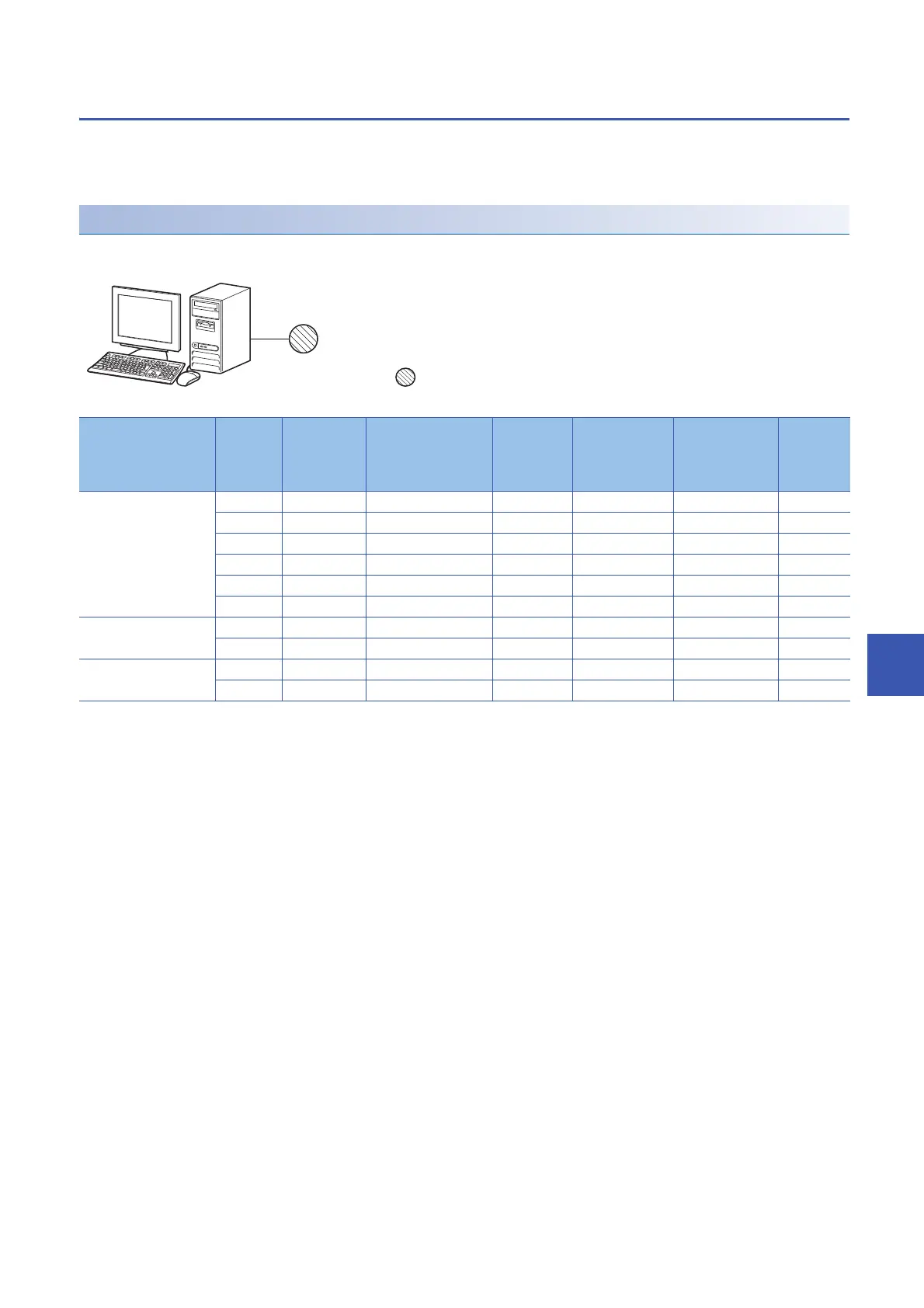

Accessing the connected station (host station)
The following shows the setting example for accessing the connected station (host station).
: Unnecessary
Specify the CPU module of an access target in the request destination module I/O No.
Page 57 Accessing multiple CPU system, redundant system
Access target Frame Station No. Network No. PC No. Request
destination
module I/O No.
Request
destination
module station
No.
Self-
station
No.
Connected station (host
station)
4C 00 00 FF 03FF 00 00
3C 00 00 FF  00
2C 00 00
1C 00  FF  
4E/3E  00 FF 03FF 00 
1E  FF  
Multiple CPU system
(Multiple CPU No.1)
4C 00 00 FF 03E0 00 00
4E/3E  00 FF 03E0 00 
Redundant system
(Control system CPU)
4C 00 00 FF 03D0 00 00
4E/3E  00 FF 03D0 00 
External device
Connected station
(Host station)
:Access target station
