Disassembly/Reassembly Procedures: Radio Disassembly Sec 1: 8-15
8.7.3 Removal of the Expansion Board Assembly (H)
1. Using the Black Stick, unplug the two flex connectors located on the left and right side of the
Expansion Board Assembly (33). Unfold and straighten the flex located on the right side as
shown in Figure 8-18.

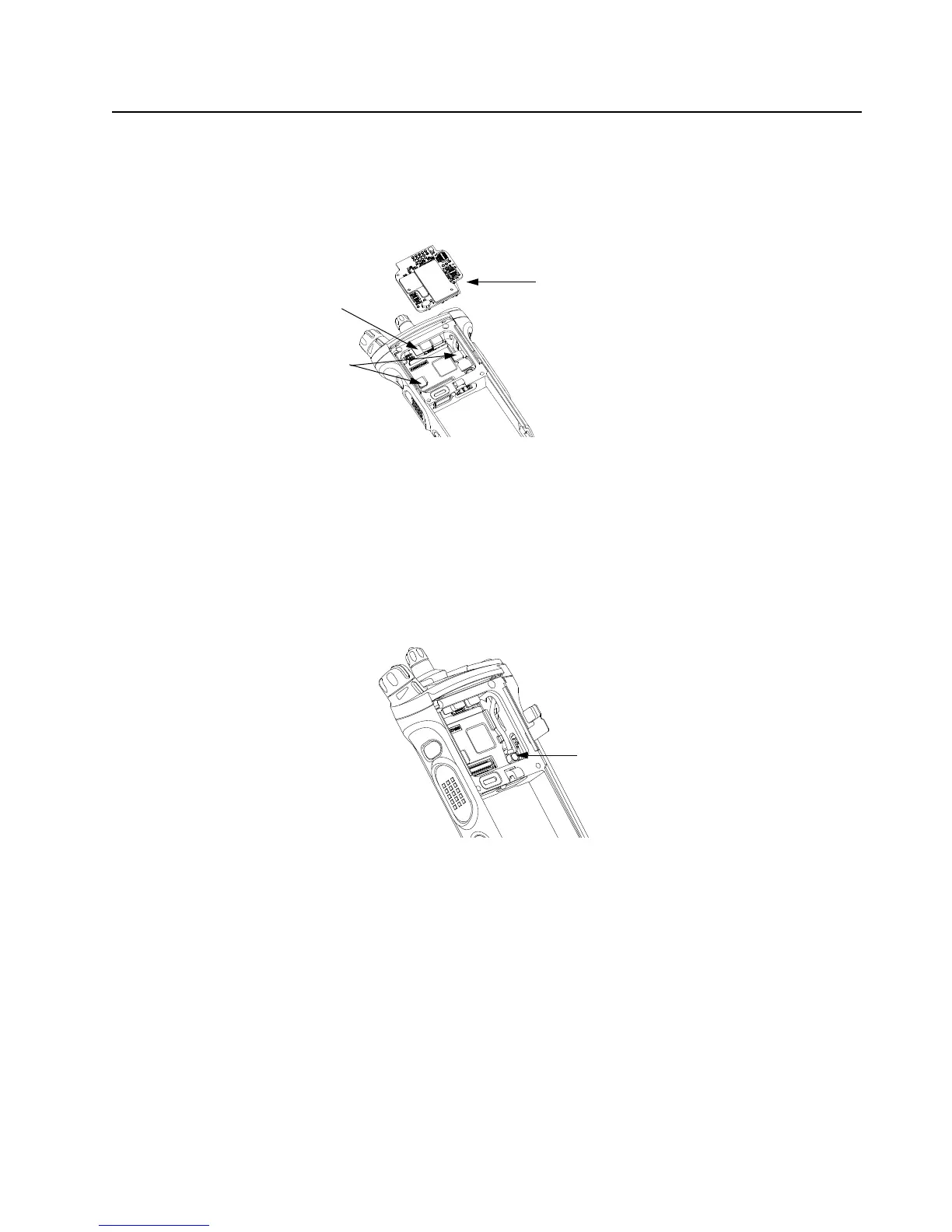

Figure 8-18. Remove Flex Connectors and Expansion Board Assembly
2. Remove the Expansion Board Assembly (H) by gently lifting up the right side of the PCB as
shown in Figure 8-18.
3. If the VOCON Board Assembly (D) is to be removed from the radio, then unplug the Control
Top Assembly flex as shown in Figure 8-18.
4. If the RF Board Assembly (C) is to be removed, use the Black Stick to unplug the antenna
coax cable from the RF Board Assembly as shown in Figure 8-19.
Figure 8-19. Remove Antenna Coax Cable Connector
5. Flip the radio over.
Flex Connectors
Expansion Board Assembly (33)
Control Top Assembly Flex
Antenna Coax Cable Connector
