Sec 1: 8-16 Disassembly/Reassembly Procedures: Radio Disassembly
8.7.4 Removal of the Main Housing Assembly (A,L,M)
1. Gently stretch both sides of the Main Housing Assembly (1) outwards to clear the radio. Then
lift it over the radio as shown in Figure 8-20.
NOTE: For Top Display version, ensure the Belt Clip Cover (53) has been removed.

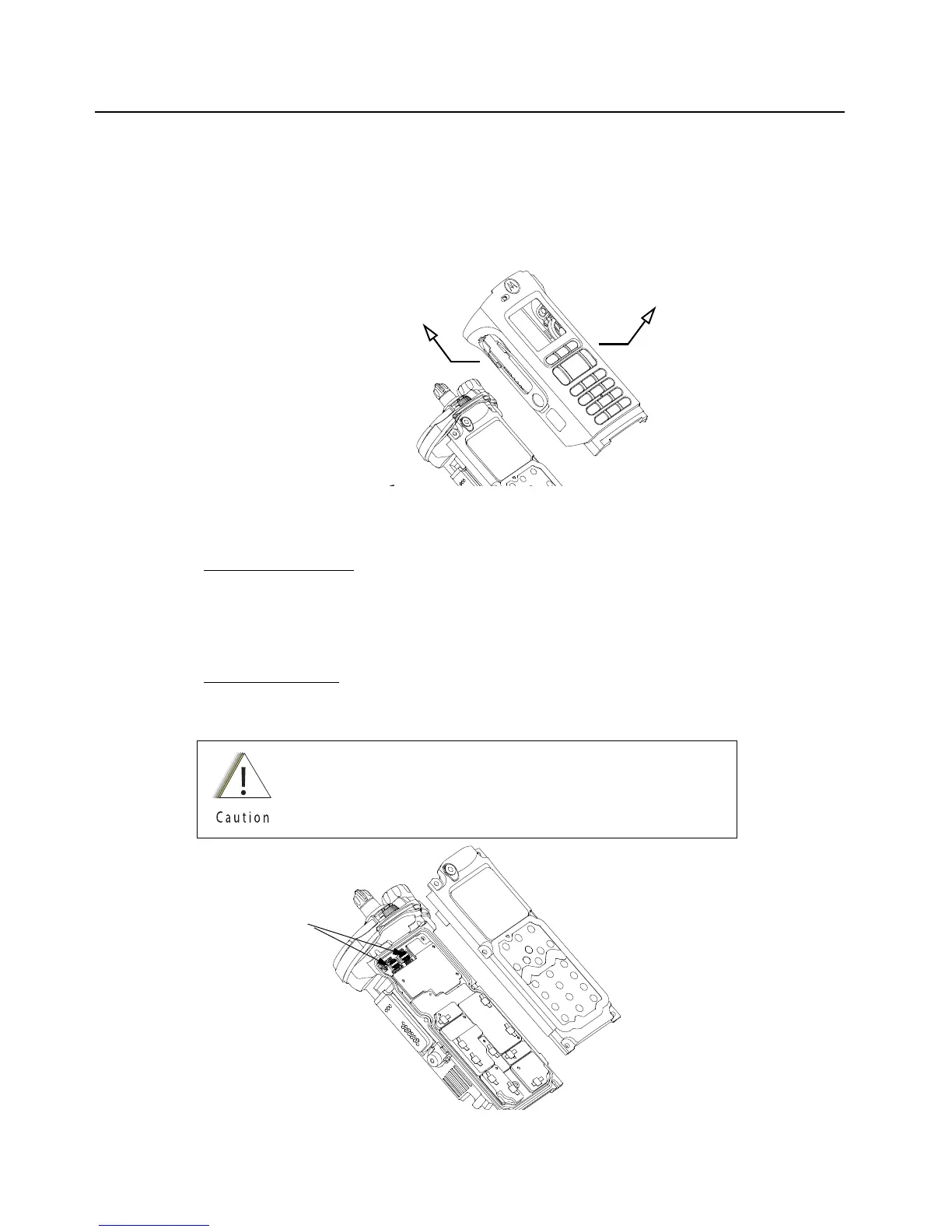

Figure 8-20. Remove Housing
8.7.5 Removal of the Back Chassis Assembly (B, N)
1. Dual Display versions:
Gently separate the Back Chassis Assembly (B) from the Main Chassis Assembly (E) to allow
access to disconnect the two flex connections between both chassis. These connectors are
located near the top of the radio. Use the Black Stick to disconnect the connectors as shown
in Figure 8-21.
Top Display version
:
Back Chassis Assembly (N) has no connections and can be removed by just separating the
the two chassis apart.
Figure 8-21. Remove Back Chassis Assembly from Main Chassis Assembly
Pull the flex connectors vertically upwards by using black stick.
Disconnect at two connector locations shown in Figure 8-21.
