Disassembly/Reassembly Procedures: Radio Disassembly Sec 2: 8-15
8.7.3 Removal of the Expansion Board Assembly (H)
1. Using the Black Stick, pull up the locking feature side of the Expander Board Support (61). Be
careful not to damage the flex or any component during the process.

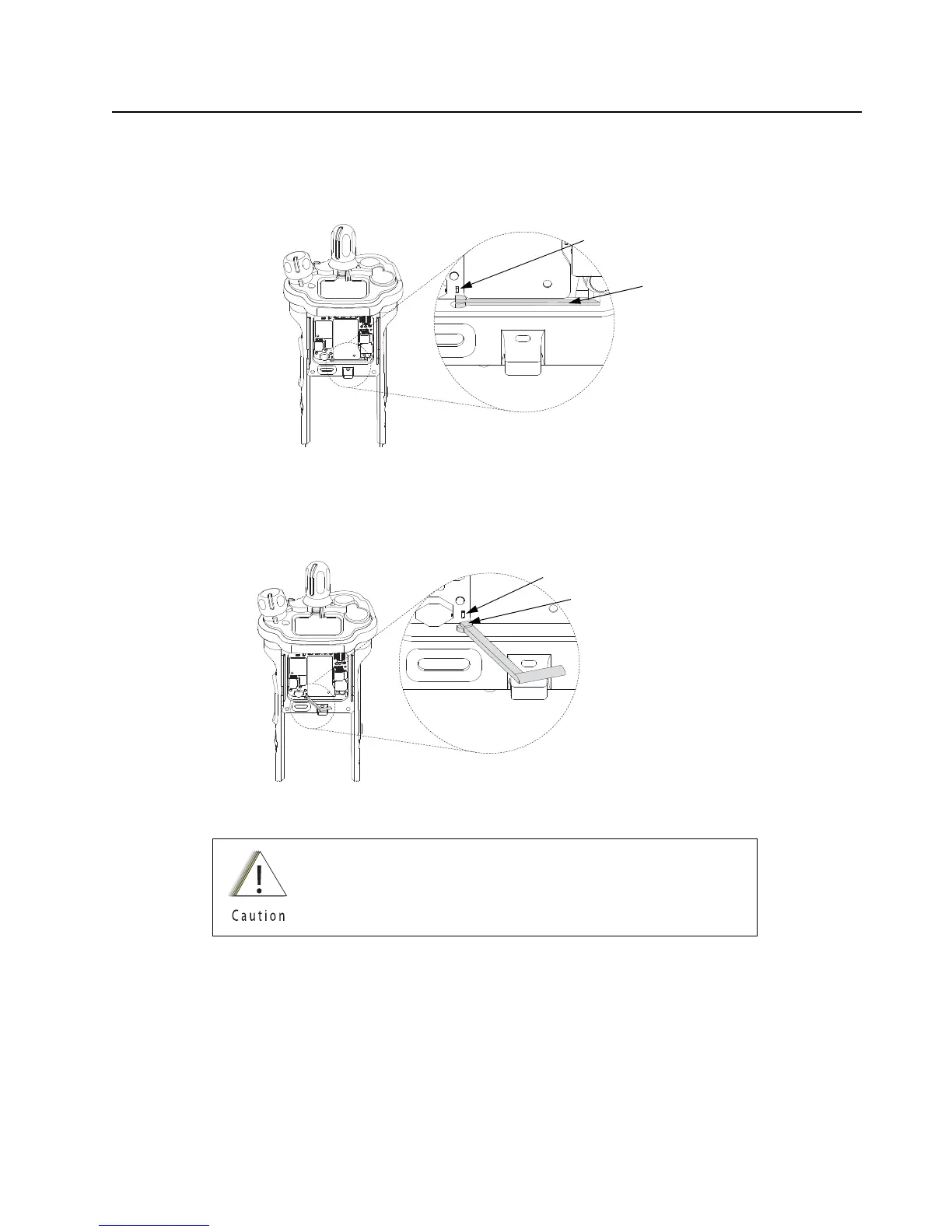

Figure 8-18. Pull Expander Board Support (Opt. Expansion Board)
2. Rotate the Expander Board Support vertically.
3. Remove the rounded portion from the Expander side opening of the vacuum test
compartment.
Figure 8-19. Remove Expander Board Support
4. Using the Black Stick, unplug the two flex connectors located on the left and right side of the
Expansion Board Assembly (33). Unfold and straighten the flex located on the right side as
shown in Figure 8-20.
Be careful not to damage the capacitor during the disassembly
process.
Capacitor to avoid
Expander Board Support
Capacitor to avoid
Rounded portion of
Expander Board Support
To Next Page
