Motorola ASTRO APX O2 - Figure 5-6. Handlebar Installation with Speaker and Control Head Mounted Separately; Fuel Tank Console Installation with Speaker and Control Head Mounted Separately

6878215A01
5-12 Motorcycle Radio Installation Installing the Speaker and Control Head

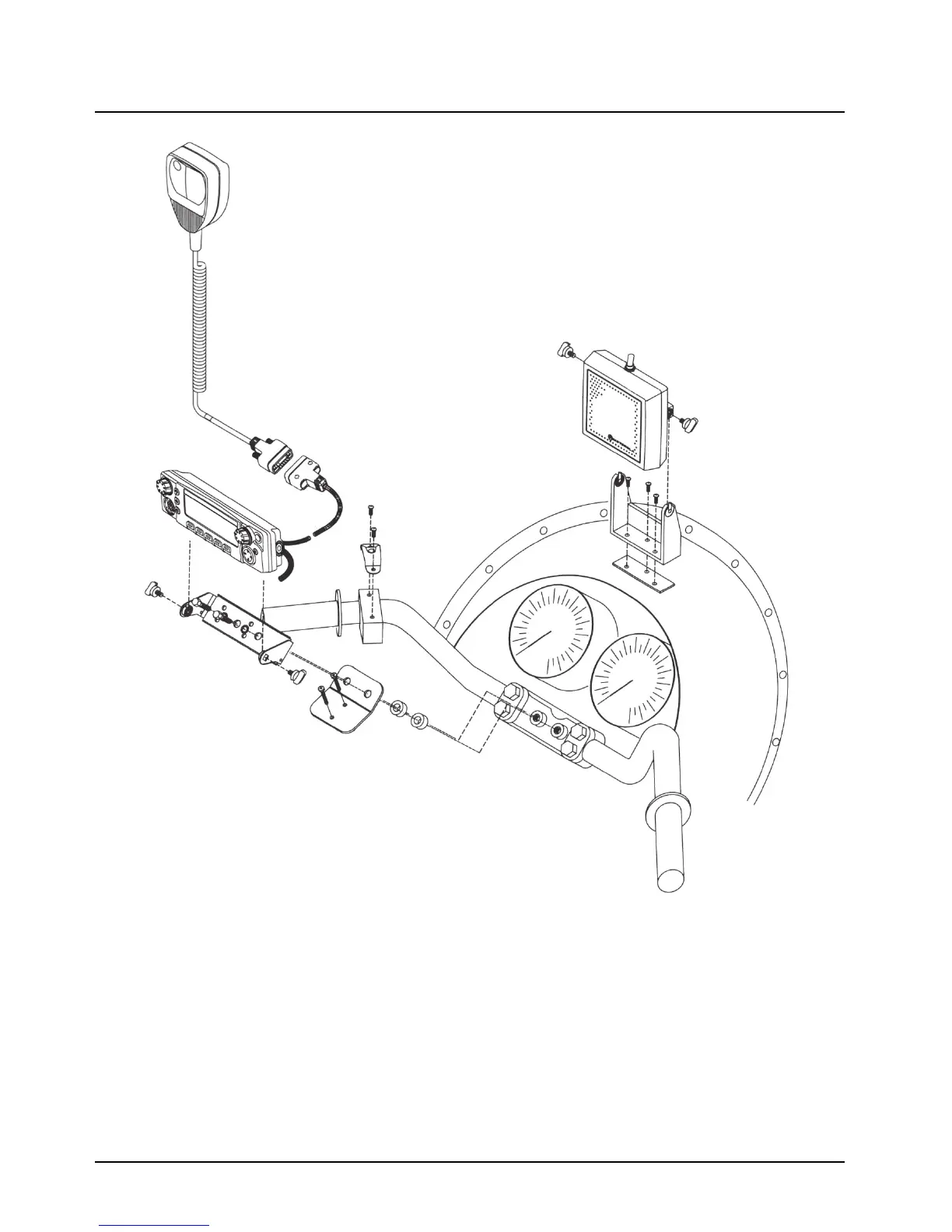

Figure 5-6. Handlebar Installation with Speaker and Control Head Mounted Separately
5.4.4 Fuel Tank Console Installation with Speaker and Control Head Mounted
Separately
The control head may be mounted to the fuel tank console using the smaller control-head bracket
and spacers/hardware. In this configuration, the microphone cable connector may be attached
directly to the console, eliminating the need for a custom bracket.
