Motorola ASTRO APX O2 - Figure 2-42. Bracket Installation; Figure 2-43. Bracket Installation (Assembled State)

6878215A01
2-34 Standard Configurations Power Cables (Transceiver and Control Head)
2. Insert the locking bracket (HLN7017_) onto the DC cable.
3. Slide the bracket toward the radio until the bracket clips snap onto the radio features.

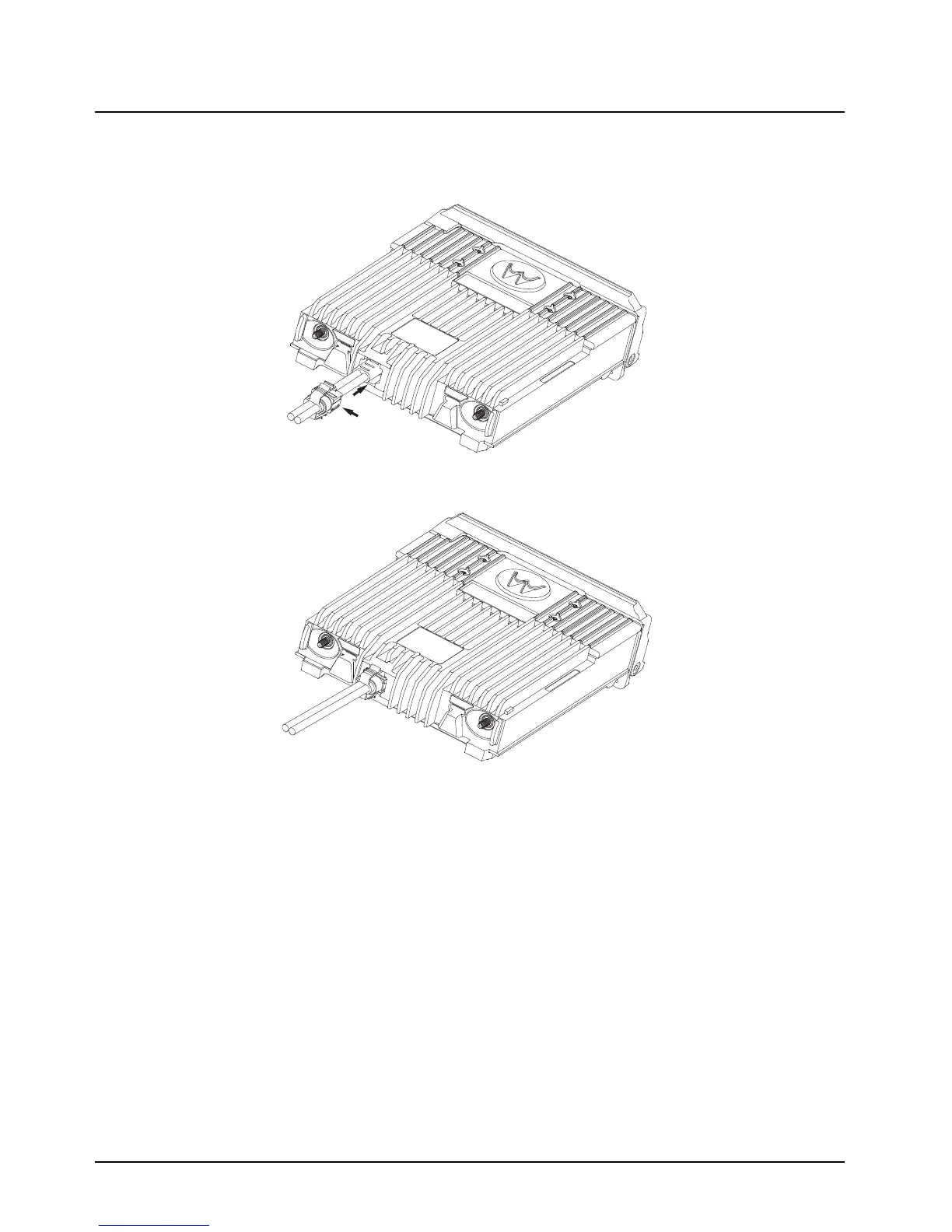

Figure 2-42. Bracket Installation
Figure 2-43. Bracket Installation (Assembled State)
(3)
(2)
