Motorcycle Radio Installation Installing Antenna Base and Cables 5-17
Figure 5-11. Routing the Coaxial Cable for GPS
12. Attach the 7/800, VHF or UHF antenna base per Antenna Installation Manual.
IMPORTANT: Antenna Placement and Cable Routing in the Antenna Installation
Manual is not applicable for the APX series.

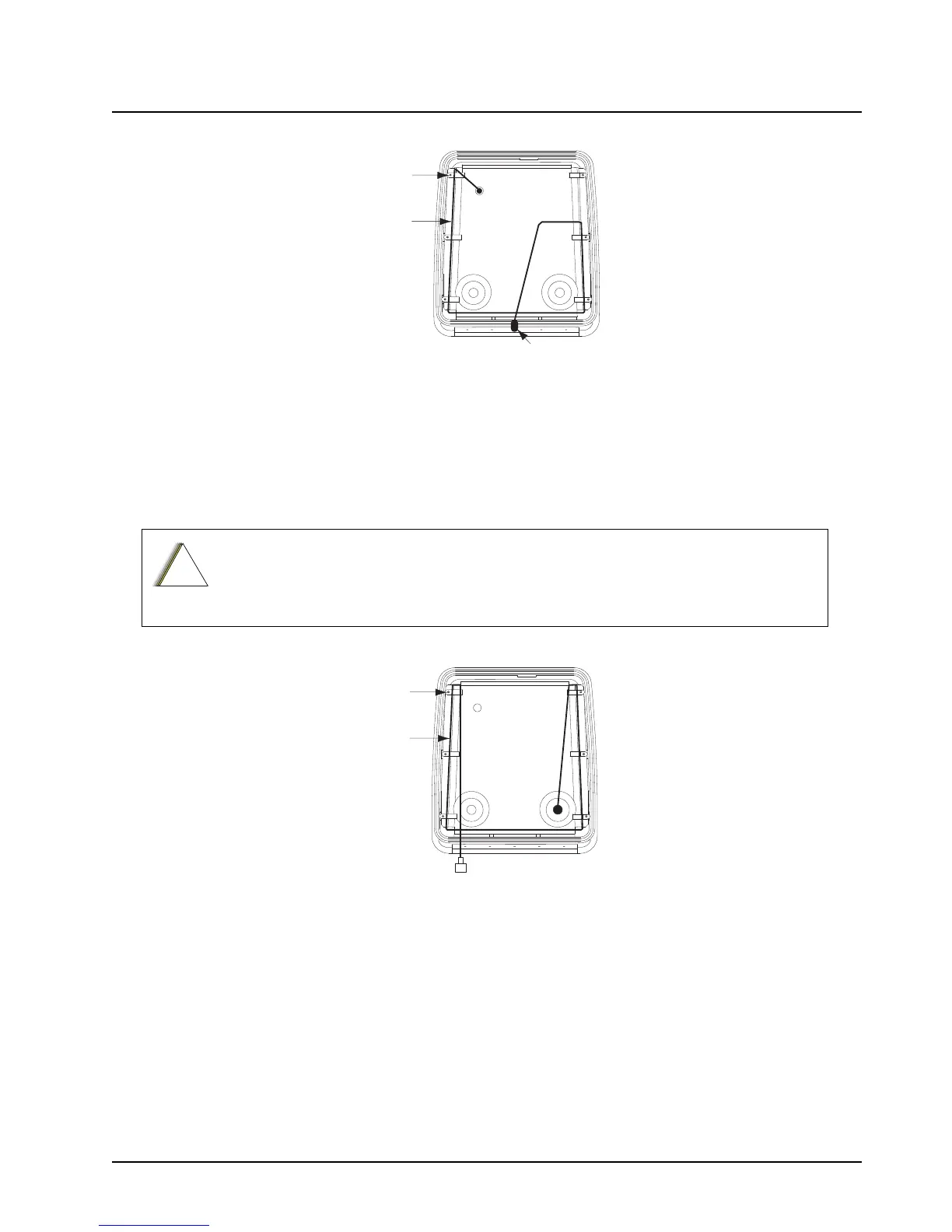

13. Route the coaxial cable for the 7/800, VHF or UHF antenna(s) through the cable clamps per
Figure 5-12 for Band 1 and Figure 5-13 for Band 2.
Figure 5-12. Routing the Coaxial Cable for Band 1
Be sure to observe the correct routing of the antenna cable. Failure to do so can damage the
cable.
Cable
Clamp
Coaxial
Cable
Connector
!
C a u t i o n
Cable
Clamp
Coaxial
Cable
Attach to Antenna
Connector on
Radio Band 1
