Motorola ASTRO APX O2 - Figure 2-11. Radio Installation (O7 MID Power Remote Mount); Figure 2-12. Radio Installation (O2 High Power Remote Mount)

6878215A01
Standard Configurations Planning the Installation 2-7

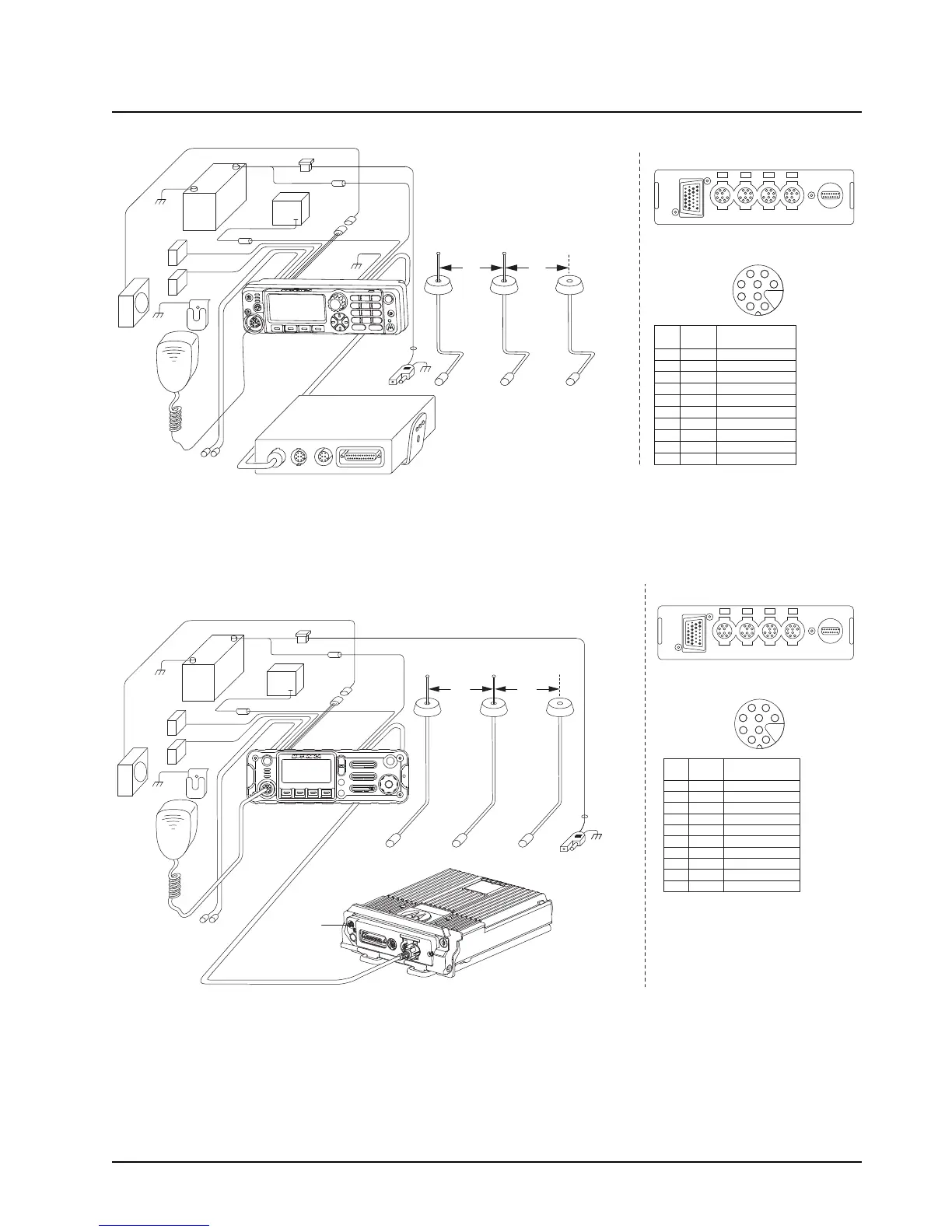

Figure 2-11. Radio Installation (O7 Mid Power Remote Mount)
Refer to Section 2.1.3.2 and Section 4.2.1 for further details and recommended wiring of emergency
in remote mount.
Figure 2-12. Radio Installation (O2 High Power Remote Mount)
BATTERY
HORN
RELAY
LIGHT
RELAY
MIC
CLIP
SPEAKER
MIC
EMERGENCY
SWITCH
RED LEAD
FUSE
BLOCK
YELLOW
LEAD
BLACK
LEAD
(+)
(-)
FUSE
FUSE
CONTROL HEAD
FIREWALL
HOLE
ANTENNA
CONNECTION
ANTENNA 1
DC POWER
CABLE
RADIO
FUSE
ANTENNA
CONNECTION
ANTENNA 2
(FOR DUAL
BAND RADIOS)
ANTENNA
CONNECTION
ANTENNA 3
GPS (OPTIONAL)
PWR
SPK
J400-1 RED SWB +
J400-2 GREEN GND
J400-3 - NO PIN
J400-4 - "VIP" detect: GPIO=HIGH
J400-5 BLUE VIP_OUT_1
J400-6 YELLOW VIP_OUT_2
J400-7 BLACK VIP_OUT_3
J400-8 WHITE VIP_IN_1 (VIP_IN GPIO)
J400-9 ORANGE VIP_IN_2 (VIP_IN GPIO)
J400-10 VIOLET VIP_IN_3
CAN CAN DEK
VIP
J400
ACC USB
PORTS ON REAR OF REMOTE CONTROL HEAD
VIP CONNECTOR PIN-OUT
J400
6
9
10
7
4
2
5
8
1
Radio
Pin
Number
VIP Cable
(HKN6196_)
Wire Color
Function
3 ft 3 ft
EMERGENCY
SWITCH
FIREWALL
HOLE
ANTENNA
CONNECTION
GPS
ANTENNA
CONNECTOR
DC POWER
CABLE
ANTENNA
CONNECTION
RADIO
CONTROL HEAD
BATTERY
HORN
RELAY
LIGHT
RELAY
MIC
CLIP
SPEAKER
MIC
RED LEAD
FUSE
BLOCK
YELLOW
LEAD
(+)
(-)
FUSE
FUSE
REMOTE
MOUNT
CONTROL
CABLE
ANTENNA 1
ANTENNA 2
(FOR DUAL
BAND RADIOS)
ANTENNA
CONNECTION
ANTENNA 3
GPS
(OPTIONAL)
FUSE
PWR
SPK
CAN CAN DEK
VIP
J400
ACC USB
PORTS ON REAR OF REMOTE CONTROL HEAD
VIP CONNECTOR PIN-OUT
J400
6
9
10
7
4
2
5
8
1
J400-1 RED SWB +
J400-2 GREEN GND
J400-3 - NO PIN
J400-4 - "VIP" detect: GPIO=HIGH
J400-5 BLUE VIP_OUT_1
J400-6 YELLOW VIP_OUT_2
J400-7 BLACK VIP_OUT_3
J400-8 WHITE VIP_IN_1 (VIP_IN GPIO)
J400-9 ORANGE VIP_IN_2 (VIP_IN GPIO)
J400-10 VIOLET VIP_IN_3
Radio
Pin
Number
VIP Cable
(HKN6196_)
Wire Color
Function
3 ft 3 ft
