Introduction Standard Configurations 1-7
1.2.2 Remote Mount Configuration
In the remote control version, the transceiver and the control head are mounted separately in the
vehicle. The O2, O5 and O7 control heads are mounted in remote trunnions near the operator.The
O3 and O9 control heads are also mounted near the operator using extension cables. The
transceiver and control head are mounted using a trunnion or other mounting hardware. If the
transceiver is located in a car trunk, ensure that it is mounted securely and that sufficient cooling is
provided. Do not cover the transceiver with baggage, blankets, etc.
NOTE: The keypad mic should only be plugged into the Modified Modular Plug (MMP) connector
located on the control head, in either dash mount or remote mount configuration.

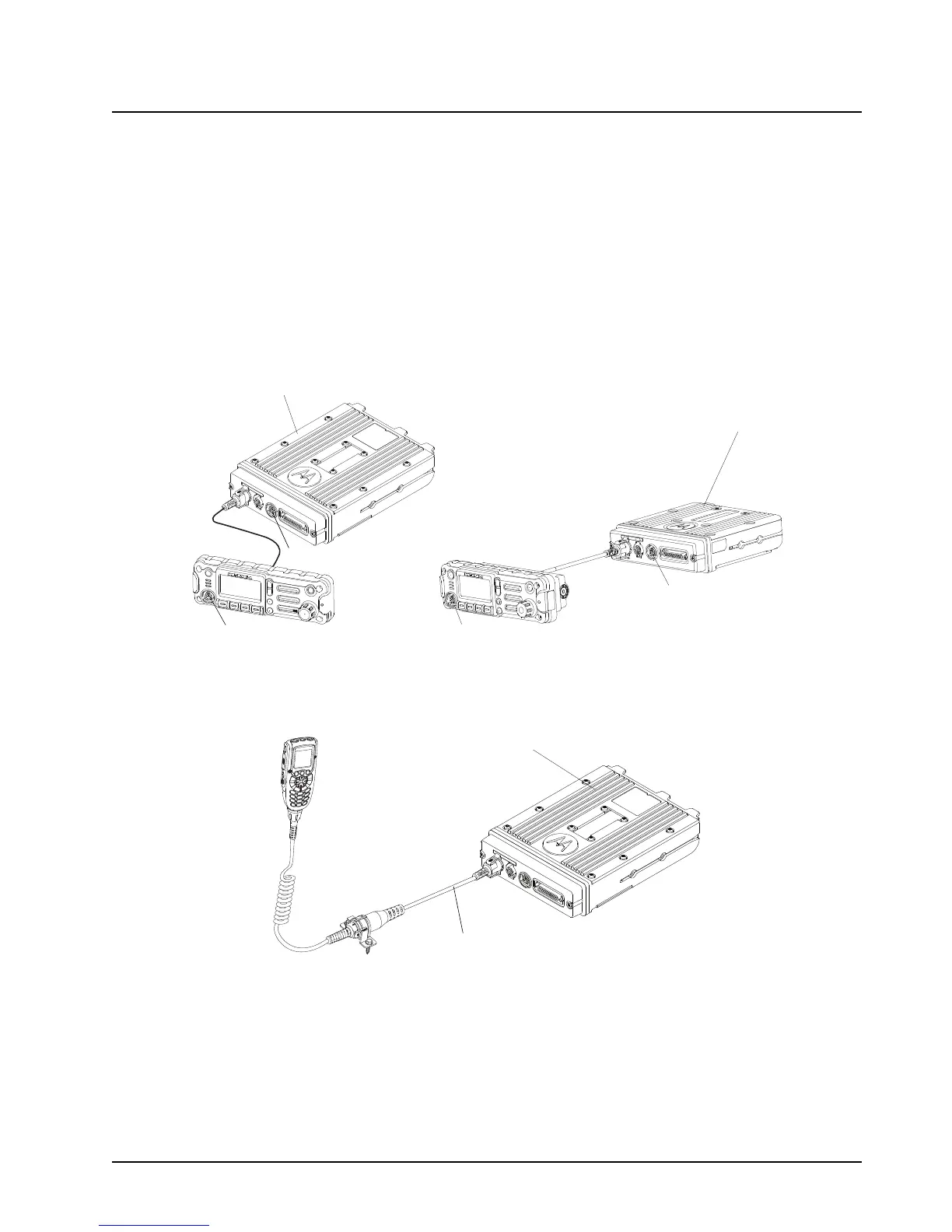

Figure 1-27. Remote Mount Configuration with Mid Power Transceiver, Transceiver Interface Board,
CHIB Rear Assembly and O2 Control Head
Figure 1-28. Remote Mount Configuration with Mid Power Transceiver,
Transceiver Interface Board and O3 Control Head
MMP
MMP
ASTRO 25 Subscribers APX 5500/
APX 6500/APX 7500/
APX 6500 Li Mobile
ASTRO 25 Subscribers
APX 2500
MMP
MMP
5 m (17 ft) Extension Cable
ASTRO 25 Subscribers APX 5500/
APX 6500/APX 7500/
APX 6500 Li Mobile
