Motorcycle Radio Installation Installing the O5 Control Head Sunshield 5-27
3. Slide the control head onto the trunnion while aligning the edge of the control head with the
edge of the sunshield as shown in Figure 5-21. Make sure the Velcro properly adheres to the
control head.

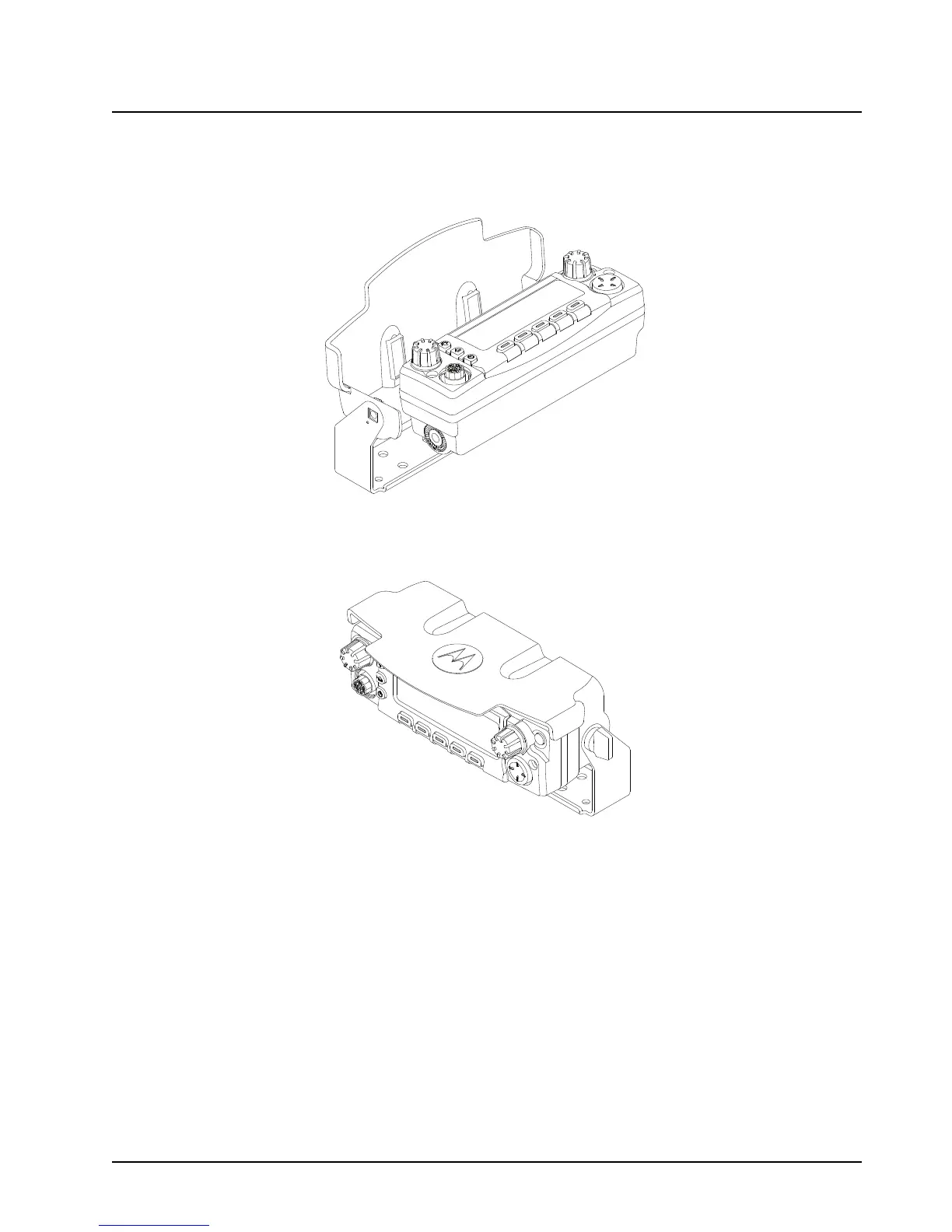

Figure 5-21. Slide the Control Head onto Trunnion
4. Position control head as desired and install screws as shown in Figure 5-22.
Figure 5-22. Position Control Head as Desired
