Standard Configurations Planning the Installation 2-3
2.1.2 Wiring Diagrams
Figure 2-6 through Figure 2-17 show the wiring diagrams for all the possible configurations. The title
under each figure identifies the O2, O3, O5, O7 or O9 control head configurations. Identify which of
these figures shows the configuration that you are installing, and use the diagram when planning the
installation.

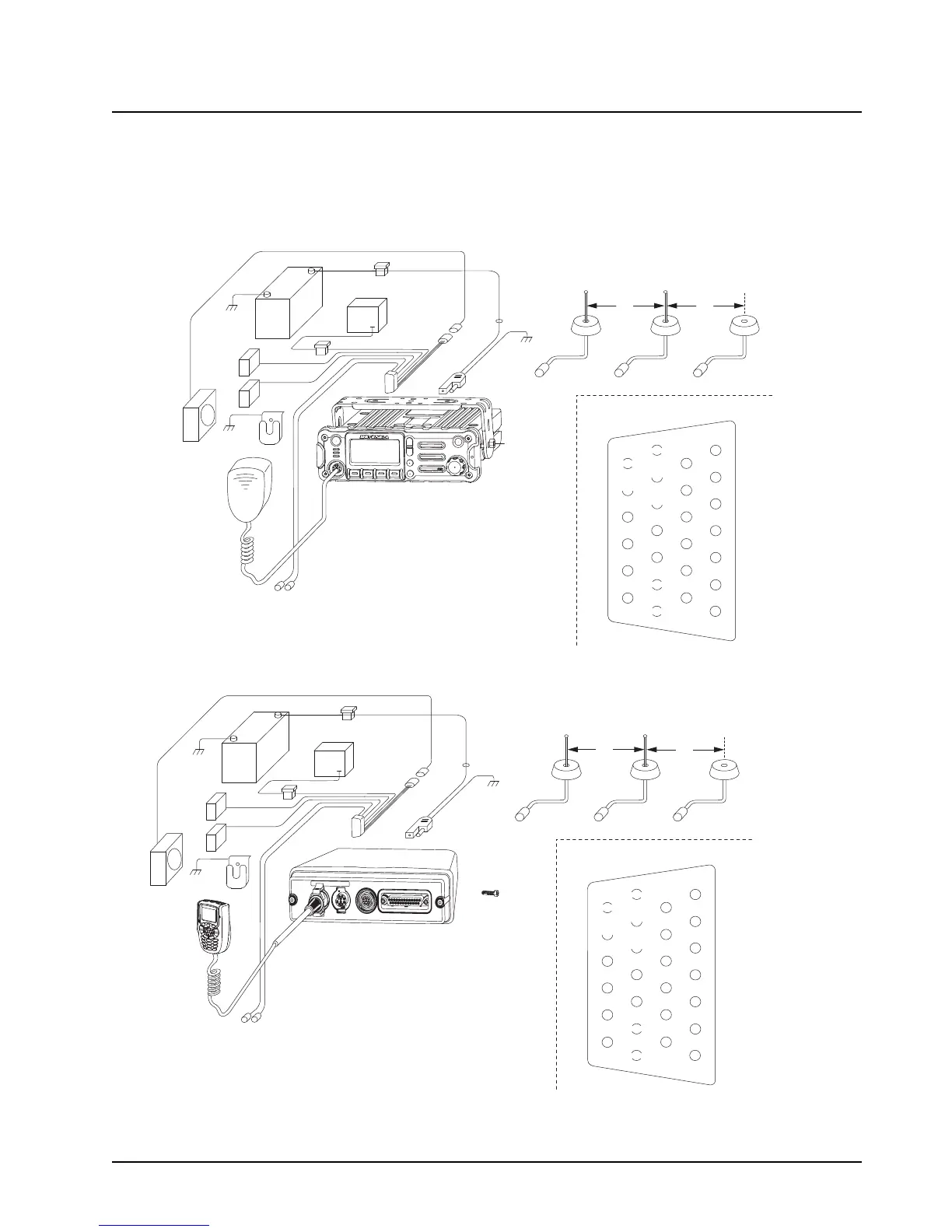

Figure 2-4. Radio Installation (O2 Mid Power Dash Mount)
Figure 2-5. Radio Installation (O3 Mid Power Dash Mount)
BATTERY
HORN
RELAY
LIGHT
RELAY
MIC
CLIP
SPEAKER
MIC
EMERGENCY
SWITCH
FUSE
FUSE
BLOCK
(+)
(-)
RED LEAD
FUSE
FIREWALL
HOLE
MOUNTING
SCREW
DASH MOUNT RADIO
ANTENNA
CONNECTION
ANTENNA 1
3 ft
IGN SENSE (ACC)
P2
(SEE J2
PINOUT)
DC
POWER
CABLE
TRUNNION
J2
REAR ACCESSORY CONNECTOR
1
7
8
14
13
20
21
26
SPKR-
SPKR+
VIPOUT 2
12V
(RELAY)
VIPOUT 1
12V
(RELAY)
GROUND
EMERGENCY
IGN SENSE
(ACC)
ANTENNA
CONNECTION
ANTENNA 2
(FOR DUAL
BAND RADIOS)
ANTENNA
CONNECTION
ANTENNA 3
GPS (OPTIONAL)
3 ft
BATTERY
HORN
RELAY
LIGHT
RELAY
MIC
CLIP
SPEAKER
MIC
EMERGENCY
SWITCH
FUSE
FUSE
BLOCK
(+)
(-)
RED LEAD
FUSE
FIREWALL
HOLE
MOUNTING
SCREW
RADIO
ANTENNA
CONNECTION
ANTENNA 1
IGN SENSE (ACC)
P2
(SEE J2
PINOUT)
DC
POWER
CABLE
TRUNNION
J2
REAR ACCESSORY CONNECTOR
1
7
8
14
13
20
21
26
SPKR-
SPKR+
VIPOUT 2
12V
(RELAY)
VIPOUT 1
12V
(RELAY)
GROUND
EMERGENCY
IGN SENSE
(ACC)
ANTENNA
CONNECTION
ANTENNA 2
(FOR DUAL
BAND RADIOS)
ANTENNA
CONNECTION
ANTENNA 3
GPS (OPTIONAL)
3 ft
3 ft
