MTS Systems FlexTest SE Service Information

Model 493.02 Controller Service
Hydraulic Configurations
223
Compatible Controllers
You can mix 493.07, 458, 490. and 497.05 controllers directly on the
same HPU (without the use of an HPU isolation box).
You cannot mix 493.07, 458, 490. and/or 497.05 controllers with 436,
413.05, or 413.8X controllers unless you use an isolation box.
You can jumper the 493.07 converter box so you can use it directly
with 436 and 413.05 controllers. However, if you do this you must use
an isolation box if you attempt to mix the 493.07 with 458, 490, and
497.05 controllers. See Appendix B, “Model 493.07 HPU Converter” on
page 229

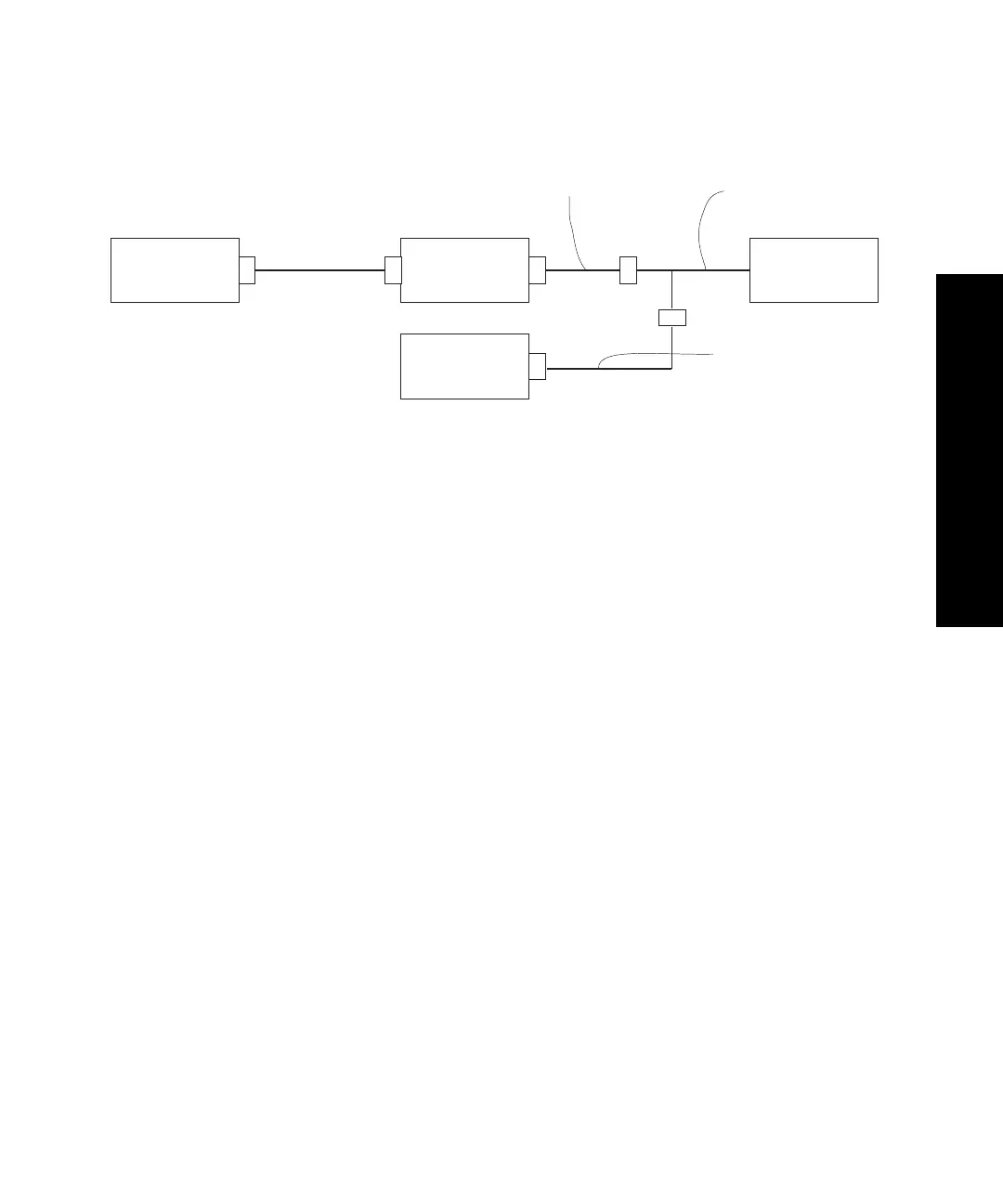

J25
HPS
HPS
J25
HPS
397087-XX (24 V DC)
397088-XX (115 V AC)
493.07
Pump
Interface
J1
HPS
458* or
490.01*
497.05*
High-Level Y cable
054078-01 (24 V DC)
054018-01 (115 V AC)
397138-XX (24 V DC)
397146-XX (115 V AC)
397107-XX (24 V DC)
397108-XX (115 V AC)
493.02
Chassis
* For standard 493.07 jumper setting only. Alternate settings are required for 436.11 and 413.05 controllers.
