MTS Systems FlexTest SE Service Information

Model 493.02 Controller Service
Hydraulic Configurations
224
Multiple Controller Interconnections
FlexTest SE supports the following hydraulic interconnections for
multiple controller configurations:
• Independent HSM control with no HPU
• Independent HSM control with a shared HPU
• Shared HSM with an HPU
• Shared HSM without HPU
• Independent HSM controlled with a shared HPU using first-on-
last-off
See“Multiple Controller Connections” on page 43 and the FlexTest SE
User’s Manual for more detailed information multiple controller
configurations.

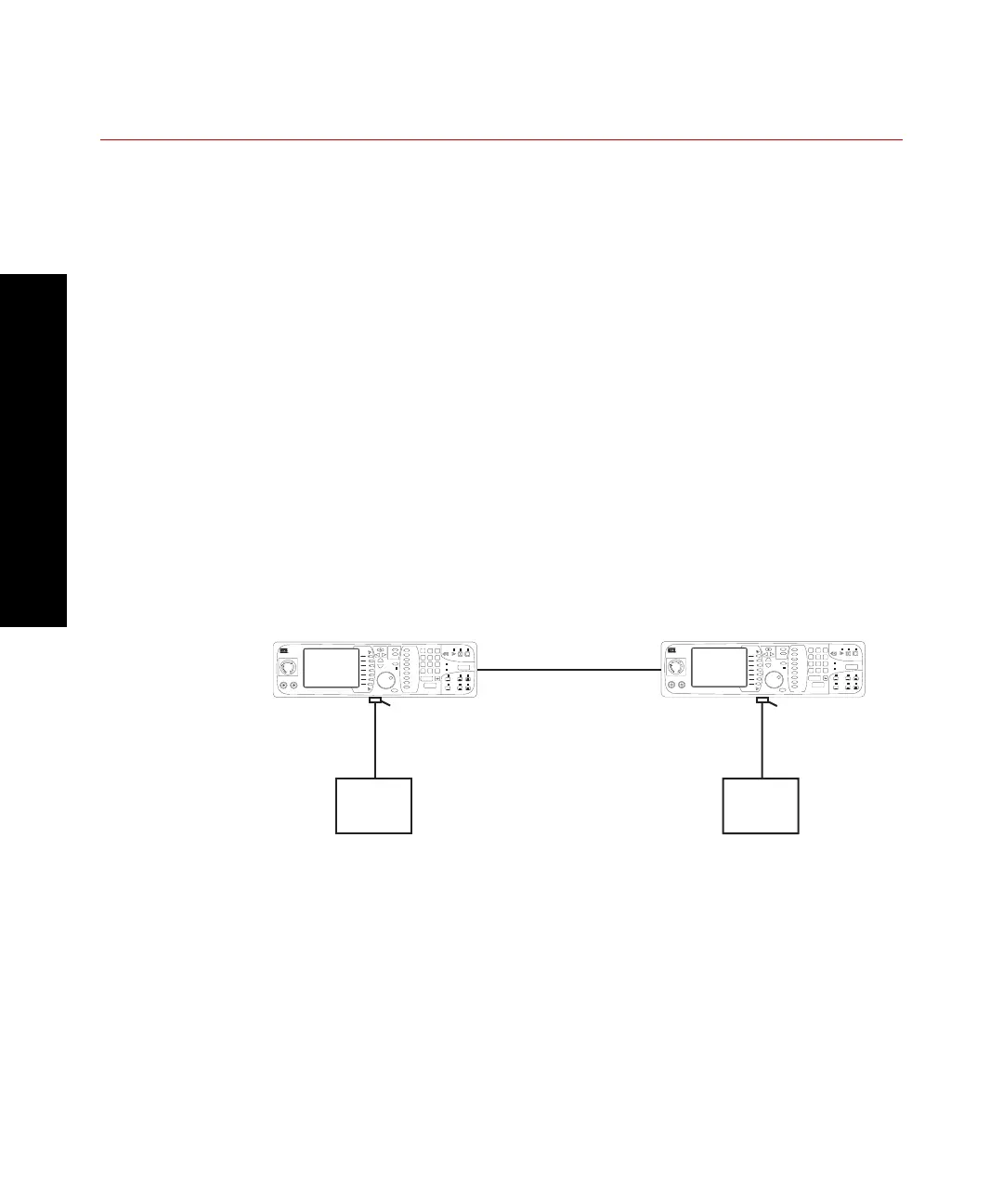

Independent HSM (no HPU)
For this multiple controller configuration:
• Each controller has an independent hydraulic service manifold
(HSM).
• No hydraulic power unit (HPU) is connected.
• Select HSM Only for Power Type on each connected controller.
Path: Config > Edit Hardware > Power Options > Power Type
> HSM Only
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tuning
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run
Hold
Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low
High
Off
Low
High
Navigate
Monitor 1
Monitor 2
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tuning
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run
Hold
Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low
High
Off
Low
High
Navigate
Monitor 1
Monitor 2
Power Type = HSM Only
Power Type = HSM Only
Interlock/Hydraulics
HSM 1
561264-xx
J28 HSM
HSM 2
561264-xx
J28 HSM
563160-xx
