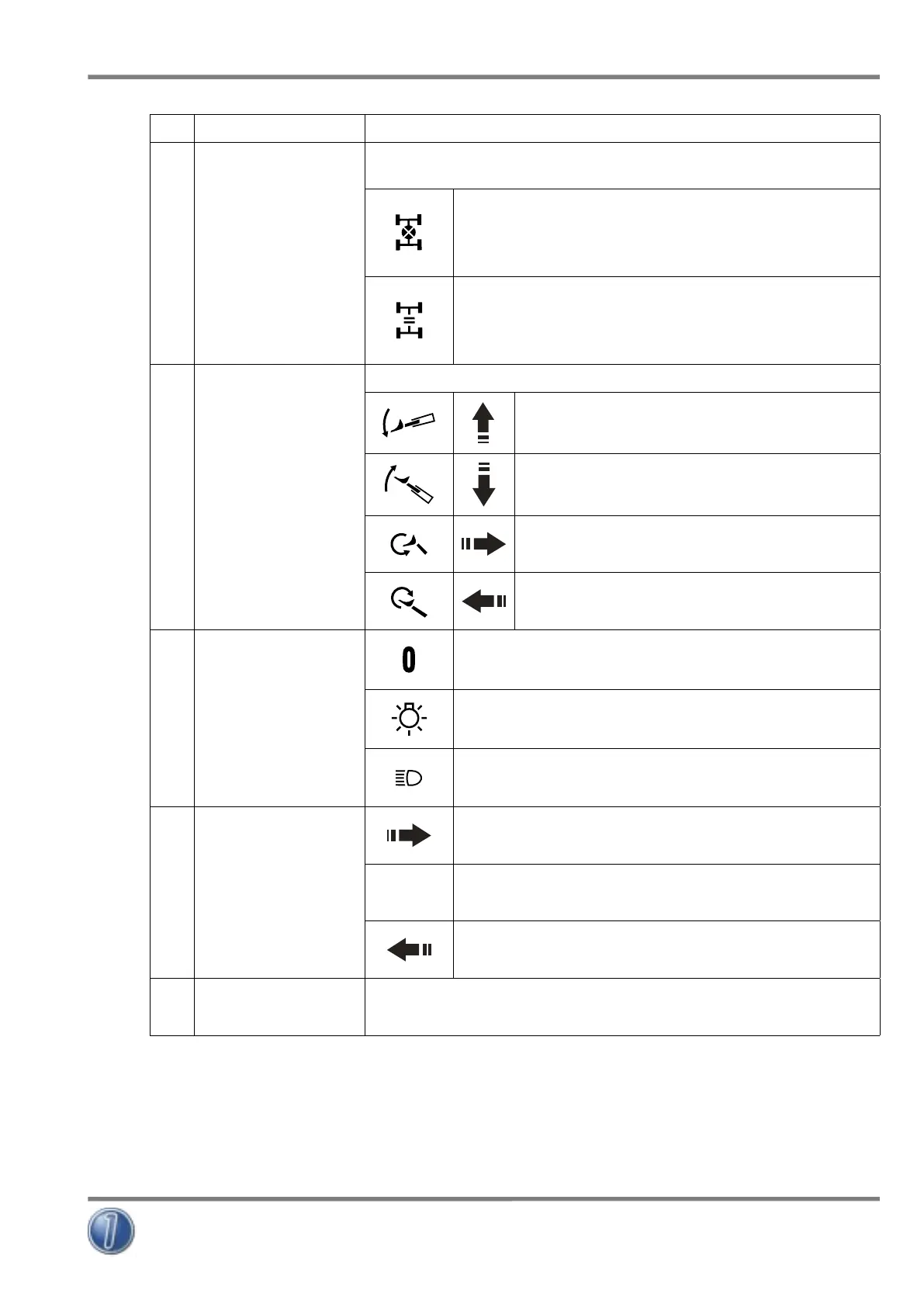

Ref. Name Function
1
Control knob DBS
(Dynamic Block System)
It allows two wheels (same side front and rear) to have the same speed. It can be inserted on the
machine in motion or stopped.
Knob rotated clockwise “+”: it turns the wheels all at the same speed and
increases the traction of the car especially on slippery surfaces.
Knob turned counterclockwise “-”: it rotates the wheels while steering and
avoid damaging the work surface (eg.: grass).
2 Multifunction joystick
It controls the movement of the lifting arm and of the quick coupler.
• Position “Forward” (at maintained action): it lowers the lifting arm.
• Position “Backward” (at maintained action): it raises the lifting
arm.
• Position “Right” (at maintained action): it inclines the quick
coupler forward.
• Position “Left” (at maintained action): it inclines the quick coupler
backward.
3
Three-position head
light switch (option)
• Position “0”: all lights off.
• Position “1”: position light on.
• Position “2”: low beam on.
4
Three-position turning
lights switch (option)
• Position “Right”: right turning light on.
● • Position “Central”: turning lights off.
• Position “Left”: left turning light on.
5 Counter It reports the actual hours of power on the control panel.
cont.
