Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
MultiOne SRL
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
14/70

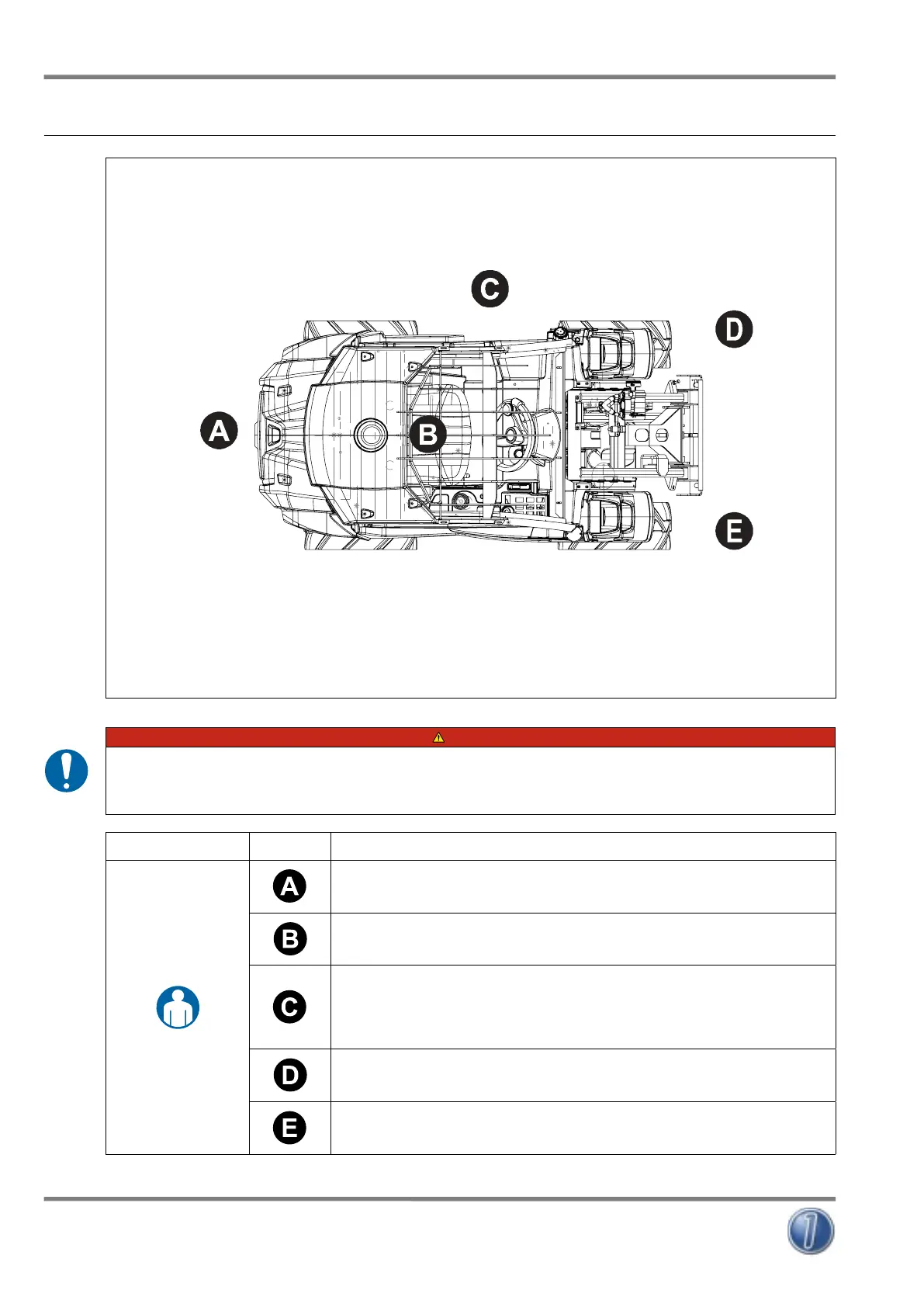

4.2 Seats taken by authorised operators
FIG. 2
LEFT SIDE
RIGHT SIDE
PLAN VIEW
REAR SIDE
FRONT SIDE
DANGER
THE OPERATOR IN CHARGE DURING THE WORKING PHASES MUST REMAIN ON BOARD OF THE MACHINE (SEAT B) AND ONLY
WITH THE MACHINE IN “SAFETY STATE” (SEE PAR. 9.2 AND PAR. 9.3) CAN OCCUPY THE OTHER WORKING PLACES SHOWN IN
FIG. 2..
Operator in charge Place Description of the operation
Standing on the back side to operate required maintenance operations on the machine and on
the engine (see chap. 9).
Seated at the driving seat in the right position of use and with the safety belt fastened during the
ordinary working (see par. 8.3).
Standing on the left side of the machine:
• for the refuelling (see par. 8.3.9);
• to connect/disconnect the battery (see par. 7.1);
• to get on to the driving seat (see par. 8.3.1).
Standing on the front left side of the machine to carry out the assembly and disassembly of the
attachment (see par. 8.3.4 and par. 8.3.5).
Standing on the right front side of the machine to carry out the assembly and disassembly of the
attachment (see par. 8.3.4 and par. 8.3.5).
TAB. 3
