11.4 Back-weights (option)
The back-weights set adds approximately 88 kg of weight to the rear end of the machine, increasing the overall working capacity
of the machine.
To install the back-weights proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Secure the back-weight bracket (FIG. 43 - Ref. 1) to the bumper using the bolts and washers (FIG. 43 - Ref. 2 and Ref. 3).
3) Using a lifting device, position one of the back-weights (FIG. 43 - Ref. 4) on the bracket.
4) Secure the back-weight using the bolt (FIG. 43 - Ref. 5).
5) Repeat the procedure for the second half of the back-weights (FIG. 43 - Ref. 6).
6) To remove the back-weights, reverse Steps 2) - 4).

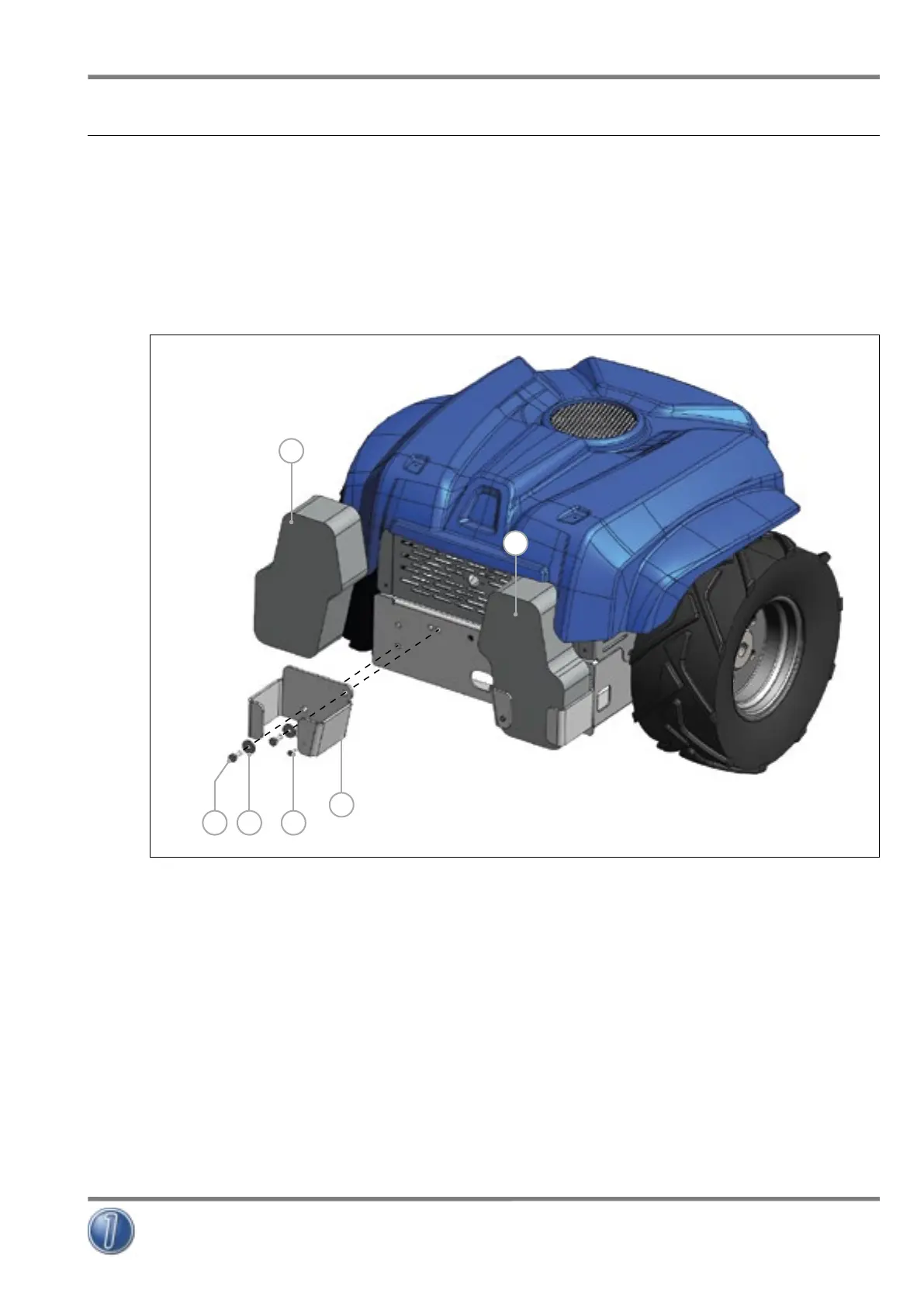

FIG. 43
1
3
52
4
6
