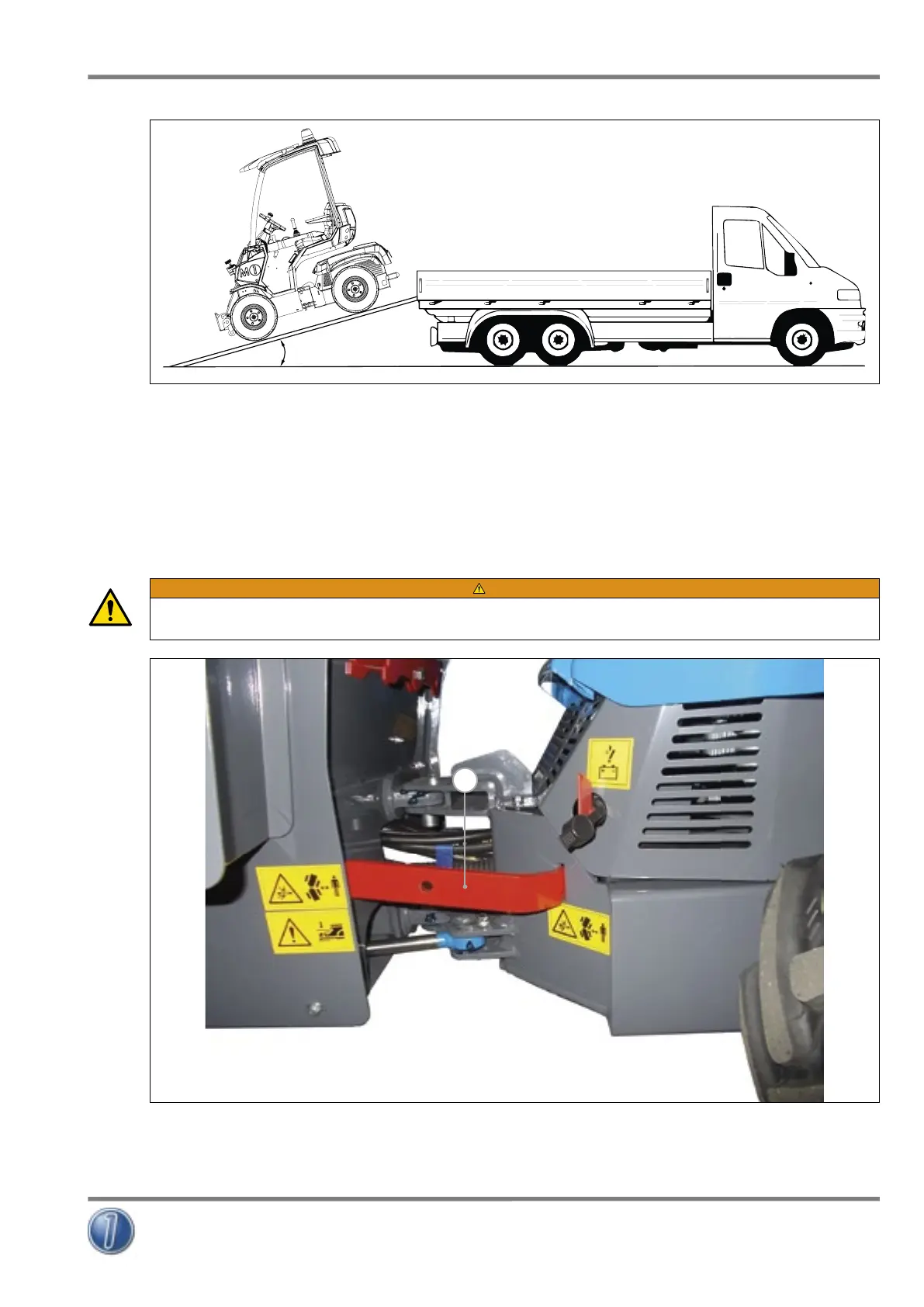

FIG. 14
MAX 30°
5.2.1 Installation procedure of the steering lock bracket
When you must use the bracket proceed as follows:
1) Lower the arm and load the machine on the vehicle.
2) Turn off the machine (see par. 8.3.7).
3) Take the locking bar from its position under the driver seat.
4) Insert the bracket (FIG. 15 - Ref. 1) into the two slits placed on the right side of the machine near the joint of the central steering.
To let the locking bar placed into the right position, gently move the steering wheel with engine off, starting from straight position.
WARNING
THERE ARE RESIDUAL RISKS N. 1 N. 2, N. 4 AND N. 5 (SEE PAR. 3.2).
FIG. 15
1
TRANSPORT AND HANDLING -5
