9 MAINTENANCE
9.1 General warnings
See par. 3.4.
9.2 Safety status of the machine
The machine in safety state when:
1) The machine is stopped not steered on firm and level ground.
2) The lifting arm is lowered and the eventual attachment on the ground.
3) The engine is off (see par. 8.3.7).
4) The controls are in the neutral position.
5) The parking brake is inserted (see par. 8.3.8).
6) Remove the key from the control panel and store it in a safe place.
9.3 Installation safety block on the lifting arm
When performing maintenance on the machine and you need to raise the lifting arm it is necessary to insert the retention bracket.
Proceed as follows:
1) Start on the machine (see par. 8.3.2).
2) Raise completely the lifting arm.
3) Turn off the machine (see par. 8.3.7) keeping the arm raised.
4) Remove the safety stop placed under driver seat (FIG. 30 - Ref. 1).
5) Insert the bracket to block the lifting arm (FIG. 30 - Ref. 2).
6) Fix the bracket with the appropriate knob (FIG. 30 - Ref. 3).
7) Lower slowly the lifting arm to bring the elements of the cylinder in support on the bracket.

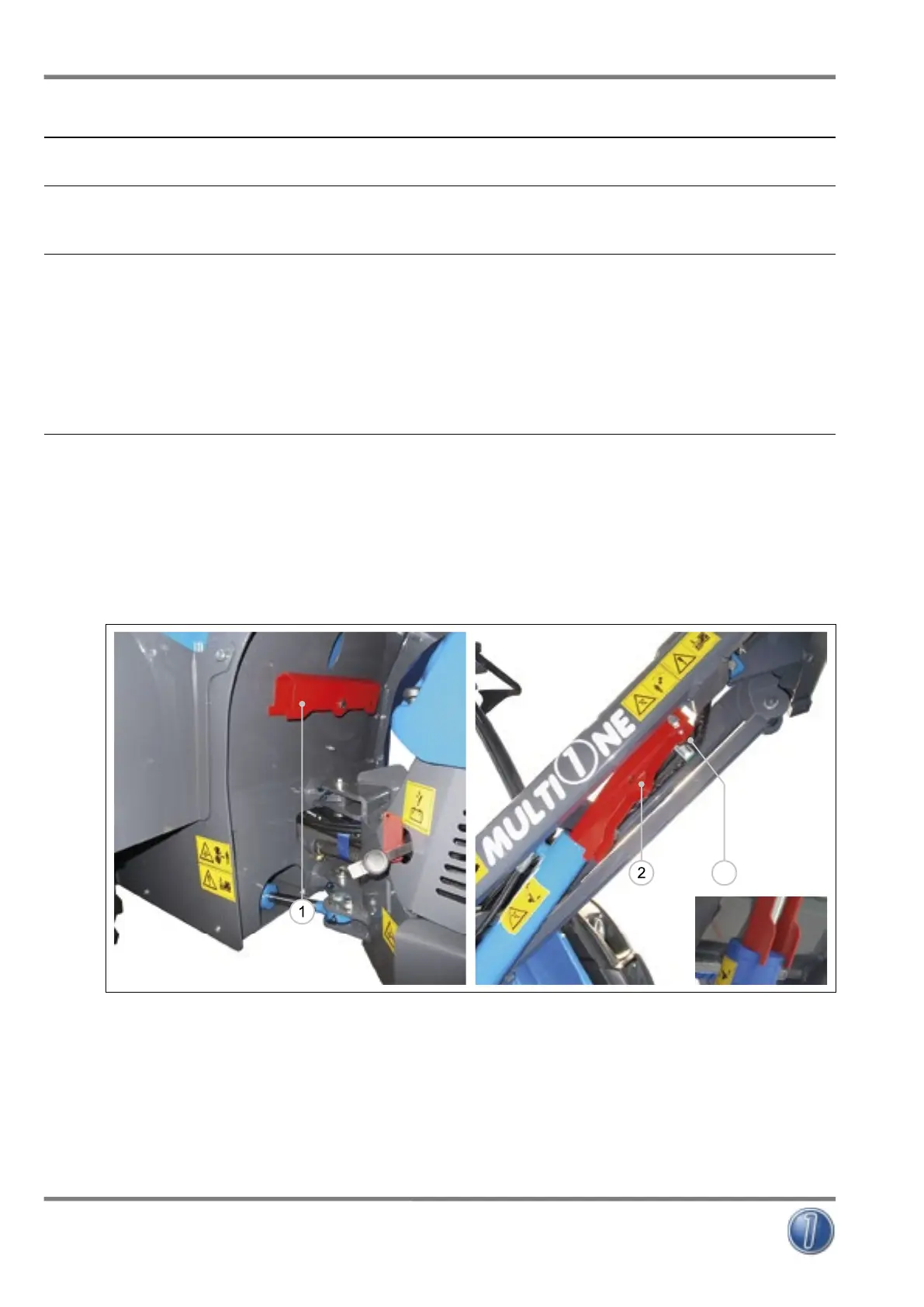

FIG. 30
