MultiOne 2 Series User Manual

Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
MultiOne SRL
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
16/70
Ref. Part Function
3 Control panel See par. 4.3.1.
4
Pedal control of hydraulic
flow of quick couplings
(maintained action).
• Pressed down (with the left foot): it actuated the operation of the attachment
(eg.: closing forage forks).
• Position “central”: off the interchangeable attachment.
• Lift upwards (with the left foot): it reverses the operation of the attachment
(opening forage forks).
5 Proportional pedal reverse
Pressed down (with the right foot) it allows backward movement of the machine
and increases the speed in proportion to the applied pressure produced on the
same.
6 Proportional pedal forward
Pressed downwards (with the right foot): allows the forward movement of the
machine and increases its speed in proportion to the pressure exerted on the
same.
TAB. 4

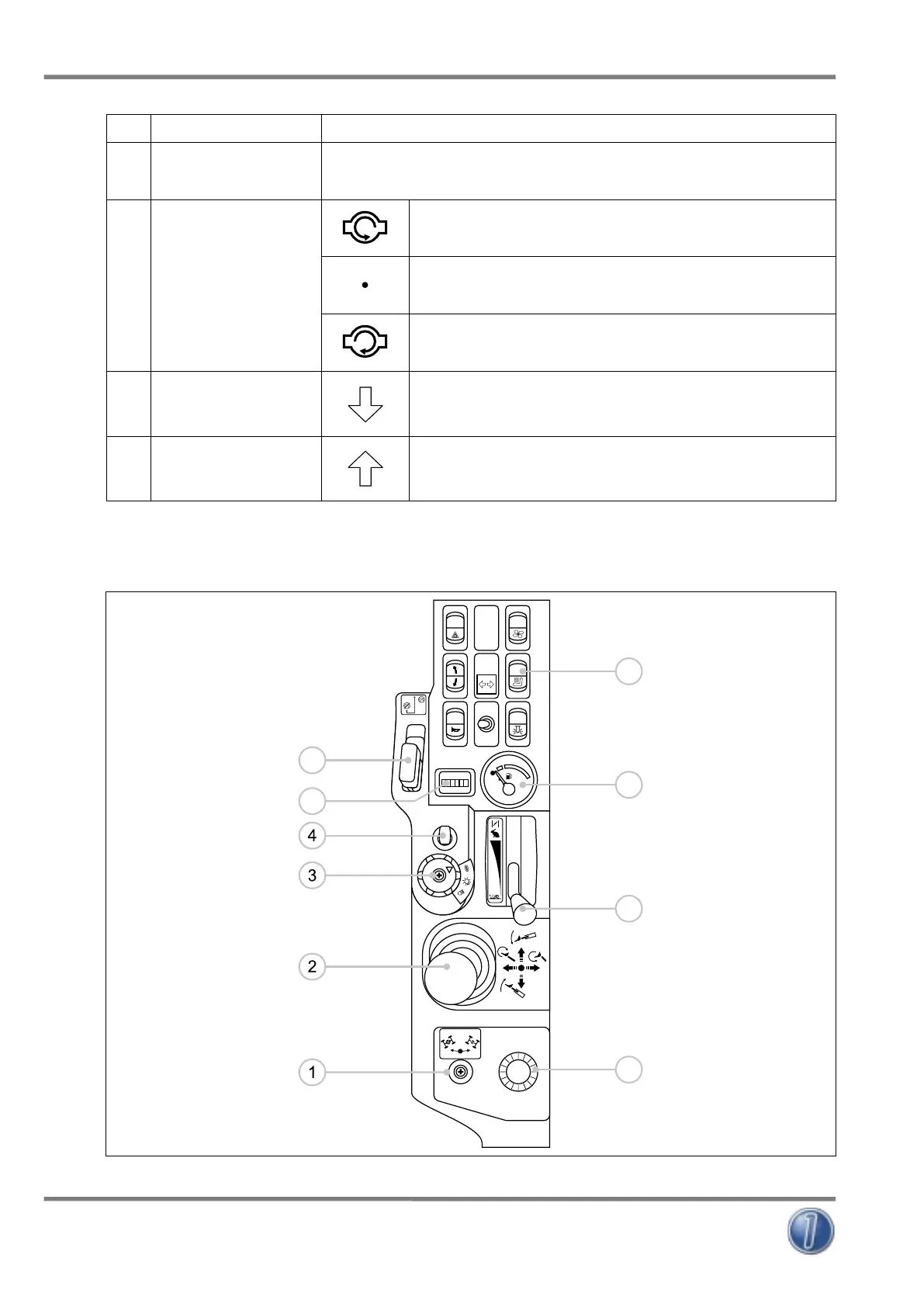

4.3.1 Control panel
FIG. 4
5
7
8
9
10
6
