Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
MultiOne SRL
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
24/70

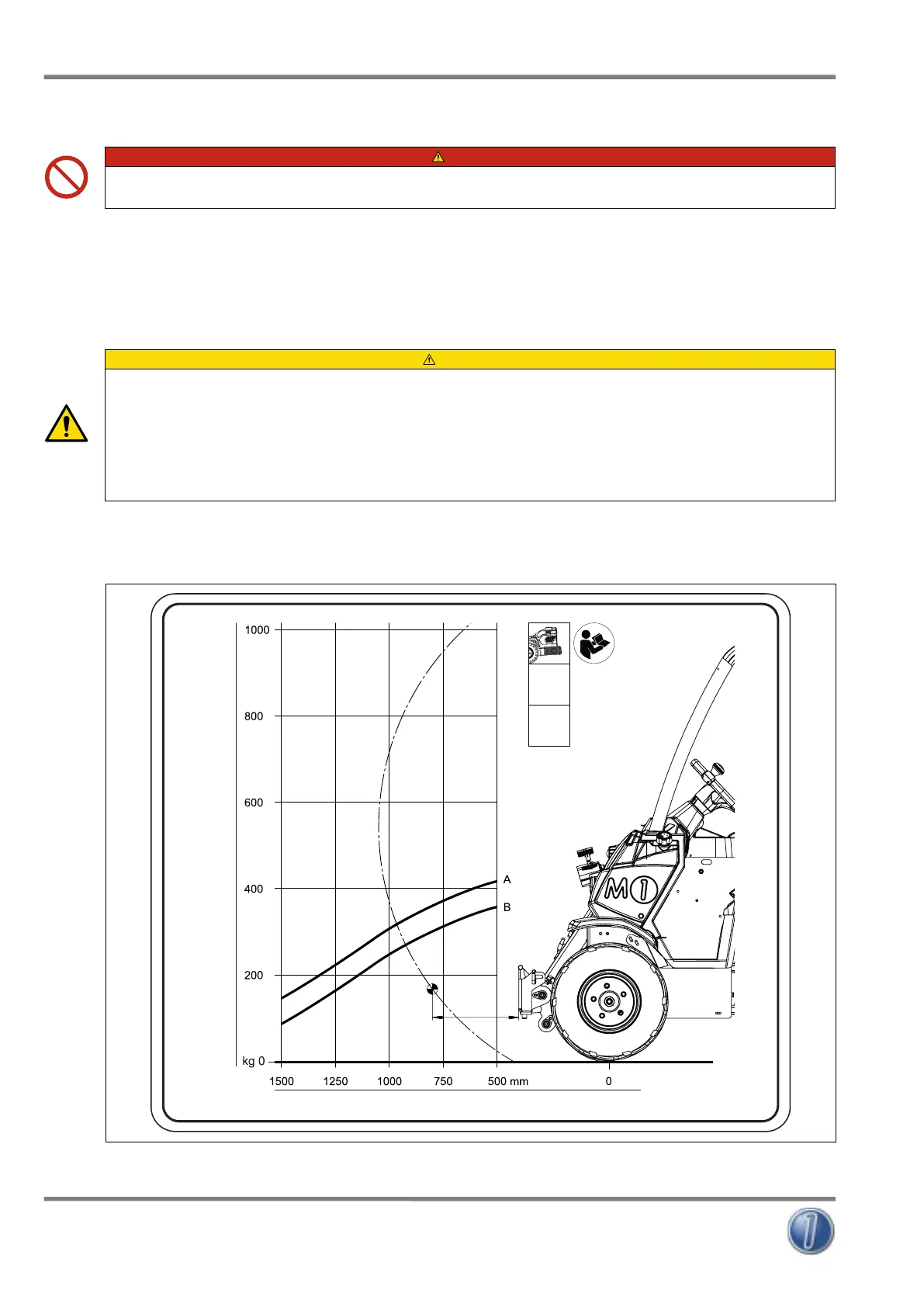

4.5.2 Load diagram
DANGER
IT IS FORBIDDEN TO EXCEED THE LOAD CAPACITY OF THE MACHINE (SEE FIG. 8).
The load diagram shown in FIG. 8 is obtained in accordance with standard ISO 14397-1:2007, and shows the load capacity of the
machine in the different position of the lifting arm.
The upper curve (FIG. 8 - Ref. A) is referred to the machine with back-weights of 88 kg.
The lower curve (FIG. 8 - Ref. B) is referred to the machine without back-weights.
The load diagrams are intended with the machine stopped in the position of maximum steering, placed on solid and flat surface, with
75 kg. operator in the driving seat (see par. 4.2) and equipped with tyres Tractor model (see par. 4.5.1).
ATTENTION
MOVING THE LOAD BARYCENTRE DETERMINES THE CHANGE OF LIFTING CAPACITY OF THE MACHINE.
THE LIFTING INDICATED CAPACITY IS COMPREHENSIVE OF THE WEIGHT OF THE ACCESSORY USED, SO THE NET LIFTING IS
THE VALUE SHOWN IN THE GRAPHIC MINUS THE ACCESSORY WEIGHT.
WHEN WORKING ON UNEVEN OR SOFT GROUND WITH OBSTACLES IT IS COMPULSORY TO KEEP THE ATTACHMENT AS NEAR AS
POSSIBLE TO THE GROUND AND REDUCE THE LOAD UNDER THE MACHINE’S LIFTING CAPACITY. THIS WILL MAKE THE MACHINE MORE
STABLE.
In the diagram the load barycentre is reported at 400 mm from the universal quick attaching plate, in accordance with standard
ISO 14397-1:2007. It can be noted that during movement of the arm the barycentre changes compared to the starting position and
consequently the load capacity of the machine varies.
FIG. 8
60 50 40 30 20 in 0
441
Lbs 0
882
1323
1764
2204
400 mm
15.7 in
2 series
A = machine with 88 kg (194 lbs) rear backweight
B = machine without backweight
A
88 kg
194 lbs
B
0 kg
0 lbs
C042437
2 SERIES
4- DESCRIPTION OF THE MACHINE
