MultiOne 2 Series User Manual

Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
23/70
MultiOne SRL
ATTENTION
TECHNICIAN DATA SUBJECT TO CHANGE WITHOUT NOTICE.

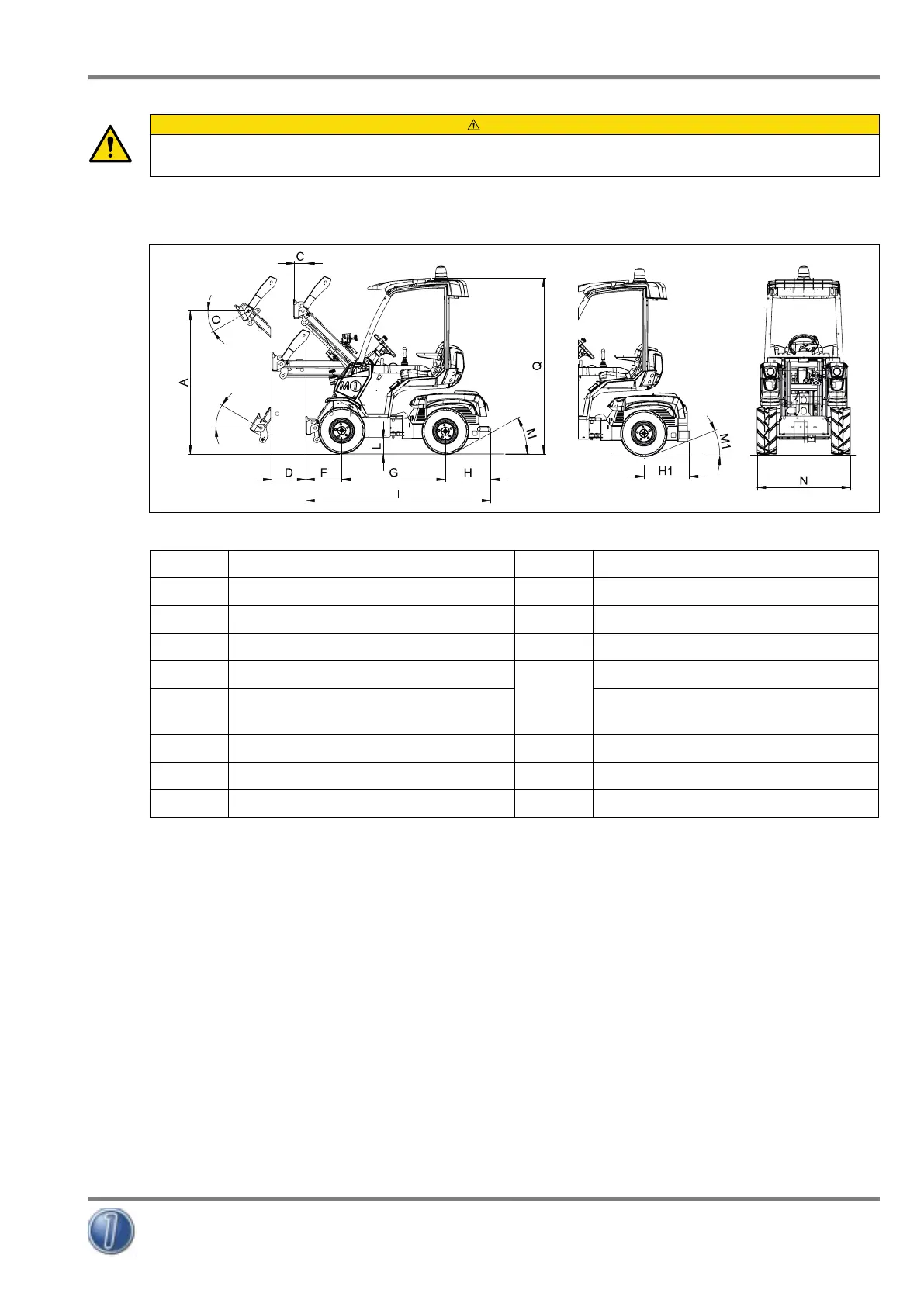

4.5.1.3 Dimensions
FIG. 7
P
Ref. 2.3 Ref. 2.3
A 1584 mm / 62.3 in L 171 mm / 6.7 in
C 125 mm / 4.9 in M 29°
D 375 mm / 14.7 in M1 21,5°
F 398 mm / 15.6 in
N
1035 mm / 40.7 in
G 1147 mm / 45.1 in
NOTE: This dimension may change
depending on the tyres installed.
H 504 mm / 19.8 in O 40°
H1 504 mm / 19.8 in P 39°
I 2049 mm / 80.6 in Q 1948 mm / 70.7 in
TAB. 12
DESCRIPTION OF THE MACHINE -4
