Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
MultiOne SRL
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
54/70

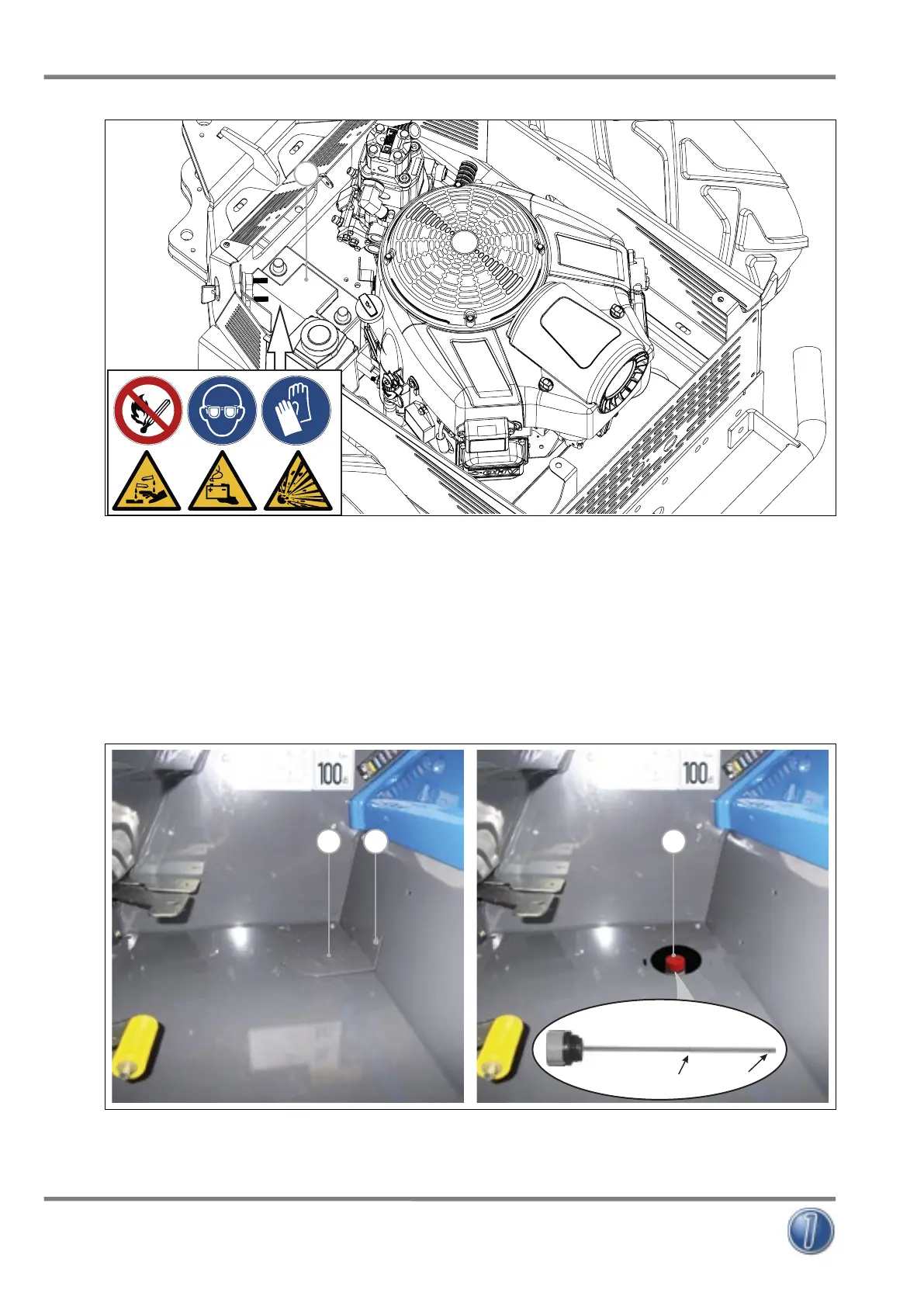

FIG. 32
1
9.7.5 Hydraulic oil level
To check the hydraulic oil level proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Unscrew the screw (FIG. 33 - Ref. 2) to open the cover (FIG. 33 - Ref. 1) located in the footrest.
3) Remove the cap of the hydraulic oil tank (FIG. 33 - Ref. 3).
4) Using the dip stick, check the hydraulic fluid level in the tank. The level should be in the normal operating range between the two
notches on the dip stick.
5) If needed, add the appropriate type of hydraulic fluid: 0280 PAKELO HYDRAULIC EP AL ISO 46.
FIG. 33
2
1
MAX
MIN
3
9- MAINTENANCE
