8.4.4 Emergency exit of the cabin
In case of need to open the emergency door on the machines supplied with cabin proceed as follows:
1) Pull the red ring on the handle to open of the Right window of the machine and identified by a special adhesive
(FIG. 27 - Ref. 1).
2) Push out the Right window to open fully.
8.4.5 Block machine with the lift arm raised
DANGER
ATTENTION: THIS IS AN EMERGENCY PROCEDURE AND THEREFORE THE AREA MUST BE CONTROLLED AND FORBIDDEN.
In case of malfunction of the machine with lifting arm raised, it is not safe lower it because there would be a considerable imbalance
of the machine. As it is a multifunction machine, the risk of tipping the machine would be relevant and unmanageable.
To return the attachment and the eventual load on the ground proceed as follows:
1) Insert the parking brake.
2) Remove the key from the control panel.
3) Secure the area around the machine.
4) Using a special machine (eg. forklift) download the suspended load.
5) Lower the lifting arm.
8.4.6 Towing the machine on
WARNING
IT IS FORBIDDEN TO TOW THE MACHINE OFF BY ANY MEALS OF TRANSPORT.
If the machine remains locked, it is possible to tow it for a short trip (MAX. 20 mt), only if on, by a suitable towing vehicle.
To make this proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Connect to the attachment points of the machine (FIG. 28 - Ref. 1) the ropes and/or chains of towing.
3) Turn on the machine (see par. 8.3.2) and, as far as possible, facilitate towing operations.

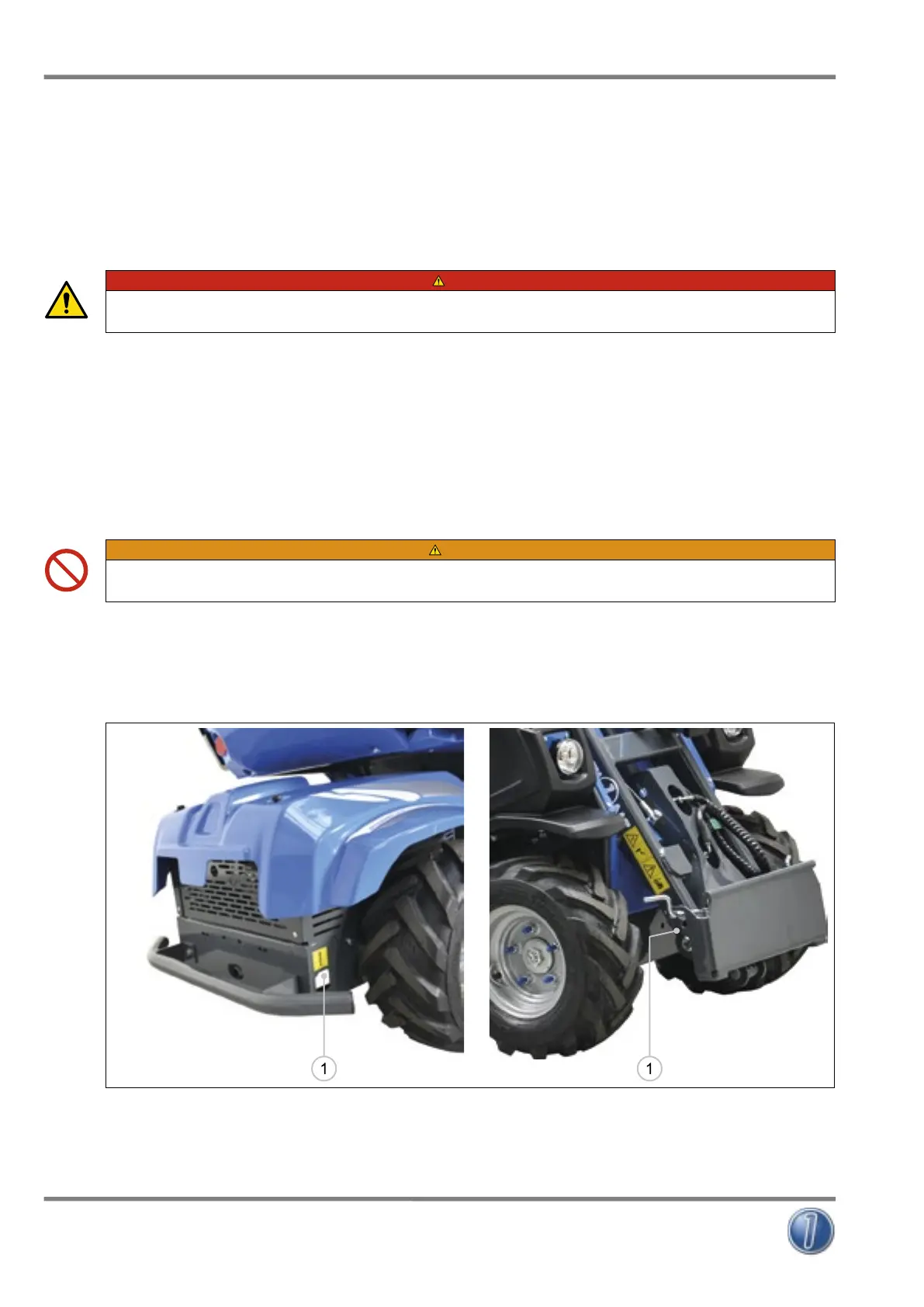

FIG. 28
