9.7.9 Fuses
ATTENTION
IF A FUSE BLOWS, DETERMINE THE CAUSE BEFORE REPLACING IT WITH A NEW ONE.
To replace the fuses proceed as follows:
1) Remove the cover located on the right inner side of the machine (see FIG. 37).
2) Replace the blown fuses with new ones with the same amperage rating (which is shown on the top of the blown fuse).
3) Reinstall the cover.
Standard Fuses
Ref. Function Rating
1 Dashboard power supply 15A
2 Oil cooler - Front electric plug 20A
3 Working light - Heating system - Horn 15A
4 Cabin light 5A
5 Optional 3A
6 Optional 3A
7 Road lights kit 15A
8 Optional 20A
TAB. 22

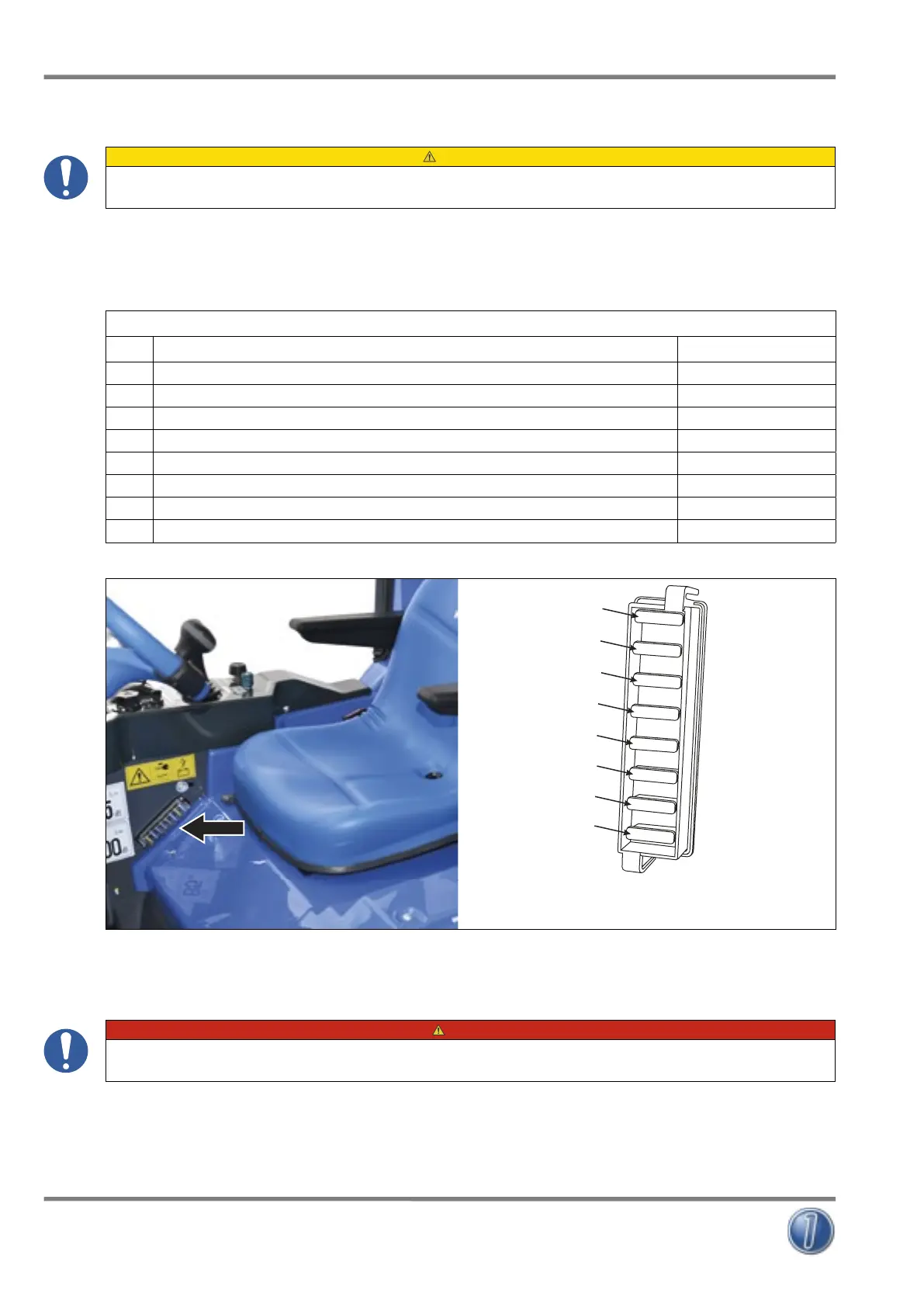

FIG. 37
5
15
3
2
3
4
5
6
7
8
1
15
20
3
15
20
STANDARD
FUSES
9.7.10 Greasing points
DANGER
IT IS MANDATORY TO INSTALL THE ARM SAFETY BLOCK WHEN PERFORMING MAINTENANCE WITH THE ARM RAISED.
The FIG. 38 shows the location of greasing points.
Clean the greasing points with a cloth and apply grease type 0088 PAKELO BEARING EP GREASE NLG I 0.
