Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
21/70
MultiOne SRL
4.4 Shelters and protection devices

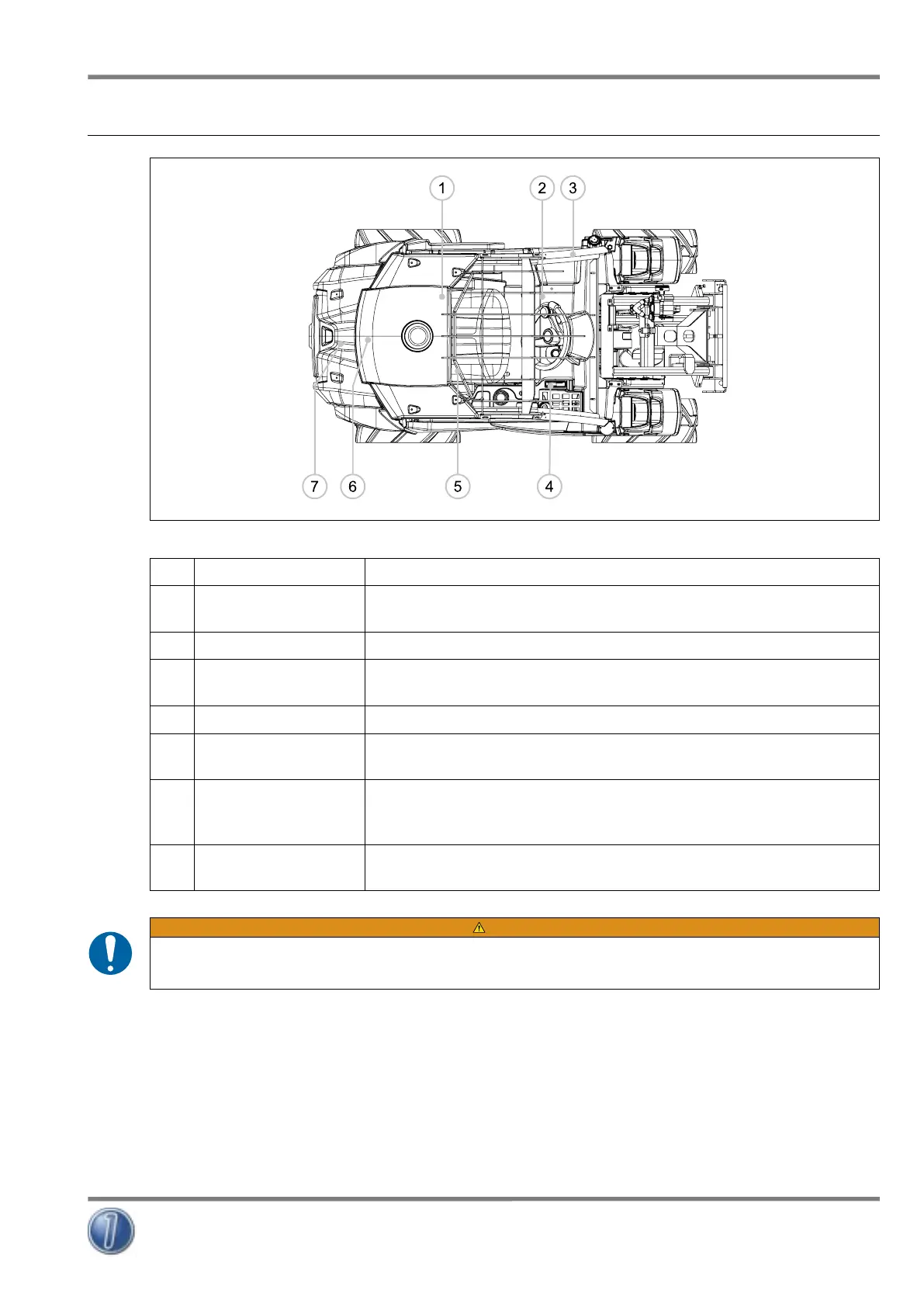

FIG. 6
Ref. Device Function
1 Safety belt
It is a retractor pretensioned belt type 2-lap anchor points, installed on the driving seat, which
serves to retain the assigned operator on the driving seat. Its use is compulsory.
2 Non-slip strip Placed on footboards avoid slipping of the feet.
3 ROPS
Metal structure that protects the operator in charge sitting in the driving seat, in case of rolling over
of the machine “according to standard EN ISO 3471:2008”.
4 Parking brake Locks the machine during the break and parking of this.
5 FOPS
Structure that protects the assigned operator sitting at the driving seat in case of fall of objects
(see par. 6.3.1) “according to standard EN ISO 3449:2008”.
6
Lock lift arm bracket and
steering lock bracket
The lock lift arm bracket allows to lock the lift arm in a raised position to operate maintenance
(see par. 9.3). The steering lock bracket allows to lock the machine avoiding that steers accidentally
during the transport (see par. 5.2.1).
7 Pressure relief valves
They are hydraulic valves installed in the hydraulic circuit of the machine and serve to ensure that
the working pressure does not exceed the expected values (see par. 8.4).
TAB. 8
WARNING
IT IS COMPULSORY, IN CASE OF FIRE, TO SUBSTITUTE ALWAYS THE ROPS, THE FOPS, AND SAFETY BELTS AND THEIR
MOUNTING BOLTS.
DESCRIPTION OF THE MACHINE -4
