9.7.6 Hydraulic oil filter change
To change the hydraulic oil filter proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Remove the cover of oil tank cap (see par. 9.7.5).
3) Remove the footrest (FIG. 34 - Ref. 1) by loosening the screws that secure it to the frame (see FIG. 34).
4) Remove the oil filter cover (FIG. 34 - Ref. 2) by loosening the screws that secure it.
5) Remove the spring (FIG. 34 - Ref. 5), and the filter element (FIG. 34 - Ref. 6) from the plastic sleeve (FIG. 34 - Ref. 7).
6) Replace the filter element with a new original part.
7) Reinstall the spring and inspect the filter cover O-ring for any signs of wear or damage. This O-ring is located in a groove at the
top of the filter body (FIG. 34 - Ref. 4). Replace the O-ring in case of wear or damage.
8) Reinstall the filter cover (FIG. 34 - Ref. 2) and secure it.
9) Check the hydraulic oil level and, if needed, proceed to refill (see par. 9.7.5).
10) Reinstall the footrest and the oil tank cap cover.
ATTENTION
THE USED FILTER MUST BE DISPOSED OF IN ACCORDANCE TO THE LAWS IN FORCE IN THE COUNTRY WHERE THE MACHINE
IS USED.

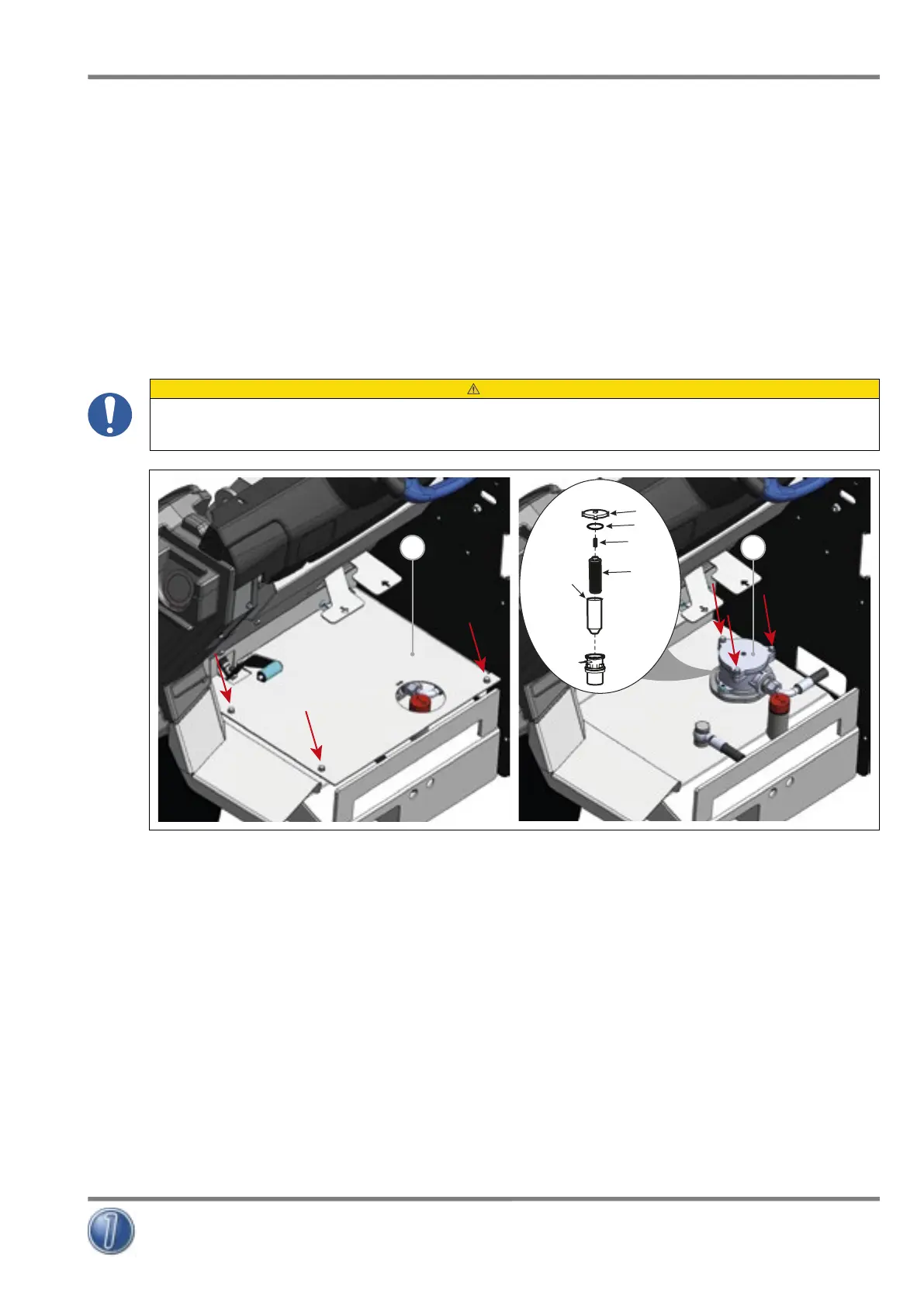

FIG. 34
3
4
5
6
7
1 2
MAINTENANCE -9
