Self-moving compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 2 Series
MultiOne SRL
Instruction manual (Translation of original instructions)
CM170003EN - 16.02.17 - 04 (11.07.18)
44/70

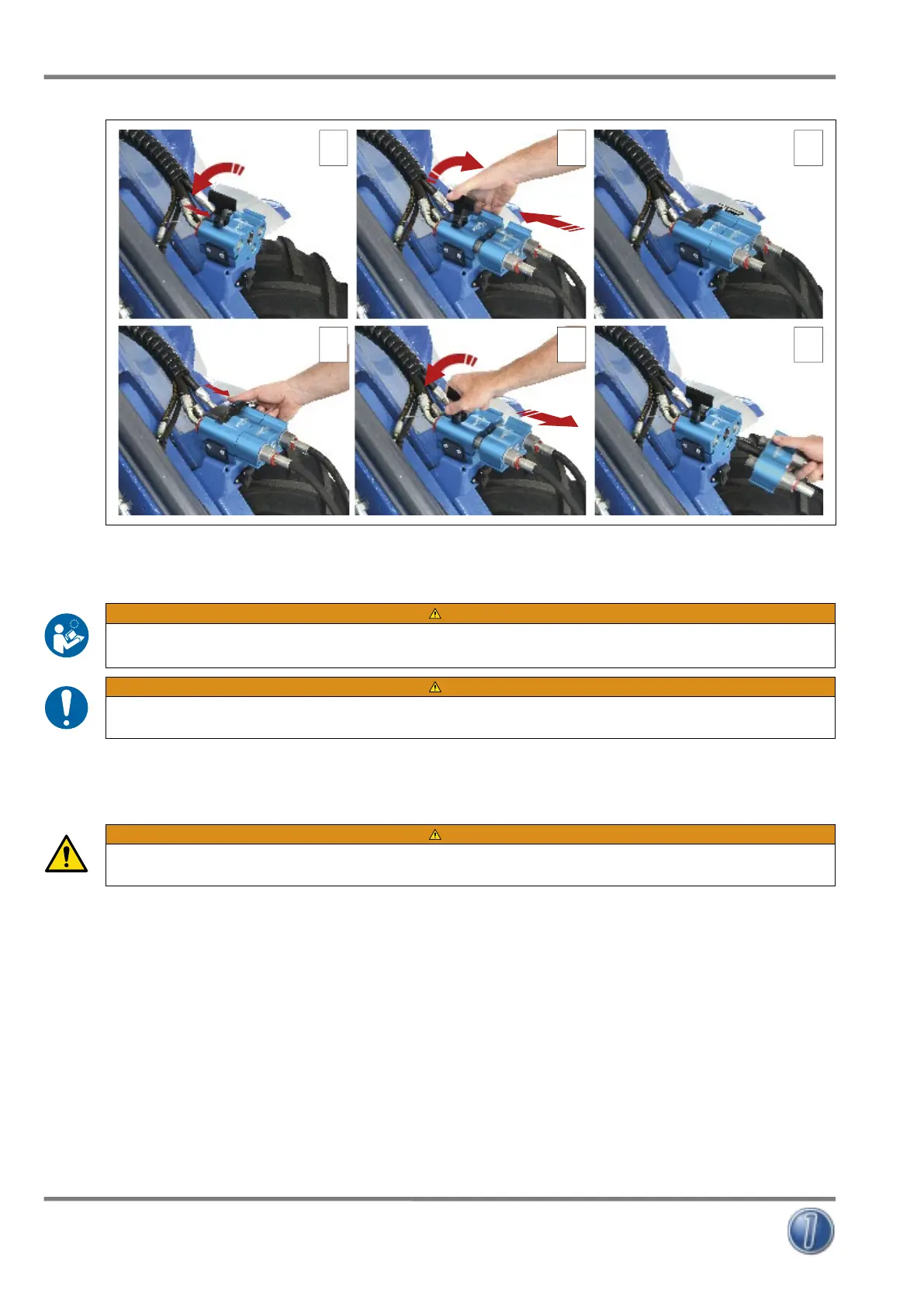

FIG. 24
A B C
D E F
8.3.4.3 Electrical connection of the attachment (if necessary)
WARNING
BEFORE MAKING ELECTRICAL CONNECTIONS READ THE ATTACHMENT INSTRUCTION MANUAL.
WARNING
THE CONNECTIONS MUST BE CARRIED OUT AFTER MECHANICALLY ATTACHED ATTACHMENT.
Insert the plug of attachment on the machine socket (FIG. 23 - Ref. 4).
8.3.5 Disassembly of the attachment
WARNING
THERE ARE RESIDUAL RISKS N. 1, N.2 AND N.3 (SEE PAR. 3.2).
To disassembly the attachment proceed as follows:
1) Place the attachment on firm ground.
2) Turn off the machine (see par. 8.3.7).
3) Operate the control pedal of the flow of the quick couplings both pressing and lifting it upward.
8- OPERATION
